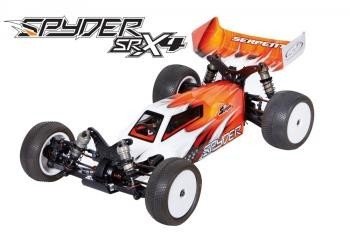

Spyder SRX4 Buggy 4wd 1/10 supreme quality Race level 1/10 scale 4wd buggy. Ready for the racetracks in dirt, clay, grass, astro or carpeting.
Requirements:
- Automobile: Spyder SRX-4
- Course: 1/10 buggy 4wd
- Degree: Competition
- Included: battle framework, human body, rear wing, rims
- Not included: tyres, tyre-inserts, electronic devices
Features:
- Carbon dietary fiber 2.5mm framework with composite part plates.
- Big bore 12mm hard coated shock-absorbers.
- Double belt-driven drive system, with captured long front side gear and available part belt.
- Compact and light front side and back gear differentials with composite front side pulley and rear difficult anodized aluminum diff gear.
- Slipper clutch with friction pads and solid aluminum front side locked clicker drive.
- Durable spring metal drive shafts, wheel axles and drive cups.
- Carbon dietary fiber surprise towers front and backside.
Front suspension system
Strong composite lower suspension system system arms with mounting spots the optional anti-roll bar. Aluminum suspension system brackets with inserts to alter set-up. Tiny but effective composite front side bumper to safeguard leading end. The angled front part incorporated kick up permits smoother landings. The composite front part diff instance is an extremely strong affair to set up the diffs, front surprise tower, primary spline and framework too.
Steering obstructs and c-hubs
The composite steering obstructs and c-hubs provide a variety of set-ups with inserts and shaped changeable Ackermann dishes that all 3 composite people are included.
Back suspension system system
The rear end shares numerous elements utilizing the 2wd MM Spyder, that will be good if you additionally run 2wd. Additionally here an extremely sturdy structure aided by the diff-case as base to install diffs, shock tower, framework and motor mount to. Strong composite lower hands. Suspension brackets in aluminum also right here with inserts to try out with set-up. The beefy composite uprights provide 3 setup place in the most notable and inserts in underside.
Straight back wing and wing owner
The strong clear polycarbonate wing is set up to your nylon back wing holder. The wing angle are changed using the included wing angle spacers: 0, 2, 4, 6, and 8 angle are typical included.
Anti-roll club
leading part and straight back allow mounting anti-roll pubs. As standard Serpent just materials the trunk ball-raced anti-roll bar, as that will be used more commonly.
Motor mount
The engine is installed securely on thick 3mm cnc machined 7075 T6 alu motor plate, which doubles as cooler. Machined slots enable movement of the motor to fine-tune the pinion/spur gap. The motor owner also holds the shafts the component gear system, and enables mounting.
Body mounts
The strong composite body mounts in many cases are located in situation utilized. As alternative velcro could be put into the medial side associated with the framework stiffeners.
Body
your body is made in the same Avenger design as the 2wd buggy and stocks its appearance and compact shape. Supreme quality clear polycarbonate can be used. The body comes with a masking sheet.
Back wing and wing owner
The strong clear polycarbonate wing is installed towards the nylon straight back wing owner. The wing angle could be changed utilizing the included wing angle spacers: 0, 2, 4, 6, and 8 angle are included.
Rims
Durable Serpent designed wheel are found in white color for front side and back (tires and inserts are not included).
Clicker system
Standard inside the automobile the solid clicker can be used for permanent 4wd, which for high grip conditions is most beneficial to make use of. The optional clicker system calls for couple of extra parts only and might be used well in medium and reduced hold conditions, allowing the best tires to spin more free and produce more corner entry price as required.
Slipper clutch
This light slipper-clutch device, is a springtime packed 3 pad variation, enable to manage the vitality distribution.
Shock towers
excessively durable 4mm dense carbon dietary fiber front side and straight back shock towers with 4 jobs for surprise angle.
Shock stays
extremely durable aluminum surprise remains coupled with a tiny bushing and nylon flanged nuts.
Central spline
The composite main spline where in fact the front side gear operates, creates a tremendously strong framework stiffener, appropriate in the heart regarding the automobile. It protects leading gear well against debris and insures no gear can skip.
Battery and continues to be
The saddle pack battery pack (perhaps not included) is kept in place by 2 easy to use composite battery-covers. Little machined aluminum peanuts are included to keep them setup.
Electronics
the center of the vehicle allows many area to mount the most used speedo and receivers, plus the transponder. The auto also enables room enough allow nice routing of your cables. The shorty kind servo is mounted on included composite appears. Different spacers and horns are included to match the absolute most utilized servo brands.
Drivetrain
The double belt system is incredibly durable and light. The Kevlar reinforced front gear is wholly captured, therefore well protected against debris which increases life. The Kevlar reinforced component belt is available due to the location, as well as the closely fitted human body will avoid debris from keeping the apparatus. The belts work on accuracy machined pulleys. The leading gear stress could possibly be changed with eccentric inserts.
Gear-diffs
both lightweight oil-filled gear differentials front side and back. These super smooth units are light and compact and extremely durable. The differentials may also be simple to construct and they are often really low maintenance. The diff-inserts to the circumstances enable to you run the lowest, mid or high position which alters hold.
A corner gear diff has a tough coated aluminum gear for durability.
Drive shafts
Serpent springtime steel CVD drive shafts and wheel axles for durability. Also the lightened differential drive cups may be found in springtime metal.
Suspension pins
manufactured in durable and strong Serpent hardened steel. Captured devices with rounded end which turn in small ball-cups inside suspension brackets, so that it?s super free.
Shocks
Serpent hard coated shock figures and surprise tops for super smooth procedure and durability. 3.2mm shafts with brand new X-ring package and molded pistons. The shocks works extremely well either emulsion or membrane layer setup. The shock springs have ground concludes, checked and matched for perfect equal procedure. Ride height could be simple set utilizing the threaded collars which have o-rings inside to stay in destination.
Steering
The fully ball raced angled twin axis steering system with built-in servo saver function, offers a nearly perfect Ackermann effect. Ackermann are set with tiny dishes which mount towards the steering hands. 3 types included to play with. The angled system will avoid bump steer.
Framework
The light 2.5mm carbon fiber framework gets the right flex along with composite side-guards / framework stiffeners and center spline. All holes are countersunk to own a fully flat bottom area. Holes are centered and symmetrical for additionally flex.
The entire layout offers a 42/58, 44/56 fat stability. Optional weights and metal elements enables you to influence that.
