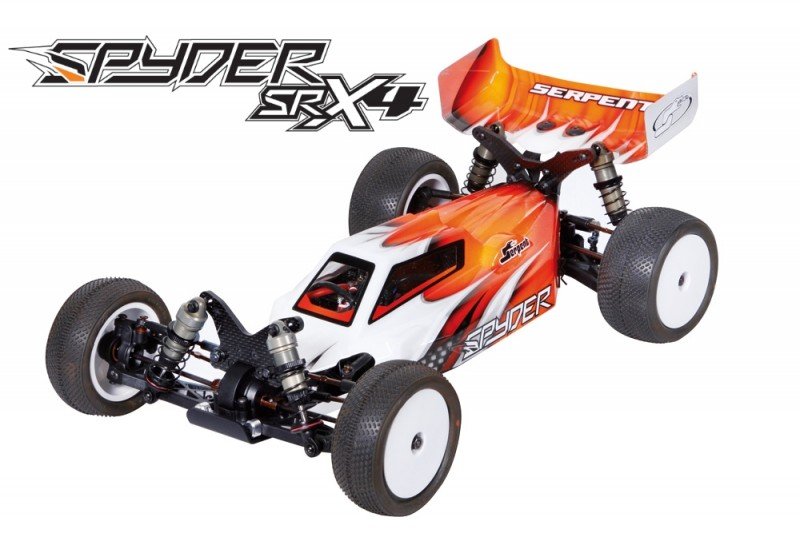

Spyder SRX4 Buggy 4wd 1/10 with alu framework excellent Race level 1/10 scale 4wd buggy. Prepared for the racetracks in dirt, clay, grass, astro or carpeting.
Specs:
- Automobile: Spyder SRX-4
- Class: 1/10 buggy 4wd
- Degree: Competition
- Included: battle framework, human body, straight back wing, rims
- Perhaps maybe not included: tyres, tyre-inserts, electronic devices
Features:
- Aluminium 7075 T6 hardcoated 2.5mm framework with composite part dishes
- Big bore 12mm difficult coated shock-absorbers
- Dual belt-driven drive system, with captured very long front gear and available component gear
- Compact and light front and rear gear differentials with composite front part pulley and back difficult anodized aluminum diff gear
- Slipper clutch with friction pads and solid aluminum front side locked clicker
- Durable springtime steel drive shafts, wheel axles and drive cups
- Carbon soluble fbre shock towers front part and back
Central spline
The composite primary spline in which the front gear runs, produces a tremendously strong framework stiffener, appropriate in the center of the auto. It protects the best gear well against debris and insures no gear can skip.
Battery and stays
The chair pack battery (maybe not included) is held in place by 2 user friendly composite battery-covers. Tiny machined aluminum peanuts are included to help keep them in position.
Electronic Devices
The biggest market for the vehicle enables numerous space to mount the most famous speedo and receivers, combined with the transponder. The vehicle in addition enables enough space allow good routing of the cables. The shorty type servo is mounted on built-in composite stands. Various spacers and horns are included to match the most used servo brands.
Drivetrain
The double gear system is extremely durable and light. The Kevlar reinforced front gear is fully captured, therefore well protected against debris which increases life. The Kevlar reinforced side gear is available because location, plus the closely fitted human anatomy will avoid debris from pushing the gear. The belts run using precision machined pulleys. Leading gear tension is changed with eccentric inserts.
Gear-diffs
the two lightweight oil-filled gear differentials front part and rear. These super smooth units are light and compact and incredibly durable. The differentials may incredibly simple to build and they are low upkeep. The diff-inserts inside circumstances help for your requirements run a minor, mid or high destination which alters grip.
The trunk gear diff has a tough coated aluminum gear for durability.
Drive shafts
Serpent springtime metal CVD drive shafts and wheel axles for durability. Additionally the lightened differential drive cups have been in springtime metal.
Suspension system pins
manufactured in durable and strong Serpent hardened metal. Captured units with curved end which turn in small ball-cups in the suspension system brackets, in order that it?s super free.
Shocks
Serpent hard coated shock systems and shock tops for super smooth procedure and durability. 3.2mm shafts with fresh X-ring package and molded pistons. The shocks may be used either emulsion or membrane layer setup. The surprise springs have really ground ends, checked and matched for perfect equal procedure. Ride height may be effortless set because of the threaded collars which may have o-rings inside in which to stay position.
Steering
The completely ball raced angled double axis steering system with built-in servo saver function, provides a nearly perfect Ackermann impact. Ackermann could be set with small meals which mount toward steering hands. 3 types included to try out with. The angled system will avoid bump steer.
Chassis
The Aluminium 7075 T6 hardcoated 2.5mm framework gets the right flex with the composite side-guards / framework stiffeners and center spline. All holes are countersunk to possess a totally flat bottom surface. Holes are focused and symmetrical also for flex.
The entire design gives a 42/58 or 44/56 weight stability. Optional loads and brass parts might be regularly influence that.
Shock towers
really durable 4mm dense carbon soluble fiber front side and right back surprise towers with 4 functions for shock angle.
Shock stays
Very durable aluminum surprise remains along with a tiny bushing and nylon flanged nuts.
Slipper clutch
This light slipper-clutch item, is a springtime packed 3 pad variation, enable to manage the ability distribution.
Front suspension system
Strong composite reduced suspension system hands with mounting spots the optional anti-roll club. Aluminum suspension system brackets with inserts to improve set-up. Tiny but effective composite front side bumper to guard leading end. The angled front side part built-in kick up enables smoother landings. The composite front diff case is a tremendously strong event to put in the diffs, front shock tower, primary spline and framework too.
Steering obstructs and c-hubs
The composite steering blocks and c-hubs offer many different set-ups with inserts and shaped changeable Ackermann meals which all 3 composite ones are included.
Back suspension system
The trunk end stocks many components using the 2wd MM Spyder, that is nice if you also operate 2wd. Additionally here a tremendously sturdy framework using the diff-case as base to mount diffs, surprise tower, framework and engine mount to. Strong composite reduced arms. Suspension brackets in aluminum additionally here with inserts to flake out and play with set-up. The beefy composite uprights offer 3 setup place inside top and inserts in underneath.
Right back wing and wing owner
The strong clear polycarbonate wing is set up towards the nylon right back wing owner. The wing angle are changed using the included wing angle spacers: 0, 2, 4, 6, and 8 angle are included.
Anti-roll club
Both front part and rear allow mounting anti-roll bars. As standard Serpent only materials the rear ball-raced anti-roll club, as that is used more commonly.
Engine mount
The motor is installed firmly towards the thick 3mm cnc machined 7075 T6 alu engine dish, which doubles as cooler. Machined slots enable movement of engine to fine-tune the pinion/spur area. The motor holder also holds the shafts associated with the side gear system, and permits mounting.
Body mounts
The strong composite body mounts are often situated in situation used. As alternate velcro may be added to along side it of this chassis stiffeners.
Body
the body is made in identical Avenger design due to the fact 2wd buggy and shares its appearance and compact type. High quality clear polycarbonate is required. Your body comes with a masking sheet.
Rear wing and wing owner
The strong clear polycarbonate wing is installed towards the nylon rear wing owner. The wing angle might be changed by using the included wing angle spacers: 0, 2, 4, 6, and 8 angle are included.
Rims
Durable Serpent created wheel are incorporated into white color for front side and back (tires and inserts aren't included).
Clicker system
Standard inside automobile the ?solid clicker? is utilized for permanent 4wd, which for high hold conditions is most appropriate to make use of. The optional clicker system demands few additional parts just and can be used well in medium and reduced grip conditions, to allow the leading tires to spin more free and produce more part entry rate as required.
