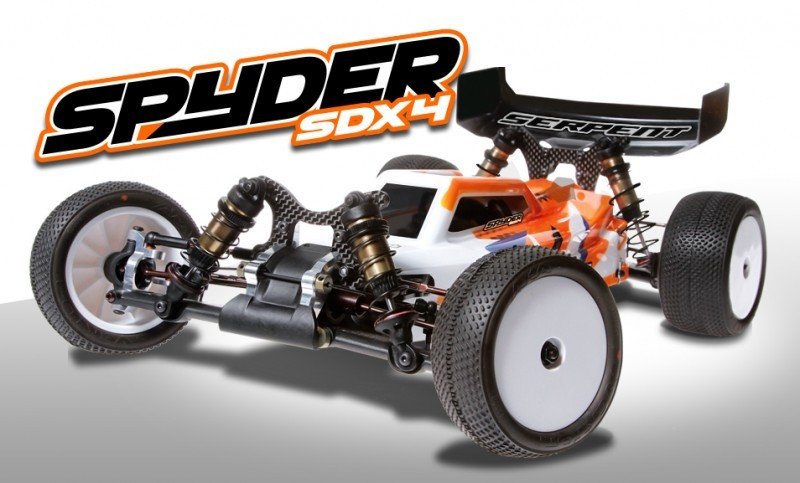

A brandnew top end Race degree 1/10 scale shaftdrive 4wd buggy really clean, quick and easy available design. Designed to perform on every area with versatile layouts which engine, battery pack and speedo may be installed in a lot of different places. Highly accessible for maintenance and set-up, with a minor number of screws and screw types.
Requirements:
- Automobile: Spyder SDX-4
- Course: 1/10 buggy 4wd
- Level: Competition
- Wheelbase: 288mm
- Front width: 240mm
- Back width: 240mm
- Weight: is founded on gadgets and tyres utilized
- Included: race chassis, human anatomy, back wing, rims
- Perhaps perhaps not included: tyres, tyre-inserts, electronic devices
Features:
- Lightweight clamp fitted gear-diffs alongside a main slipper
- front side and straight back compact and light gear diffs and main slipper
- 7075 T6 aluminium main diff/slipper owner and motormount
- 7075 T6 aluminium bulkheads front and rear
- 7075 T6 aluminium 2mm hard coated framework and carbon stiffeners
- 7075 T6 aluminium c-hubs
- 7075 T6 aluminium uprights, equal L and R
- 7075 T6 aluminium hardcoated suspension system brackets x 4
- Closed type suspension system arms with optional carbon top-inserts
- pivotball kind inner hinges
- bigbore 1/10 shocks with hardcoated housings can be employed emulsion or membrame design
- springtime metal universal drive and main shafts
- carbon shocktowers
- carbon framework stiffner
- carbon mid area top-plate
- carbon top steering bracket
- carbon steeringplate u-bracket
- suprisingly low and sleek 4wd human anatomy and big durable back wing
- High-quality ball-bearings
Framework
The hardcoated lightweight 2mm 7075 T6 aluminium framework has the right flex combined with the composite side-guards / framework stiffeners and center spline. All holes are countersunk to have a totally flat bottom area. Holes are centered and symmetrical also for flex.
Chassis stiffener
Inside backside the SDX4 features a carbon fibre framework stiffener that is clamped involving the rr fr suspension system system bracket and bulkhead and includes the guts. The brace has 5 optional holes to choose the stiffness by putting the tiny stiffener pole and screw and on occasion even including more poles/screws.
the product influences end flex and it is set according to hold levels and driving design.
Battery and stays
The SDX4 automobile takes a shorty in standard trim, you might also mounts saddle packages as required. The battery pack is held in position by a simple to operate composite battery-cover with a twistnut on a single side.
electronics
The middle of the automobile enables numerous area to install the most used speedo and receivers, combined with the transponder. The car also enables room enough allow good routing of one's cables. Quietly associated with slipper the SDx4 provides 2 unique cable guiders.
Designs to pick from
- Standard is shorty battery pack backside appropriate, motor straight back left, speedo/RX front side kept , servo front side right
- engine more toward center ( and swap front side and rear central driveshafts)
- Shorty left and engine right
- Motor front side left and esc back left
- Motor front part left and seat packages in straight back ( needs optional seat pack battery brace-set)
Servo mount
The servo is mounted inside vehicle with a stand produced from alu and carbon components, and it is attached to the centerline inside vehicle, to help keep also flex. Various spacers and horns are included to support probably the most utilized servo brands. An optional component additionally permits the servo to be relocated in steering dish and driveshaft. Maximum range of designs.
Drivetrain
The SDX4 utilizes lightweight springsteel univeral driveshafts front and back and primary universals too.
Gear-diffs and situations
the two lightweight oil-filled gear differentials front part and backside. These super smooth devices are light and compact and very durable. The differentials are also very a facile task to create as they are zero-maintenance.
Both outside differential circumstances ( front side and back) are clamped involving the aluminium bulkheads and require no other fasteners anyway. Super simple and easy fast for maintenance.
Differential main gear and bevel gear.
The precision machined directly cut differential primary gear and bevel gear are manufactured in hardened springsteel for smooth procedure.
Balljoints / trackrods
brand new style and product balljoints for smooth suspensions and steering. The external steering balljoints are angled to clear all rims/tyres . The trackrods and camberlinks are produced in thin but durable springsteel with L/R threading for easy adjustment.
Shocks
Serpent hard coated shock numbers and composite surprise tops for super smooth procedure and durability. 3.2mm shafts with new pre-oiled X-ring package and molded pistons. The shocks can be used either emulsion or membrane layer layer setup. The surprise springs have actually grounded ends, examined and matched for perfect equal procedure. Ride height are effortless set utilising the threaded collars which may have o-rings inside in which to stay place.
Shock towers
excessively durable 4mm dense carbon fibre front and back shock towers with 3 jobs for surprise angle. For roll center modification the best bracket features 6 holes to chose camberlink jobs. 3 internal and 3 outside. The trunk you've got 8, 4 interior and 4 outer.
Shock continues to be
Very durable aluminum surprise remains along with a little bushing and lightweight composite flanged nuts.
Slipper clutch
This light slipper-clutch unit, is a spring packed 3 pad variation, allows to regulate the ability blood circulation.
Front suspension
Strong composite paid off suspension system system arms with mounting spots for the pivotball triggered anti-roll club. The hands are a shut type design for aero effect, rigidity and clean looks. Regarding top side optional carbon inserts is applied just in case harder hands are expected for control. Composite insertplates are standard. The best hands have 2 shockangle jobs.
Steering obstructs and c-hubs
The lightweight composite steeringblocks are combined with aluminium 7075 T6 c-hubs. The c-hubs has 2 functions for rollcenter, and certainly will be further finetuned by simply utilizing pretty much shims. The c-hubs are 5 level, other optional individuals are 0 and 3 level.
Steering
The completely ball raced angled double axis steering system with built-in servo saver function, offers a really almost perfect Ackermann impact. Ackermann might be set with small plates which mount towards steering hands therefore the black colored colored cotaed aluminium steeringbrace has 2 holes available. The servosaver has a pre-load nut to easily set the specified stress.
The steeringsystem is installed on a carbon fiber u-bracket which also links leading remaining and right sides and functions stiffener.
Back suspension
Strong composite paid off suspension system system arms with mounting spots the pivotball caused anti-roll club. The arms are a closed type design for aero impact, rigidity and clean looks. In top component optional carbon inserts may be used whenever harder fingers are essential for control. Composite insertplates are standard.
a corner hands have actually really 2 surprise mounting positions for each side front side and rear. Leading part and right back shockmounting positions vary and hands may be used on both sides from the car, which means you have actually 4 shock angle jobs to decide on kind.
The trunk arms enable to install the shocks furthermore in the backside for the car
Suspension arms pivot balls
as opposed to internal pivot pins the SDX4 uses small pivotballs which thread within the supply. The suspension brackets are machined to adjust the pivotballs and create a reduced friction, no binding suspension system. By turning the pivotballs in or out you'll set the optimal play relating to the front part and right back bracket.
Suspension brackets
Rough covered aluminum suspension system system brackets fr fr and fr rr. Tiny but effective composite front part bumper to guard the best end. The angled front integrated kick up licenses smoother landings.
a large part rear suspension bracket can be utilized standard with o-degree or ugly as 3-degree anti-squat.
Bulkheads
The strong front part diff instance setup based on 2 durable 7075 T6 bulkheads is a very strong event to mount the diff-housings, front shock tower and chassis too. Its also features the holders the ballraced anti-rollbarmounts.
Anti-roll club
the leading side and rear fingers and bulkheads make it possible for mounting the ball-raced anti-roll bars. The cable kind anti-roll pubs are lasered for simple indentification. The cable connect to the fingers aided by the proven friction free supersmooth pivotball system. Its super easy to get into and affect the anti-roll bars as required.
Motor mount
The engine is installed securely towards thick 3mm cnc machined 7075 T6 alu motor dish. The motor is installed towards the sliderplate, that can easily be then effortlessly slotted constantly set up.
Center drive holders
The slipper clutch device is hold put up by the motormount bracket and a H shaped lightened 7075 T6 aluminium owner topped by a carbon connector dish which also holds the cable guiders in place.
The slipper can also be changed by a geardiff to the center. Its supereasy to get usage of the slipper or central geardiff.
Uprights
The lightened 7075 T6 aluminium uprights are same left and right and also 3 camberlink functions.
Wheelhex
Leading and rear wheel hex are 12mm industry standard size. The hexes are clamp kind and anodised to endure. Flanged wheelnuts are included to keep the wheels set up.
Body mounts
The strong composite body mounts is situated in instance utilized. As alternate velcro might be put into the inside concerning the framework stiffeners/side bars.
Body
high-quality clear polycarbonate is required for the Spyder SRX4 buggybody . The well shaped body has flat edges and roof for additional downforce and great managing. It in fact actually leaves enough room for electronics and air conditioning discovers as needed. The body closely follows the chassis form, so less debris can enter the automobile. The body is sold with a white precut masking sheet.
straight back wing and wing holder
The strong clear polycarbonate wing is mounted towards the nylon back wing owner.
Rims
Durable Serpent created wheel are contained in white color for front and backside (tires and inserts are not included). Back tires are only like SRX2 and SRX4, the leading people have actually actually another offset and so are amazing. Compliant toward latest IFMAR guidelines.
