Description

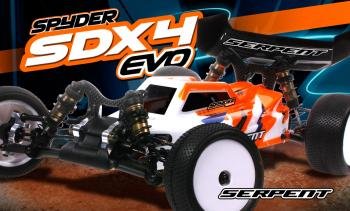

European Champion 2016 Spyder SDX4

The updated Serpent SDX4 EVO 1/10 scale shaft driven 4wd buggy really clean, simple and easy available design. Built to perform on every area with versatile layouts in which engine, battery pack and speedo might set up in a number of places. Highly available for maintenance and set-up, with handful of screws and screw kinds.
Front suspension system
Strong composite reduced suspension system system arms with mounting spots the pivot ball activated anti-roll club. The arms are a closed type design for aero impact, rigidity and clean look. Regarding the upper component optional carbon inserts could possibly be used in instance harder arms are expected for administration. Composite insert meals are standard. Leading hands have in fact 2 shock leverage functions. The hands have now been updated, your can purchase more product over the center associated with arm across the surprise mounting roles to prevent breakage.
Rear suspension system
Strong composite paid down suspension system system arms with mounting spots the pivot ball activated anti-roll bar. The arms are a closed type design for aero effect, rigidity and clean appearance. Regarding top part, optional carbon inserts are utilized whenever harder fingers are required for improved control. Composite insert dishes are standard.
a corner hands have in fact 2 surprise mounting jobs for every part, front and rear. The key and rear shock mounting jobs vary in addition to the arms may be used on both sides of vehicle, therefore you have actually really 4 shock leverage jobs to decide on type. Moreover, a large part hands and shock tower allow shocks become mounted into the front side or behind the trunk hands.
Also, the arms had been updated regarding shock mounting face to allow for longer screws to make sure that the shocks cannot grab connected with arm.
Suspension brackets
rough covered aluminum suspension brackets for both front part and back pivots
small but effective composite front bumper to protect the best end. The angled front integrated kick up enables smoother landings.
The rear/rear suspension system bracket may be used standard with o-degree or inverted as 3-degree anti-squat.
Bulkheads
The front and back bulkheads made from 7075-t6 are manufactured to optimize energy, and will be offering the shock tower additional energy. The transmission housings are nicely packed inside bulkheads to greatly help expand power while permitting ease of arranged and disassembly.

Anti-roll bar
leading and back bulkheads enable mounting the ball-raced anti-roll bars. The cable type anti-roll pubs are lasered for effortless identification. The wires connect to the fingers with the confirmed friction free super smooth pivot ball system. It's very easy to get at and alter the anti-roll bars as needed.
Motor mount
The engine is installed securely on CNC machined 7075 T6 aluminum motor fall. The slide happens to be slotted into position to ensure constant and dependable gear mesh.

Center drive holders
The slipper clutch device is held constantly in place by the engine mount bracket and a H shaped lightened 7075 T6 aluminum owner topped by a carbon connector meal that also holds the cable guiders in position. The slipper may also be replaced by a gear differential in to the center. Its quite simple to get involved with the slipper or main gear diff.
Uprights
The lightened 7075 T6 aluminum uprights are same left and right and possess 3 camber website link positions.

Wheel hex
The front and rear wheel hex are 12mm industry standard size. The hexes are clamp kind and anodized to last. Flanged wheel peanuts are included to keep the wheels set up.

Body mounts
The strong composite human body mounts are easily found in situation utilized. As alternate Velcro are positioned to the medial part associated with framework stiffeners/side pubs.
Body
Supreme quality clear polycarbonate may be used the Spyder SRX4 buggy human body. The nicely shaped human body has flat edges and roof for extra downforce and great management. It creates enough room for electronics and cooling discovers as needed. The body closely follows the chassis kind, therefore less debris can enter the automobile. Your body is sold with a white precut masking sheet.

Back wing and wing owner
The strong clear polycarbonate wing is installed on nylon back wing owner.

Wheels
Durable Serpent designed wheels are contained in white color for front side and back (tires and inserts are not included). Back tires are just like SRX2 and SRX4, leading men and women have an alternative offset and tend to be usually brand new. Compliant towards the latest IFMAR guidelines.
Steering obstructs and c-hubs
The lightweight composite steering obstructs are coupled with aluminum 7075 T6 c-hubs. The c-hubs has 2 roles the camber hyperlink and certainly will be further finetuned making use of more or less shims. The c-hubs are 10 degree’s, other optional people are 0, 3 and 5degree.

Steering Bell Cranks
The completely ball raced angled twin axis steering system with integrated servo saver function, provides an almost perfect Ackermann effect. Ackermann could possibly be set with tiny plates which mount towards steering hands and also the black colored coated aluminum steering brace has 2 holes available. The servo saver has a pre-load nut to effortlessly set the desired stress.
The steering system is attached to a carbon dietary fiber u-bracket which also links leading remaining and right sides and functions stiffener.

brand new Front/Rear and center CVD’s
The EVO kit is updated to work with front/rear outboard CVD’s which have captured pins to make sure, you undertake every race you start. The middle drivetrain is not any exclusion as it too ended up being updated to own CVD’s, all captured. The outboard CVD’s enhance efficiency and traction, even though the drivetrain enhance effectiveness.
Updated 2.5mm Drivetrain Pins
To increase reliability, and prolong living from the drivetrain, the Evo drivetrain had been updated to work with 2.5mm driveshaft pins throughout.

Solid Hinge pins 3mm Hinge Pins
The EVO Kit is updated to use solid 3mm hinge pins concerning the front part and straight back internal pivots. This increase reliability and allows you to shim both hands ahead or back. Having the ability to shorten or length the automobile will help you to further fine tune your car or truck or truck for every single track condition you certainly will face.
Updated 2 Pad Slipper
The slipper create is actually updated on EVO to work with 2 pads. When you attend 2 pads, it will enable you a broader choice of modification on dirt completely around Astroturf and Carpet. It is possible to nonetheless make use of the old 3 pad slipper, by simply swapping down components if you should be searching additionally less slipper action concerning the many extreme conditions.

handbook / setup sheet / decals
The Spyder SDX4 is sold with a PDF design color manual on a Serpent USB stick which will show the construction process in actions following packed bags. The manual also encloses the exploded views and a ref-guide which makes it simple to find the component figures you will need of spares and optional parts. A latest type of the manual can invariably be situated on our site as PDF too.
A default set-up sheet is roofed, but more set-ups can be found on our product page under set-ups.
A Spyder SDX4 decal sheet and a Serpent decal sheet are included.

Packing
The strong kit industry includes the coded bags to gather the automobile, combined with body, back wing and tires, manual, set-up sheet and decals. Each kit is very very carefully loaded and a checking decal can be obtained privately associated with the box
Key features:
- Lightweight clamp fitted Gear Boxes
- Front and back compact and light gear differentials
- 7075 T6 aluminum main diff/slipper owner and motor mount
- 7075 T6 aluminum bulkheads front part and rear,
- 7075 T6 aluminum 2mm difficult coated chassis and carbon stiffeners
- 7075 T6 aluminum 10degee c-hubs
- 7075 T6 aluminum uprights, 0 level L and R
- 7075 T6 aluminum hard coated suspension system brackets x 4
- Closed type suspension hands with optional carbon top-inserts
- Strong 3mm solid hinge pins with Pivoting balls
- Big bore 1/10 shocks with hard coated systems can be used emulsion or membrane layer layer design.
- springtime steel universal drive and main shafts.
- Carbon surprise towers,
- Carbon framework stiffener
- Carbon mid-section top-plate
- Carbon top steering bracket
- Carbon steering dish u-bracket
- low and sleek 4wd human anatomy and big durable rear wing
- high-quality ball-bearings

major features

Chassis
The difficult coated lightweight 2mm 7075 T6 aluminum framework has got the right flex combined with composite side-guards / framework stiffeners and center spline. All holes are countersunk to possess an entirely flat bottom area. Holes are centered and symmetrical for even flex.

Chassis stiffener
inside back the SDX4 features a carbon fibre framework stiffener that can be clamped concerning the rear/front suspension system bracket additionally the bulkhead and also includes the guts. The brace has 5 optional holes to find the tightness by putting the tiny stiffener pole and screw or even including more poles/screws.
the equipment influences end flex and is set considering hold amounts and driving design.

Battery and stays
The SDX4 car takes a shorty in standard trim, you might install seat packages as needed. The battery is kept setup by a user friendly composite battery-cover with a twist nut on one part.

Electronics
the biggest market associated with the vehicle permits numerous area to put in typically the most popular speedo and receivers, and the transponder. The vehicle also enables enough room to enable good routing of cables. Quietly the slipper the SDx4 provides 2 unique cable guiders.

designs to pick from
- standard is shorty battery power backside right, engine straight back left, speedo/RX front left, servo forward right
- engine more on center (and swap front and straight back main driveshafts)
- Shorty remaining and engine right
- Motor front side kept and esc right back left
- Motor front side left and saddle packs in back ( needs optional saddle pack battery power brace-set)
Servo mount
The servo is mounted inside automobile with a stand produced from alum and carbon components, which is installed on the centerline inside car, to keep additionally flex. Various spacers and horns are included to match the most used servo brands. An optional component in addition permits the servo to be relocated under the steering dish and driveshaft. Maximum selection of designs.

Drivetrain
The SDX4 makes use of lightweight springsteel CVD and driveshafts front and back and main. The drivetrain had been completely updated to simply accept 2.5mm driveshaft pins.

Gear-diffs and instances
lightweight oil-filled gear differentials are used into the front and backside. These super smooth devices are light and compact and intensely durable. The differentials may quite simple to create and therefore are really low upkeep.
both external differential circumstances ( front part and straight back) are clamped between your aluminum bulkheads and need no other fasteners anyway. Super easy and simple fast for maintenance.

Differential primary gear and bevel gear.
The accuracy machined right cut differential primary gear and bevel gear are manufactured in hardened springsteel for smooth procedure.

Ball bones / track rods
brand new design and product ball bones for smooth suspensions and steering. The outside steering ball bones are angled to clear all rims/tires . The track rods and camber links are stated in thin but durable springsteel with L/R threading for easy adjustment.
Shocks
Serpent difficult coated shock figures and composite surprise tops for super smooth operation and durability. 3.2mm shafts with new pre-oiled X-ring package and molded pistons. The shocks may be used either emulsion or membrane layer configuration. The surprise springs have grounded ends, examined and matched for perfect equal procedure. Ride height may be effortless set utilizing the threaded collars which have O-rings inside to ensure they stay in destination.

Shock towers
the modern created durable 4mm dense carbon fibre front and back shock towers with 4 jobs for the front surprise angle and 4 jobs the rear surprise angle. For roll center modification the key bracket features 5 holes to choose camber website link jobs. 3 inner and 2 outer. The rear one has 6 holes to select from, 3 internal and 3 outside.
Shock remains
excessively durable aluminum surprise stays along side a tiny bushing and lightweight composite flanged peanuts.

Slipper clutch
This light slipper-clutch unit, is an updated springtime loaded 2 pad variation, enables to manage the energy circulation in a more significant range traction conditions.

Key Optional Components
- various shock springs dust and astro-turf
- different anti-roll pubs
- Aluminum C-hubs in 0 and 3 and 5 level
- Aluminum upright with +/- 1
- Front Lexan wing
- Servo mount set to place the servo within the front side center
- Saddle pack mounting set
- Center gear differential
- number of Diff spur gears
- difficult coated aluminum surprise caps
- Full selection of gear pinions in hard coated aluminum
- Carbon suspension supply covers front side and backside
