Serpent SER500503 Upgrade-set Aluminium Chassis SRX2 MH  [SER500503]

500503 Upgrade-set aluminium framework SRX2 MH3

The 2mm 7075 T6 framework is hard anodized and all reduced holes are countersunk. The set includes the sidebars and center moulded components to keep the gadgets placed well and stiffen up the chassis. The framework has the capacity to accept the 3 and 4 gear standard transmission and the 3 and 4 gear laydown transmissions.

The batteryplate is a well machined carbon fiber one and advances the framework tightness too.

The front end has another aluminium kickup-plate that can easily be connected to the framework utilizing the durable moulded connector brace. This allows you to definitely additionally take to a carbon fibre framework effectively whenever required and its own cheaper and more straightforward to change a kickup dish if required.

The set also incorporates the most recent Srx2 human anatomy that will easily be used for the existing 4-gear vehicle, combined with laydown 3 and 4 transmissions.

The front and end merely mount over the framework update.

All components offer separate a spares additionally.

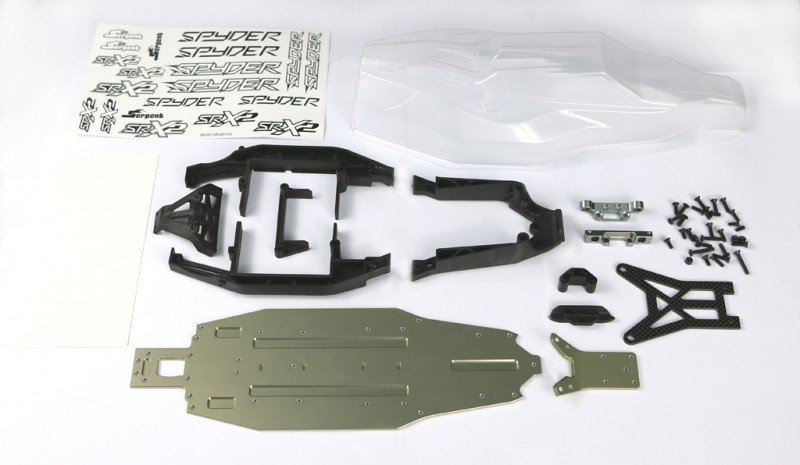

Articles about the set:

• S502 Spyder decal sheet b/wh 1
• S503-MM-Masking sheet 1
• S503-mm-battery-stap 1
• S503-mm-carriage-L 1
• S503-mm-carriage-R 1
• S503-mm-fr-kick-plate 1
• S503-mm-front-section 1
• S503-mm-inline-batt-holder 1
• S503-mm-rear-bulkhead-spacer 1
• S503-mm-rear-bumper 1
• S503-mm-rr-fr-toe-block 1
• S503-mm-rr-rr-toe-block 1
• S503-mm-trans-brace 1
• S503-mm-body 1
• S503-mm-chassis-alu-std 1
• cs-allen-m3x20 2
• cs-allen-m3x8 5
• cs-allen-m3x10 10
• cs-allen-m3x12 8
• CS Allen M3x16 1
• setscrew-m3x8 2
• nylock-nut-m3 3
