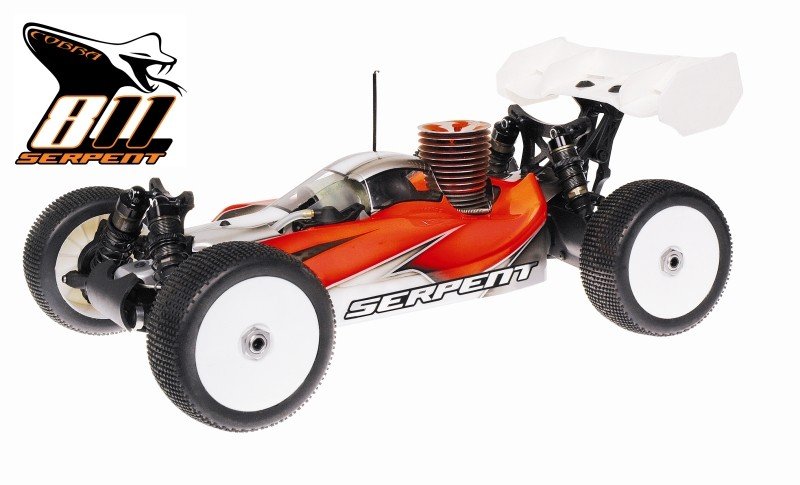

The S811 Race Buggy may be the ultimate competition rushing buggy, for high-end competition use.
Its a variety of new and present ideas to deliver a substantially better overall package. The balance left to right and front to back has also been enhanced over present designs. Subsequently provide a more substantial tuning display screen without loss in drivability. With many brand new competitive buggies being wear a meal plan, you'll not be disappointed, simply because S811 will come in at 3300 grams, entirely laden with all of the standard items. The philosophy finished up being effortless, how can you produce a car, that may simply take an average motorist and transform him into outstanding motorist. The final solution should be to provide him with a product that may are one harmonious product together, all products operating together.
Specs:
- Name: Serpent S811 Cobra
- Class: 1/8 scale 4wd buggy
- Type: kit-version, top end competition
- body weight: 3.300 grms ( battle prepared, depends on radio-gear and motor)
- Clutch: 4-shoe centrifugal, carbon shoes
- Differential: lighweight, little geardiffs , front, main and rear
- Brake: piston type with glassfiber disks
- Shocks: 16mm big bore
- Fueltank: 125ccm, with integral bronze filter
- Gear-ratio: 4:3:1
- Included: Kit, human anatomy, wing, silicone oil, color manual, decalsheet
- Perhaps perhaps not included: Radio-gear, tyres-wheels, motor, pipe
Features:
Chassis, slim design
Improves overall ground approval on sides for minimal framework dragging. This is certainly an improvement for leaping and cornering over uneven ground. With less mass out wide the car will pitch less in part, but in addition stay straighter in fast kept to right cornering.
Machined framework 3mm
Lightweight chassis assists minimize fat and improve basic vehicle performance. Countersunk holes. Anodised in titanium color and laser etched Cobra custom logo.
All suspension system system mounts are keyed into place
this can help to relieve the mount of any part forces from tumbling in a major accident. It just take the strain from the screws and transmission situation and sets that force regarding framework.
Chassis kick up position
Most angle in its course, this could offer more approval for attacking even the most destroyed jump faces. It is going to guarantee it is possible to guide your path up the facial skin without scrubbing off any valuable rate.
Big radius front part Bumper
Helps reduce the garden dart effect on nose down jump landings. Furthermore helps avoid scrubbing down rate on moguls, and whoop design bumps
Composite framework braces
Allows the framework to flex which assists enhance bump maneuvering. Front and backside.
Adjustable wheel base
5 mm of wheel base adjustment inside back from 322.5 to 327.5 mm.
Front Steering knuckle set up
Leading roll center are changed quickly by going the steering knuckle shims using their appropriate places.
Steering-blocks / caster blocks
Durable moulded composite steeringblocks with standard 10 level caster obstructs.
Brand new surprise mounting Geometry on an arm.
Helps whenever searching for the surprise in lever supply to re adjust the surprise size and place without changing other unneeded things.
Inboard Bell crank Steering supply
This will be to give a tighter fit on human anatomy and keep the lever and linkage within the car. It'll help with preventing injury to the steering system
Zero scrub radiuses on steering knuckle
this specific function assists in easing the jacking effect created by your steering knuckle offset. It provides a far more direct feel while keeping the vehicles chassis more degree while switching.
Suspension brackets aluminium fr and rr
CNC devices suspension brackets front and straight back. Very good and durable, yet lightweight design, keeping the pivot-inserts well captured. Anodised and laser-engraved.
Symmetrical inner pivots
Front and back pivots can be found in comparable airplane. This can help keep carefully the care more basic under cornering.
Eccentrics on suspension mounts
there may be a selection of different eccentrics you need to use to modify your kick up inside the front part of car combined with anti squat in the rear.
Long steering tie rods
based on the bell crank design the pole size is optimized become because next to your exact same size as possible to help expand reduce bump steer.
Captured Servo Saver set up
Reduces undesired debris from destroy servo saver faces. That will prevents just about any untimely servo harm.
Angled Bell cranks
The bell cranks are angled to reduce the angle of difference between the total caster and steering airplane. Therefore you will have less bump steer and a truer steering Ackerman through the complete array of suspension
Ackerman meals
Because of the design the steering bell cranks whenever changing the Ackerman you will not require to modify your steering tie rods. You simply will only should adjust your end points all on your own radio..
Roll center adjustment
The front roll center can be changed quickly by going the steering knuckle shims with their appropriate locations.
Pillow Ball sway club joints
This really is an instant and simple substitute for adjust the left and right tweak of the sway bar.
Anti-roll bars
Front and back anti-roll bars made of springtime steel cable and size recommended with engraving.Anti-roll pubs are ballraced for effectiveness and smooth operation. A variery of optional individuals available, additionally as sets.
Captured ball cups
All camber links, steering links and steering servo links had been caught. This may assist in preventing any ball cups from popping down.
Big bore shocks 16mm
Although this has transformed into the industry standard you'll definitely enjoy all of the advantages with this compacted bigbore design with large o bands and superb bleeders. The larger o bands offer less basic stress and a better seal without all dragging regarding surprise shaft.
Laser angraved black tops.
Threaded shock systems
This might be for reducing parts within pit instance. You can forget videos to loose. It can help adjust in much finer increments.
Oversized 4mm shock shafts
Reducing problems for shock shafts from hard jump landings or impacts.
Shock shoes with bump end
Shock shoes were created to increase life, seal and utilize plastic as a cushion to prevent injury to suspension system elements.
Shock spring buckets with debris drain and key locator The springtime buckets on base of the surprise have drain holes to have dust, water and debris from usable shock zone. One of the secrets locator allows you to align and secure the springtime bucket into destination so that it remains put during procedure.
Carbon fiber shock towers
4.5 mm thick Carbon surprise towers enhance looks, nonetheless offer lighter fat.
One piece radio tray.
The set up is exclusive as is provides on rigid component which could house all your radio gear. The reduction is simply as effortless with 6 screws total.
Crimping Antenna mount with plastic water proof limit
With water ever being a concern in outdoor nitro racing. This Crimping design not merely will hold your antenna in position, but has a plastic limitation to avoid water from sneaking directly into your radio package.
Fueltank
Splash basin on tank top
This helps reduce fuel all around the framework in case there is a messy pit stop. The basin collects the splashed fuel and guides it properly out from the foot of the framework
Individual centering vehicle's gas tank seal
The gas tank seal is angled to self guide its means in to the bore from the tank. Simultaneously provides a seal regarding the chamfered and flat edges associated with seal, supplying constant engine performance from a single pit end to another.
Integrated tank splash guard
Helps to avoid gas from splashing on your air conditioner filter in case of an extremely excited pit man.
Tank with swiveling nipple and drifting clunk.
Using the swiveling nipple you are able to adjust the angle that you desire you fuel line to check out. At the same time the floating clunk assists whenever you get unsightly. The clunk by gravity will fall back once again to the fuel, utilising the flexibleness of the silicone fuel tubing.
Oversized Tank with adjustable volume.
utilizing the insertion of a straightforward screw and amount reducer you will have ROAR, IFMAR and just about every single other organizations appropriate tank quantity
Sleek low profile air filter
Centralized air conditioner filter design to cut back cab width and height.Flexible plastic boot along with strong nylon situation to guide the foam elements. Excellent dense foam airfilter elements to help keep your machines clean inside.
Piston Braking system
Provides more stopping power than you might have ever really imagined before with a decent deal less servo energy. Normally entirely adjustable with 3 forms of pistons: Solid, O ring type, Spring type.
Subsequently it is possible to adjust your bias or braking feel towards liking in more practices than in the past.
Fiber Glass disk brake system
Fiber Glass braking system disks with oversized front.
Brake plate springs
Could keep the plates distribute available to guarantee perhaps not un-wanted dragging of braking system discs.
Throttle and brake lever ball cups
Helps offer consistent pulling regarding braking system lever or carburetor when you would not have the linkage completely aligned.
Lightweight Differentials and center spur.
Mathematically the lightest ever. By reducing the rotating mass, it is possible to further enhance the level of from the part acceleration. Subsequently your motor breathes simple and easy uses less fuel.
Drive ratio 4.3:1
This drive ratio will provide amazing acceleration aided by the low vehicle fat. It really is a sure success, to help enhance gas mileage
Spur Gear Guard
Helps to avoid the spur gear from slinging debris all over the inside the automobile and particularly in the air conditioner filter. Works for rainfall and water puddles.
Lightweight 3.5mm drive shafts
Whenever overall fat is an issue, you will want to reduce rotating mass. Equal lenght front and rear.Precision machined spring-steel.
Captured and bolted hinge pins
All hinge pins are either captured or bolted setup. This insures your opportunities to perform one hour or so lengthy primary occasion, while fighting for the lead.
Hinge pin suspension system balls
This relieves stress on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to show to almost any angle without binding.
Captured universal bones
the style here was in fact easy. Guarantees you will probably finish a race without loosing a pin or set screw. All components, axles and drive train elements have in fact capture pins
Larger 3.5 mm outside back hinge pins
Better effect opposition in crashes. Provides silky smooth suspension system procedure and longer pin life.
back upright
Durable composite rear uprights.
Mud guards
In moist or wet dust situations these mud guards lessen and dirt following trunk drive shafts and shocks.
Rushing clutch 4 - footwear
lets you mix and match footwear materials evenly in pairs. Additionally provides more surface area contact to insure the engagement.4 carbon shaped footwear are standard ( alu ones optional).
Coil exhaust cable and alu mount
Helps assistance with leading to straight back motion of pipeline whenever framework flex does occur. Helps while we are avoiding damage to your exhaust gaskets.
Flanged and serrated wheel peanuts
Guarantees that you'll maybe not loose a wheel nut in a competition
Adjustable straight back wing mount
The composite straight back wing mount, permits to improve the angle from the rear wing.
Two phase high down force wing
Wing has two quantities of angle, which also includes 2 fins. Helps enhance down force and right line capability
Super minimal profile human body
Improves look as well as keeps the profile low along with front to straight back.
sebum and oil included
The S811 includes quality silicone oils the difs and shocks and a container of oil.
