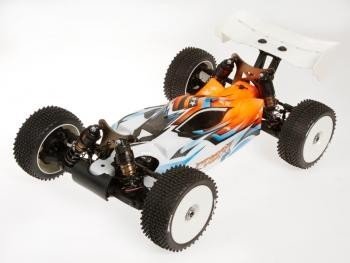

Cobra 811 Buggy Sport 1/8 ElectricPowered the game form of the effective upper end Serpent 1/8 Cobra 811 E-Buggy. 4-wheel-drive, 3 geardiffs, 16mm bigbore shocks, aluminium shocktowers and framework, effortless radiobox, sideguards, batteryboxes, rear wing. Completely upgradable with parts and alternatives from top end race-version. This super durable Buggy framework allows an incredible entry within the competition scene, at a lower life expectancy price, and certainly will provide you with complete your events !
Specs:
- Name: Serpent 811 Cobra Buggy-e Sport
- Class: 1/8 scale 4wd buggy, electric powered
- Type: kit-version, competition-car
- Wheelbase: 330mm
- Width: 305mm
- Body weight: 3,300 grms ( competition ready, is based on radio-gear and motor)
- Differential: lightweight, tiny geardiffs , front, primary and rear
- Shocks: 16mm big bore
- Gear-ratio: 4:3:1
- Included: Kit, human body, wing, silicone oil, color manual, decalsheet.
- Perhaps perhaps not included: Radio-gear, tyres-wheels, motor, esc, batteries.
Features:
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pouches to come up with flex and or make lighter. Kick-up angle on front side for easier landings. Countersunk holes. Slots to learn the leading and rear suspension system mounts properly. Angled sides to boost tightness. Laser engraved Cobra logo design.
Bumper
Large curved nylon bumper that withstands effect after big jumps, and makes landing more suttle. Safeguards additionally leading swaybar installation and front suspension system system brackets.
Chassis stiffners
Composite stiffner front side and rear, to provide extra tightness, yet still allow some flex as needed.
Servo fingers and linkages
The servo fingers have actually in fact a splined insert to truly have the right fit per brand name. The linkages runs really neat and tight plus they are accessible to change settings.
Suspension brackets
Durable nylon suspension brackets. Precision complement the nylon roll center inserts and pivot balls / pins.
Steeringblocks construction
Composite steeringblocks along side 10 deg C-hubs for precise steering. Metal wheel-axles with big size bearings and larger interior with precision threaded aluminum wheel-hubs . Flanged and serrated wheel nuts to ensure which you won't loose a wheel nut in a battle.
Front suspension system
Durable oversized paid off suspension system arms in strong composite nylon. Within the lower side downstops setscrews are installed. The reduced shock-mounting pins are guaranteed with somewhat grubscrew through the base.
Front side anti-roll club
The ballraced front part anti-roll club system, contain a spring metal fold cable, that is directed through diff-cases and run in ballraced steel adaptors. The cable is with this paid off suspension system arm, with a captured adjustable threaded pivotball, for excessively accurate and low friction procedure.
Shocktower and bodymounts front
4.0mm thick anodized aluminium shocktower with 3 top placement holes the shocks and and 5 holes for roll-center jobs. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to lessen the angle of distinction between the full total caster and steering airplane. Consequently you will have less bump steer and a truer steering Ackermann through the complete choice of suspension
Ackermann dishes
Using the design the steering bell cranks whenever changing the Ackermann you will not want to modify your steering tie rods. You merely only will need to adjust your end points in your radio.
Back suspension system hands
Durable oversized reduced suspension fingers in strong composite nylon. Concerning the lower component the downstops set-screws are mounted. The paid down shock-mounting pins are assured with a little grubscrew through base.
Straight back uprights construction
Composite uprights with 3 top roll-center jobs. Strong metal track-rods with L/R threading and strong balljoints to pre-set camber. Metal wheel-axles with big size bearings 8X16X5 (2) and 15x21x4 (2) with precision threaded aluminium wheel-hubs .Flanged and serrated wheel peanuts to make sure you won't loose a wheel nut in a battle.
Rear anti-roll bar
The ballraced front side anti-roll club system, contain a springtime steel bend cable, which will be led through diff-cases and runs in ballraced steel adaptors. The cable is from the lower suspension system system supply, with a captured adjustable threaded pivotball, for actually precise and low friction operation.
Shocktower straight back
4.0mm thick anodized aluminium shocktower, built-into a large part component for additional stiffness, with 3 top placement holes the shocks and 5 holes for roll-center positions.
Wingmount and bodymounts backside
Composite low back wing, with strong nylon adjustable rear bodymounts on wide body-support connection positioned far sufficient towards backside, to steer the bodies in simplest way.
Captured pivot pins and balls and bolted hinge pins
All metal hinge pins are either captured or bolted set up. This insures your possibilities to complete an hour approximately very long main occasion, while battling the lead. This relieves stress on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to turn to just about any angle without binding.
Shockabsorbers big-bore 16mm
Coated aluminium shockbodies with 4mm shock-rods. Ebony anodized aluminium screw on shock-tops . Pre-load adjusters with nylon spacers. Shocks use big diameter membranes and big diameter o-rings and bushings to come up with a supersmooth and leak-proof package. Big diameter pistons occur set up by a nut within the polished shock-rods tops. Start kind spring retainer to allow dirt out effortless.
RCM surprise springs
Quick type colorcoded shock springs are given the very first standard set-up Springs are grinded flat top and base, and examined separately for anxiety and size.
Lightweight gear differentials
Really compact gear differentials with acutely smooth steel sintered gears, and metal shaft. Perfect sealing instance with unique gasket and o-rings. Really durable outdrive cups in metal. Hardened spring-steel diff-coupler 13T with connector operating in 2 oversized bearings 8x19x6 and 13x19x4
Front cvd-set, back dogbone design
Both front steel riveshafts are increasingly getting used in combination with CVD system. Durable metal driveshafts with hard metal pins. Within the backside a dogbone type system is applied.
Strong metal transmission components
Leading and back steel cardan shafts link the differentials using the gearbox part.
Servo / speedo mount
This area lies inside front for optimal fat circulation. The servo is in standing place with a very short and effective steering supply. The area the speedo is adequate to complement mostly utilized . The receiver-box is on top for comfortable access and zero fat.
Motor install
The motor is put within the many optimal place inside the automobile, maintaining motor-forces and transmission components / alignment at heart. Simply one-screw is needed to secure the BL engine, within the nicely designed durable machined aluminium motormount. Area for extra motor-cooling available as required.
The area the motor allows a maximum motor-length of 68mm, which covers hottest engines.
Battery-cases / side-guards
The primary eyecatchers would be the extremely low laydown longitudinal put battery-packs at each and each part concerning the car, being area of the side-guards, firmly fastened with a flip-lid, for simple and fast battery pack alterations. The extra weight lower in the automobile and in the best position, well balanced. The Lipo holders comply with ROAR appropriate packs / measurements.
Lightweight Differentials and center spur.
Extremely compact and light gear-diffs. By reducing the rotating mass, you'll be able to further boost the wide range of from the corner acceleration.
The Cobra-E makes use of a 13T / 44T combo gearing.
46T core diff gear.
Body
Sleek, low design polycarbonate buggy human anatomy, with lines provided and masking sheet too.
Right back wing
big low back wing in durable nylon with good downforce and unique shaped for most readily useful airflow over and through wing.
Sebum and oil
The shock-oil, diff oil and several oil comes to meet up the typical set-up.
