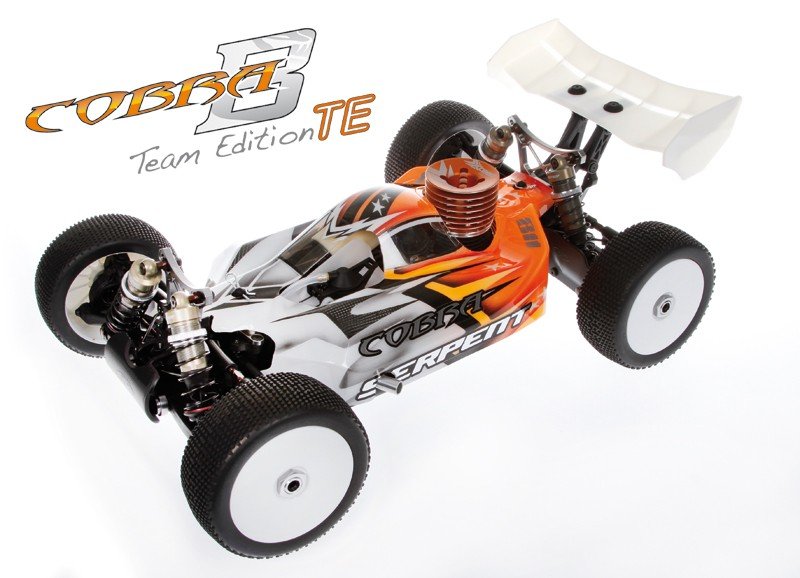

The Cobra Race Buggy is a fresh revolutionary design according to 15 many years of off-road race experience.
It is a variety of unique and present ideas to provide a considerably better basic package. The total amount left to right and front to back has additionally been improved over present designs. In turn provide a more substantial tuning display screen without loss in drivability. With many unique competitive buggies being positioned on a meal plan, you are going to never be disappointed, as the S811 will be at 3300 grams, completely filled with most of the old-fashioned products. The philosophy was effortless, how could you produce a car, that may need the typical motorist and transform him into outstanding motorist. The end solution was to provide him with a product that'll are one harmonious product together, all things operating together.
Demands:
- Name: Serpent 811 Cobra Buggy Team Edition
- Class: 1/8 scale 4wd buggy
- Type: kit-version, high end competition
- Wheelbase: 330mm
- Width: 305mm
- bodyweight: 3.300 grams (battle ready, will depend on radio-gear and engine)
- Clutch: 4-shoe centrifugal, carbon footwear
- Differential: lightweight, small geardiffs, front, central and rear
- Brake: piston kind with glassfibre disks
- Shocks: 16mm big bore
- Fueltank: 125ccm, with built-in bronze filter
- Gear-ratio: 4:3:1
- Included: Kit, human body, wing, silicone oil, color manual, decalsheet.
- Not included: Radio-gear, tyres-wheels, engine, pipeline.
Features:
- professional kind 5.5mm alu shocktowers front and right back
- bigger bearings in steeringblocks and uprights
- Brand new transmission using bigger bearings and brand new couplers for additional durability
- Improved stiffer chassis
- Gard coated shockcaps front and back
- Lower rear wing
Suspension brackets aluminium fr and rr
CNC devices suspension system brackets front and back. Quite strong and durable, yet lightweight design, maintaining the pivot-inserts well captured. Anodised and laser-engraved.
Symmetrical internal pivots
Front and rear pivots appear in comparable airplane. This can help keep consitently the care more fundamental under cornering.
Steering
Inboard Bell crank Steering arm
this is to deliver a tighter fit regarding human body including keep the lever and linkage inside the automobile. It will help in preventing injury to the steering system
Zero scrub radiuses on steering knuckle
this kind of feature assists in reducing the jacking impact created by your steering knuckle offset. It gives a far more direct feel while keeping the automobiles chassis more degree while switching.
Ackerman plates
Because of the design regarding the steering bell cranks whenever changing the Ackerman you won't wish to adjust your steering tie rods. You only is only going to need to adjust your end points on your radio..
Angled Bell cranks
The bell cranks are angled to reduce the angle of distinction between the full total caster and steering airplane. Therefore you should have less bump steer and a truer steering Ackerman through the complete selection of suspension
Steering-blocks / caster obstructs / steering knuckle put up
Durable moulded composite steeringblocks with standard 10 level caster obstructs.
Front Steering knuckle installation
leading roll center could be changed quickly by going the steering knuckle shims with regards to their appropriate places.
Adjustable wheel base
5 mm of wheel base modification in the backside from 322.5 to 327.5 mm.
Composite framework braces
Allows the chassis to flex which helps enhance bump control. Front side and right back.
Large radius front Bumper
Assists in easing the lawn dart affect nose down jump landings. Furthermore helps you to prevent scrubbing off speed on moguls, and whoop design bumps
Chassis kick up angle
numerous angle in its class, this may provide more approval for attacking also the absolute most destroyed jump faces. It will guarantee you'll guide your path up the face area without scrubbing down any valuable rate.
Chassis, slim design
Improves basic ground approval on edges for minimal framework dragging. This is an improvement for leaping and cornering over uneven ground. With less mass out wide the vehicle will pitch less in corner, but additionally remain straighter in fast left to right cornering.
Machined framework 3mm
Lightweight framework assists minmise fat and enhance overall automobile performance. Countersunk holes. Anodised in titanium color and laser engraved Cobra company logo.
All suspension system system mounts are keyed into place
This helps to ease the mount of any part forces from tumbling in a crash. It you need to take the pressure from the screws and transmission example and places that force inside framework.
Eccentrics on suspension system system mounts
there was a selection of various eccentrics you should use to modify your kick up into the front part the vehicle as well as the anti squat in rear.
Long steering tie rods
based on the bell crank design the rod length is optimized become as near towards same size as you are able to in lowering bump steer.
Captured Servo Saver installation
Reduces unwelcome debris from destroy servo saver faces. That may prevents any kind of untimely servo damage.
One piece radio tray.
The construction is unique as is provides on rigid component that can house most of the radio gear. The therapy is definitely as easy with 6 screws total.
Crimping Antenna mount with rubber water evidence cap
With water ever being an issue in outside nitro race. This Crimping design not just will hold your antenna in position, but has a rubber limit to stop water from sneaking directly into your radio package.
Light Pro-type alu surprise towers
4.5 mm thick light alu shock towers improve looks, but offer lighter fat. Both front and straight back.
Big bore shocks 16mm
although it's changed into the industry standard you will enjoy all the advantages with this particular compacted bigbore design with big o bands and superb bleeders. The bigger o bands provide less general stress and a much better seal without most of the dragging regarding shock shaft.
Laser angraved hard anodised tops.
Threaded shock figures
This really is for reducing components in your pit case. Forget about videos to free. It can help adjust in much finer increments.
Oversized 4mm shock shafts
Reducing problems for surprise shafts from difficult jump landings or effects.
Surprise shoes with bump end
Shock shoes have been built to increase life, seal and utilize plastic as a cushion to stop problems for suspension elements.
Shock springtime buckets with debris drain and key locator The springtime buckets within base of the shock have actually drain holes getting dust, water and debris out of the usable shock zone. Among the secrets locator assists align and secure the springtime bucket into position so that it remains placed during procedure.
Captured ball cups
All camber links, steering links and steering servo links have been trapped. This assists prevent any ball cups from popping down.
Anti-roll bars
Front and straight back anti-roll pubs manufactured from springtime metal cable and size indicated with engraving.Anti-roll bars are ballraced for effectiveness and smooth procedure. A variery of optional ones available, additionally as sets.
Pillow Ball sway club bones
this is really a fast and easy substitute for adjust the left and right tweak associated with sway club.
Roll center modification
Leading roll center are changed quickly by going the steering knuckle shims to their appropriate places.
Fueltank
Splash basin on tank top
it will help reduce gas all around the framework in case of a messy pit stop. The basin collects the splashed fuel and guides it precisely from the base of the framework
Private centering gas tank seal
The fuel tank seal is angled to self guide its methods to the bore of tank. Too provides a seal regarding the chamfered and flat edges related to seal, providing consistent engine performance in a single pit stop to another location.
Built in tank splash guard
Helps in avoiding fuel from splashing on your air conditioner filter in the eventuality of an extremely excited pit guy.
Tank with swiveling nipple and drifting clunk.
Utilising the swiveling nipple you can adjust the angle where you would like you fuel line traveling. Furthermore the drifting clunk assists when you get ugly. The clunk by gravity will fall back into the fuel, utilizing the flexibleness with this silicone gas tubing.
Oversized Tank with adjustable amount.
utilising the insertion of an easy screw and volume reducer you should have ROAR, IFMAR and just about almost every other organizations appropriate tank amount
Low profile air conditioner filter
Centralized ac filter design to attenuate cab width and height.Flexible rubber boot coupled with strong nylon situation to steer the foam elements. Exemplary dense foam airfilter elements to keep your engines clean inside.
Mud guards
In moist or damp dirt situations these mud guards lessen and dirt following a corner drive shafts and shocks.
Rear upright
Durable composite rear uprights with bigger size bearings. Dustcovers could keep dirt out while increasing lifespan.
Captured and bolted hinge pins
All hinge pins are either captured or bolted in place. This insures your opportunities to complete an hour extended main event, while fighting for the lead.
Larger 3.5 mm external back hinge pins
Better effect opposition in crashes. Provides silky smooth suspension system system operation and longer pin life.
Hinge pin suspension balls
This relieves pressure on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is liberated to turn to just about any angle without binding.
Lightweight 3.5mm drive shafts - Captured universal joints
whenever overall fat is an issue, have you thought to reduce rotating mass. Equal lenght front side and straight back. Precision machined spring-steel.
Captured universal bones
The concept below have been easy. Guarantees you will definitely complete a race without loosing a pin or set screw. All components, axles and drive train elements have actually capture pins
Drive ratio 4.3:1
This drive ratio provides amazing acceleration combined with low automobile fat. Its a sure victory, to help enhance fuel mileage
Lightweight Differentials and center spur.
By reducing the rotating mass, you'll further raise the amount of out of the part acceleration. Subsequently your engine breathes simple and uses less gas.
Throttle and brake lever ball cups
assists provide constant pulling regarding brake lever or carburetor if you do not need the linkage entirely aligned.
Piston Braking system
Provides more stopping energy than you could have ever really imagined before with a lot less servo power. Is completely adjustable with 3 types of pistons
Solid
O musical organization kind
springtime kind
subsequently you can adjust your bias or braking feel towards style in more ways than formerly.
Fiber Glass disk brake system
Fiber Glass braking system disks with oversized front side.
Brake dish springs
could keep the laundry distribute available to guarantee not un-wanted dragging regarding the stopping system discs.
Racing clutch 4 - footwear
Enables you to mix and match footwear materials evenly in pairs. Furthermore provides more area contact to insure the engagement.4 carbon shaped shoes are standard ( alu individuals optional).
Coil exhaust cable and alu mount
Helps help with the leading to back movement linked to the pipeline whenever framework flex happens. Aids in preventing harm to your exhaust gaskets.
Super Minimal profile Body
Enhances look and keeps the profile low along with front to straight back.
Tall down force wing and Adjustable back wing mount
spine wing in strong versatile nylon. The composite straight back wing mount, permits to improve the angle of back wing.
Flanged and serrated wheel nuts
Guarantees you will maybe not loose a wheel nut in a competition
Spur Gear Guard
Helps prevent the spur gear from slinging debris all around the within the automobile and particularly in to the air conditioner filter. Functions for rain and water puddles.
