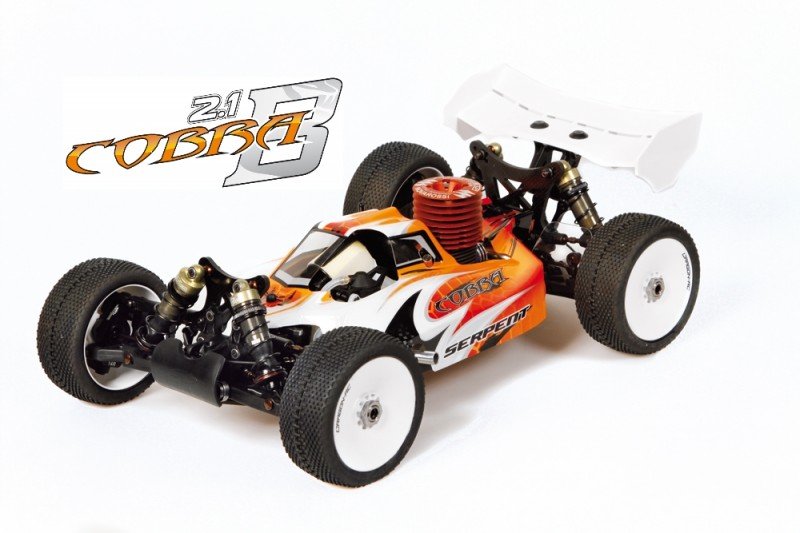

The Serpent Cobra Buggy 2.1 is because constant development and intensive cooperation with all the current key team-drivers. The changes the 2.1 version aren't exceedingly big, but very important to cause you to bypass the track easier and quicker. The longer framework coupled with 14 degree castorblocks provide a truly difference in general administration.
Needs:
- course: 1/8 scale 4wd buggy
- kind: kit-version, supreme quality competition
- wheelbase: 330mm
- width: 305mm
- fat: 3.300 grms ( competition prepared, differs in accordance with radio-gear and engine)
- clutch: 4-shoe centrifugal, carbon footwear
- differential: lightweight, little geardiffs , front, main and back
- braking system: piston kind with glassfibre disks
- shocks: 16mm big bore
- fueltank: 125ccm, with integrated bronze filter
- gear-ratio: 4:3:1
- included: Kit, human anatomy, wing, silicone oil, full color manual, decalsheet.
- perhaps maybe not included: Radio-gear, tyres-wheels, engine, pipeline.
Features:
Chassisplate
4mm much longer difficult anodised chassisplate in 3mm 7075 T6 aluminium , with machined pouches to make flex make lighter. Kick-up angle on front part for stabile landings. Countersunk holes. Slots to obtain the front and back suspension system mounts correctly. Angled edges to improve tightness. Laser engraved Cobra logo design.
Bumper
Aligned with framework kikc-up for precise landings and also to protect front suspension system owner and anti-roll club.
Chassis stiffners
Aluminium longer back stiffner, and composite front stiffner, to give extra stiffness, but nevertheless enable some flex as required.
Central radio / servo mount
Composite radiobox that offers good area the steering and throttle -servo, the receiver and rx battery pack. Your entire installation including linkages might be removed effortlessly and fast in one go, whenever cleaning the car, or doing upkeep. One extra post is added near to the servo for stability.
Servo arms and linkages
The servo fingers have actually really a splined insert to truly have the right fit per manufacturer. The linkages run extremely clean and tight and therefore are accessible to alter settings.
Suspension brackets
wonderfully machined 7065 T6 suspension brackets in anodized, laser angraved. Precision complement the nylon roll center inserts and pivot balls / pins.
Steeringblocks set up
Composite steeringblocks and 14 dgr black colored anodised aluminium C-hubs for accurate steering. Composite 10 and 12 dgr c-hubs will also be included. Spring metal wheel-axles with large size bearings and larger internal with precision threaded aluminum wheel-hubs with offset . Flanged and serrated wheel peanuts.
Front suspension system
Durable oversized lower suspension system fingers in strong composite nylon. Regarding the reduced side the initial shaped downstops screws are mounted. The low shock-mounting pins are assured with somewhat grubscrew from the base.
Front part anti-roll club
The ballraced front anti-roll bar system, consist of a springtime metal fold cable, which led through diff-cases and runs in ballraced metal adaptors. The wire is from the lower suspension system supply, with a captured adjustable threaded pivotball, for really exact and low friction procedure and simple tuning.
Shocktower and bodymounts front part
4.5mm thick carbon shocktower with 5 top positioning holes the shocks and and 6 holes for roll-center roles. 1 found adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to cut back the angle of distinction involving the full total caster and steering airplane. Therefore you should have less bump steer and a truer steering Ackerman through the entire array of suspension
Ackerman plates
due to the design for the steering bell cranks whenever changing the Ackerman you'll not need to modify your steering tie rods. You merely only will need to adjust your end points on your own radio.
straight back suspension system arms
Durable longer oversized reduced suspension system arms in strong composite nylon. On lower component the unique downstops screws are set up. The reduced shock-mounting pins are secured with a small grubscrew through bottom.
Mud-guards
Superlight polycarbonate mud guards mount on brand-new lower suspension arms, and will keep dust from your anti-roll bars transmission and wheels.
Rear uprights installation
Composite uprights with 3 top roll-center roles. Strong metal track-rods with L/R threading and strong balljoints to pre-set camber. Spring steel wheel-axles with big size bearings and bigger internal individuals with precision threaded aluminum wheel-hubs with offset . Rubber dustcovers inside the back again to safeguard the cvd system and keep carefully the lubrication in. Flanged and serrated wheel peanuts to make sure that you'll perhaps not loose a wheel nut in a race.
Mud scrapers
Composite mud scrapers which mount to the new uprights, and will keep carefully the within the wheel cleaner just in case there is muddy conditons.
Straight back anti-roll club
The ballraced front anti-roll club system, consist of a spring steel fold wire, which will be directed through diff-cases and operates in ballraced metal adaptors. The cable is for this paid off suspension system system supply, with a captured adjustable threaded pivotball, for really accurate and low friction procedure.
Shocktower backside
4.5mm thick carbon shocktower, incorporated into a large part part for additional stiffness, with 5 upper placement holes the shocks and 6 holes for roll-center functions.
Wingmount and bodymounts right back
Composite rear wing, with strong nylon adjustable right back bodymounts on wide body-support bridge positioned far enough toward back, to aid the systems in simplest means.
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted in position and made in spring-steel quality. This insures your possibilities to finish 60 minutes extended main event, while fighting for the lead. This relieves strain on the hinge pin when adjusting the kick up, or anti squat. Your pin is absolve to check out any angle without binding.
Shockabsorbers big-bore 16mm
specialized Teflon coated threaded shockbodies with 4mm shock-rods. Rough anodized aluminium screw on difficult anodised shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings in. Shocks utilize big diameter membrames and big diameter o-rings and bushings generate a supersmooth and leak-proof package. Big diameter pistons take place in place by a nut regarding the polished shock-rods tops. Start kind springtime retainer allowing dirt out simple. The shock-shafts are protected by synthetic boots.
RCM shock springs
brief kind colorcoded shock springs are provided for the first standard set-up Springs are grinded flat top and base, and examined individually for stress and length.
Compact geardifferentials
actually lightweight gear differentials with actually smooth steel sintered gears, and steel shaft. Perfect sealing situation with original gasket and o-rings. Severely light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector running in 2 oversized bearings . Drive ratio 4.3:1. This drive ratio provides you with amazing acceleration with the low automobile weight. It truly is a yes victory, to simply help enhance fuel consumption
front side and back cvd-sets
Both front part and back captured driveshafts are increasingly being coupled with CVD system. Durable yet light springtime metal etched driveshafts with difficult metal pins.
Spring metal transmission parts
Leading and rear thin but strong springtime metal cardan shafts link the differentials .
Throttle and brake lever ball cups
assists provide consistent pulling regarding brake lever or carburetor if you undertake not need the linkage completely aligned.
Piston Braking system
Provides more stopping power than you possibly might have ever imagined before with a good deal less servo power. Is fully adjustable with 3 kinds of pistons, solid, O ring kind, spring type. Consequently you'll adjust your bias or stopping feel towards taste in more techniques than in the past.
Fiber Glass disk brake system
Fiber Glass stopping system disks with oversized front disk.
Brake plate springs
could well keep the bathroom distribute offered to insure un-wanted dragging about the braking system discs.
Racing clutch 4 - footwear
allows you to mix and match shoe materials evenly in pairs. Additionally provides more surface contact to insure the engagement. 4 carbon shaped shoes are standard ( alu ones optional).
Coil exhaust cable and alu mount
Helps assist in the best to straight back movement associated with the pipe whenever chassis flex happens. Helps while we are avoiding harm to your exhaust gaskets.
Engine mount
Machined 7075 T6 aluminium engine mount, with side cooling-fins.
Fueltank 125cc
Splash basin on tank top, self centering Fuel tank seal, The vehicle's gas tank seal is angled to self guide its way to the bore with this tank. And provides a seal about the chamfered and flat sides concerning the seal, supplying constant engine performance from pit end to some other. Built-in tank splash guard which helps in avoiding gas from splashing in your air-con filter in case there is an exceptionally excited pit man.
Fueline and stoppers
Kit included topqualiity soft silicone fuelline to obtain connected to tank, vehicle and pipeline, and includes little composite stoppers to shut yr fuelline whenever taking right out tank, engine and or pipeline.
Tank with swiveling nipple and drifting clunk.
Along with the swiveling nipple you are able to adjust the angle which you need you fuel line traveling. Besides the drifting clunk assists when you get inverted. The clunk by gravity will fall back the fuel, using the flexibleness associated with silicone gas tubing.
Oversized Tank with adjustable volume.
Using The insertion of a straightforward screw and amount reducer you should have ROAR, IFMAR and simply about every single other companies appropriate tank quantity.
Low profile air filter
Centralized ac filter design to lessen cab width and height. Versatile plastic boot along with strong nylon case to support the foam elements. Exceptional dense foam airfilter elements to help keep your engines clean inside.
Body
Serpent cab ahead Avenger human anatomy, with movie and masking tape is roofed into the kit.
Right back wing:
minimal variation strong right back white aero right back wing is included for great downforce and right line protection.
Natural oils and oil
The shock-oil, diff oil and many oil is supplied to meet the conventional set-up.
