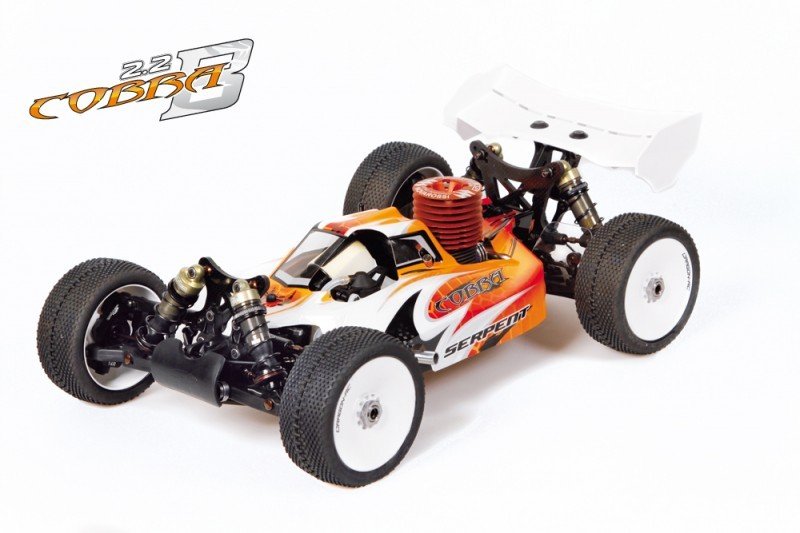

Serpent Cobra 811 Buggy 2.2 1/8 4wd 1/8 scale high end 4wd battle buggy for competition purposes. Brand new elements included Upright buggy 1/8 V2 (2) Wheelaxle buggy v2 (2) Driveshaft buggy 98mm (2) Wheel-axle boot rubber (2) Antiroll club front 2.3mm together with kit continues with - plus 4 chassis - much longer alu back brace - much longer straight back top shaft - hard coated shockcaps - aluminium 14 deg casterblocks The kit includes car, clear human anatomy with mask, right back wing, decal and color manual.
Demands:
- Name: Serpent 811 Cobra Buggy 2.2
- Course: 1/8 scale 4wd buggy
- Type: kit-version, high-end competition
- Wheelbase: 330mm
- Width: 305mm
- Weight: 3.300 grms ( competition ready, depends on radio-gear and motor)
- Clutch: 4-shoe centrifugal, carbon footwear
- Differential: lightweight, little geardiffs , front side, primary and rear
- Brake: piston sort with glassfibre disks
- S hocks: 16mm big bore
- Fueltank: 125ccm, with integrated bronze filter
- Gear-ratio: 4:3:1
- Included: Kit, human body, wing, silicone oil, color manual, decalsheet.
- Maybe maybe not included: Radio-gear, tyres-wheels, motor, pipe.
Features:
- Plus 4 framework: the difficult anodised framework is 4mm considerably longer in to the back, creating a stable rear end, specially better on tracks with quick bumps and rough area. The truly great control on smooth, flat areas is still !
- Longer alu right back brace: the longer alu brace also helps to result in the trunk end more stable. The shorter nylon or alu variation can also nevertheless be fitted.
- Longer back central shaft: to match the longer chassis a protracted right back central shaft is necessary (which is actually exactly like often the main one found in Cobra buggy 1.0 )
- complex coated shockcaps: the hardcoated aluminium shockcaps can withstand the rigors of crashes better
- Aluminium 14 deg casterblocks: The Cobra buggy has many steering at this time which makes it turn quickly. The 14 degree caster obstructs assist smoothen steering away notably, still lot of steering , but easier, less direct, producing a more stable front end.
Chassisplate
4mm longer hard anodised chassisplate in 3mm 7075 T6 aluminium , with machined pouches to create flex make lighter. Kick-up angle on front for stable landings. Countersunk holes. Slots to get the leading and back suspension mounts properly. Angled edges to increase tightness. Laser engraved Cobra custom logo.
Bumper
Aligned with framework kick-up for accurate landings and to protect front suspension system owner and anti-roll club.
Chassis stiffners
Aluminium considerably longer straight back stiffener, and composite front side stiffener, to give additional stiffness, yet still allow some flex as required.
Central radio / servo mount
Composite radiobox that offers good room the steering and throttle -servo, the receiver and rx battery power. All of your installation including linkages is removed effortlessly and fast at once, when cleaning the car, or doing maintenance. One additional post is added near the servo for stability.
Servo arms and linkages
The servo hands have actually a splined insert to really have the right fit per brand. The linkages operate really neat and tight and are also accessible to modify settings.
Suspension brackets
wonderfully machined 7075 T6 suspension system brackets in anodized, laser etched. Precision complement the nylon roll center inserts and pivot balls / pins.
Steeringblocks installation
Composite steeringblocks along with 14 dgr black colored colored anodised aluminium C-hubs for precise steering. Composite 10 and 12 deg c-hubs are included. Spring metal wheel-axles with big size bearings and bigger internal with accuracy threaded aluminum wheel-hubs with offset. Flanged and serrated wheel peanuts.
Front suspension system
Durable oversized paid down suspension system system hands in strong composite nylon. Regarding reduced part the initial shaped downstops screws are set up. The lower shock-mounting pins are secured with only a little grubscrew from the base.
Front anti-roll club
The ballraced front anti-roll club system, consist of a springtime metal fold cable, that will be led through diff-cases and runs in ballraced steel adapters. The cable is for this reduced suspension system system supply, with a captured adjustable threaded pivotball, for extremely accurate and low friction operation and simple tuning.
Shocktower and bodymounts front side
4.5mm dense carbon shocktower with 5 upper placement holes for the shocks and and 6 holes for roll-center jobs. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to scale back the angle of difference involving the amount total caster and steering airplane. Therefore you should have less bump steer and a truer steering Ackermann through the whole collection of suspension system system
Ackermann plates
along with the design of this steering bell cranks whenever changing the Ackermann you will not require to change your steering tie rods. You merely will only should adjust your end points all on your own radio.
Rear suspension hands
Durable a lot longer oversized reduced suspension system system hands in strong composite nylon. Regarding reduced component the unique downstops screws are installed. The reduced shock-mounting pins are secured with a small grubscrew from bottom.
Mud-guards
Superlight polycarbonate mud guards mount towards the newest reduced suspension system system hands, and will keep dust from your anti-roll bars transmission and wheels.
Rear uprights v2 installation
Composite uprights with 3 top roll-center positions. Strong steel track-rods with L/R threading and strong balljoints to pre-set camber. Spring metal wheel-axles with big size bearings and larger inner people with precision threaded aluminum wheel-hubs with offset . Rubber dustcovers in backside to safeguard the cvd system and keep consitently the lubrication in. Flanged and serrated wheel nuts to ensure you will perhaps not free a wheel nut in a race.
Rear anti-roll club
The ballraced front side anti-roll club system, contain a springtime metal bend cable, that can be guided through diff-cases and runs in ballraced metal adaptors. The cable is from the paid down suspension system arm, with a captured adjustable threaded pivotball, for incredibly precise and low friction procedure.
Shocktower back
4.5mm thick carbon shocktower, integrated in to the rear part for extra stiffness, with 5 top placement holes the shocks and 6 holes for roll-center positions.
Wingmount and bodymounts backside
Composite back wing, with strong nylon adjustable straight back bodymounts on wide body-support connection positioned far enough towards the backside, to support the systems in easiest way.
Captured pivot pins and balls and bolted hinge pins. All spring-steel hinge pins are either captured or bolted set up making in spring-steel quality. This insures your opportunities in order to complete one hour or so very long main event, while fighting the lead. This relieves strain on the hinge pin when adjusting the kick up, or anti squat. Your pin is liberated to move to any angle without binding.
Shockabsorbers big-bore 16mm
Tricky Teflon coated threaded shockbodies with 4mm shock-rods. Tricky anodized aluminium screw on difficult anodised shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings in. Shocks utilize big diameter membranes and big diameter o-rings and bushings generate a supersmooth and leak-proof package. Big diameter pistons are held arranged by a nut about the polished shock-rods tops. Start kind spring retainer to allow dust out easy. The shock-shafts are protected by rubber footwear.
RCM shock springs
brief kind colorcoded surprise springs are supplied the 1st standard set-up Springs are grinded flat top and base, and examined independently for anxiety and size.
Compact geardifferentials
Very compact gear differentials with really smooth metal sintered gears, and metal shaft. Perfect sealing example with special gasket and o-rings. Actually light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector running in 2 oversized bearings . Drive ratio 4.3:1. This drive ratio will give you amazing acceleration along with low automobile fat. Its a sure victory, to aid enhance fuel useage
Front and right back cvd-sets
Both front side and right back captured driveshafts are increasingly being along with CVD system. Durable yet light springtime metal engraved driveshafts with hard steel pins.
Spring steel transmission parts
Leading and back thin but strong spring metal cardan shafts link the differentials
Throttle and brake lever ball cups
Helps offer constant pulling concerning the braking system lever or carburetor if you undertake not have the linkage completely aligned.
Piston Braking system
Provides more stopping power than you can have ever truly imagined before with a lot less servo energy. Is also completely adjustable with 3 kinds of pistons, solid, O ring type, springtime kind. Later you can adjust your bias or braking feel towards taste much more methods than formerly.
Fiber Glass disk braking system system
Fiber Glass braking system disks with oversized front disk.
Brake dish springs
will keep the laundry spread willing to accept guarantee un-wanted dragging for the stopping system discs.
Rushing clutch 4 - footwear
lets you mix and match footwear materials evenly in pairs. Additionally provides more area contact to guarantee the engagement. 4 carbon shaped shoes are standard ( alu individuals optional).
Coil exhaust cable and alu mount
Helps help with the key to straight back movement associated with pipeline whenever framework flex takes place. Helps in avoiding problems for your exhaust gaskets.
Engine mount
Machined 7075 T6 aluminium motor mount, with component cooling-fins.
Fueltank 125cc
Splash basin on tank top, self centering Fuel tank seal, The gas tank seal is angled to self guide its technique in to the bore regarding the tank. At precisely the same time provides a seal regarding chamfered and flat edges associated with the seal, providing constant motor performance from pit end to a different. Integrated tank splash guard which helps in avoiding fuel from splashing onto your ac filter in case of an overly excited pit man.
Fueline and stoppers
Kit included topqualiity soft silicone fuelline in order to connect with tank, car and pipeline, as well as includes tiny composite stoppers to close year fuelline when working with down tank, motor and or pipe.
Tank with swiveling nipple and floating clunk.
Due to the swiveling nipple you are able to adjust the angle of which you would like you fuel line traveling. At exactly the same time the floating clunk assists when you go inverted. The clunk by gravity will fall back in the gas, using the flexibility associated with the silicone gas tubing.
Low profile air conditioning filter
Centralized air-con filter design to attenuate cab width and height. Versatile plastic boot and strong nylon situation to guide the foam elements. Exceptional dense foam airfilter elements to help keep your machines clean inside.
Body
Serpent cab ahead Avenger human anatomy, with film and masking tape is roofed in the kit.
Back wing:
minimal version strong back white aero rear wing is roofed for great downforce and straight line stability.
Oils and oil
The shock-oil, diff oil and several grease concerns generally meet with the typical set-up.
