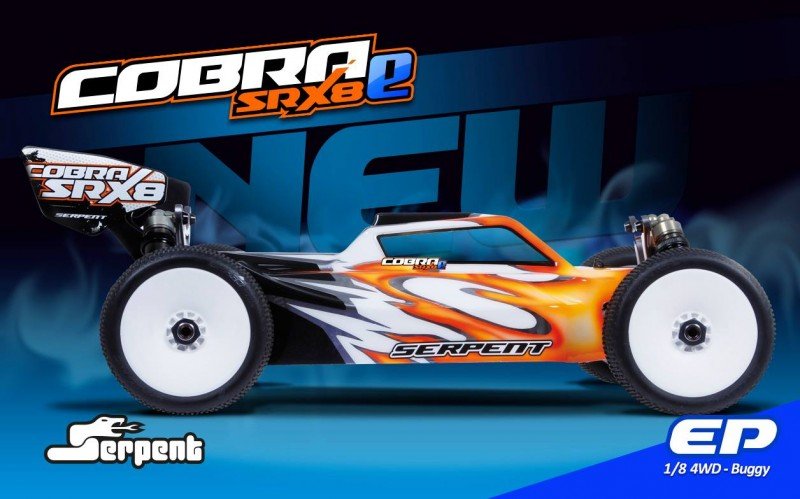

Cobra SRX8E buggy 1/8 EP high-end competition racing E-buggy in block-layout ( update to saddle pack as option). The car was made by Billy Easton in the united states and it is on the basis of the 2016 released Cobra SRX8 gas-powered buggy and stocks your whole front and back suspension system system system, shocks and geardiffs.
Needs:
- Class: 1/8 scale 4wd buggy EP
- Type: kit-version, high class competition
- Wheelbase: 330mm
- Width: 305mm
- Weight: 3.700 grms ( battle ready, is based on radio-gear and elctronics )
Features:
- rough coated 4mm framework 7075 T6 aluminium , flat design edges, with kick up
- Block kind design with long front side centre shaft and fast straight back one
- quick access receiver package and speedo/servo owner
- Smart integrated design framework stiffeners
- Machined aluminium 15 dgr C-hubs, steeringblocks, uprights, shocktowers, one-screw motorholder and centre diff brackets, and suspension system system mounts
- rough coated Big bore shocks 16mm ( emulsion/membrane ) with a high end rushing springs and hardcoated aluminium shock standoffs
- Durable suspension system fingers with top and bottom mounted inserts ( for optional carbon inserts)
- Coated aluminium suspension holders with a varierty of feasible inserts
- curved spring metal pivot pins rotate in pivot inserts for minimal friction
- Angled steering system with adjustable Ackermann and incorporated effective servosaver
- 3 big quantity durable gear differentials with foam compensator inserts
- quick access differential circumstances
- Springsteel transmission components, cvd design drive shafts and back centre dogbones
- plastic dustcovers on front side and back cvds
- Ebony coated 7075 T6 aluminium front part centre shaft
- Ballraced front and back anti-roll pubs with Serpent pivotball linkage system regarding hands
- high quality NSK ball bearings in main areas
- Lightweight hardcoated aluminium track and steeringrods
- minimal profile medium downforce bodyshell and polycarbonate mudguards
- big high downforce moulded right kind back wing and strong monotype adjustable wingmount
Motorholder
- The light machined aluminium engine owner utilizes a slider which are often secured with only one screw, a system which Serpent used from beginning inside 811-Be and 977-e currently. The slider meal is a little bit thicker to set up the motor whilst still being clear the mount whenever sliding. Both slider and mount come grey anodised. In the event of using the seat design, similar motor mount is used, this is the centre insert is turned around 180 levels. So a really smart, integrated and versatile design.
Centre diff holder
- Strong grey coated aluminium machined centre diff owner using one side in addition to the other component is integrated in the motorholder featuring an autumn, which are generally turned around whenever employed for the saddle design.
Speedo/servo holder/front stiffener
- The combined speedo owner / servo holder is a durable product that could fit all best speedo’s and servo’s easily. The complete product with mounted gear can be easily removed for upkeep or cleansing.
Receiver package
- The composite receiver package with address bolts on the chassis and fits all modern receivers, even ones with build in antennas. The receiver industry may also be installed into the front centre part, which is typically utilized in the chair setup simply. A good carbon seems decal towards the top cover.
Chassisplate
- The completely closed SRX8-E chassis is manufactured in 4mm 7075 T6 aluminium and has flat but chamfered edges, countersunk holes and a kick up. Intense coated for durability. The exact same framework is utilized the block and chair design. The chassis tightness arises from the smart design included moulded centre stiffeners as well since the strong and durable sideguards. This package produces the suitable flex faculties required.
Sideguards
- the rest of the side-guard on the block layout features and simple to utilize train and top cover to well guide and protect the longer receiver cable. The sideguards keep debris out and protects against side-impact.
Battery-tray
- Composite block design battery tray with self-adhesive base foam cushioning and side foams for battery power protection. 3 pieces OneTouch straps are included to fasten the Lipo constantly in position.
Centre shaft
- The lightweight long centre shaft is manufactured in 7075 T6 aluminium, black coated and also the fast backside one in Serpent springtime metal, dog bone style. Coupled with actually durable and lightened springtime steel driveshaft adaptors.
Chassis stiffeners
- The sturdy composite chassis stiffener in the back increases as geardiff-cover, and something more stiffener in the centre links the front and end. For more flex that one can be removed, since and also the battery-box already adds tightness because area. The key stiffener is integrated in servo/speedo owner and links towards the top-bracket.
Steering system
- The twin axis steering system with built-in servo saver is set up under an angle regarding inexpensive bump steer and an even more direct steering feel. The axels are formulated in lightweight aluminium.
- The bell crank takes a bearing raced crossbar with zero slop. Its made with all optimal Ackermann to improve the cars driveability.
Sero saver
- it provides a helix to assure the appropriate working regarding the servo saver construction. The servo saver springtime is protected by a dense foam address, to hold debris out. The springtime pre-tension clamp nut may be locked arranged to avoid switching loose. Ackermann changes are created effectively.
Differential instances
- The differential front part and straight back may be eliminated after taking out just 4 screws and the removal of the anti-roll bars, super-easy!
- The strong moulded differential situations that have the differential and offer the shock towers.
Gear-Differentials
- The diff-gearcases are larger in amount allowing more diff oil. The diff now has cavities created specifically for shut mobile foam. This foam will make up for expansion of this oil, that may allow us to fill the diffs more complete, maintaining the gears completely engulfed in oil. The cavity where the gears rest in addition has been redesigned making sure that there isn't low force areas not in the gears. This may keep more oil concerning the gears even in the event spinning at high rpms. This in turn can keep the diff more constant at low and high speeds along with hot or cool.
- Gears 28 / 14 / 44: The difficult steel 28T and 14T satellite gears have actually actually an even more significant basic diameter, to make sure they truly are more in oil, making the diff more consistent, smoother and more powerful. The metal 44T band gear is lighter and contains a good match because of the new 28T gear.
Wheel axels / hex / boots
- The durable Serpent springtime metal wheel axles are captured CVD style now have actually rubber boots to protect the device and bearings against dust and dirt, in order that it will all keep going longer. The wheel hex is a durable hard aluminium variation which fits all popular tires well. The pins in use are 3mm individuals to improve durability.
Steeringblocks aluminium
- The steering obstructs are created in 7075 T6 aluminium since they are anodised in black. These steering blocks had been developed to let you change the Ackermann during the steering spindle and give us the perfect scrub offset in conjunction with the caster block. The bushings push toward obstructs and minimize any undesired play.
C-hubs aluminium
- The 15 dgr c-hubs are manufactured in 7075 T6 aluminium and generally speaking are anodised in black. These available design acutely durable devices permit enough room allowing the optimum steering angle and invite room to mount the plastic dust protectors in the CVD system. As optional you can expect 13, 17 and 19 dgr c-hubs too.
Uprights aluminium
- The uprights are constructed of 7075 T6 aluminium as they are also universal individuals become usage left and appropriate . The latest uprights have actually the roll centre modification in them with tiny inserts. Set screws are acclimatized to tighten up straight down on hinge pin to get rid of any undesirable play. Into the underside 2 threaded holes are made to permit mounting the optional brass weights of 15 gr each for rough conditions.
Wishbones, composite
- Very durable and long moulded wishbones front and right back. The composite is plumped for to obtain sufficient flex as needed. The design has pouches inside top and underside of every arm to mount the conventional moulded insert dishes, and/or optional carbon fibre ones. In that way you are able to pick the best supply flex for every condition. Even different or no inserts front side or right back and combining moulded and carbon inserts can be done. The moulded inserts will stiffen the hands a little, but keeps them cleaner. The carbon ones, or blended with moulded individuals will stiffen the hands a lot. Many selections so as to make use of. The leading wishbones have 2 holes for shock-mounting, the trunk people also 3.
Mudguards
- The mudguards are available in lightweight clear polycarbonate and that may be kept clear, be painted or skinned as preferred.
Suspension system brackets
- The suspension system brackets are CNC machined in 7075 T6 aluminium and grey anodised. They input on chassis for perfect fit. The brackets have precision machined pouches to make use of a full variety of moulded inserts to change the set-up.
Anti-roll bars
- The anti-roll club system is the greatest around. Precision made cable runs in ball raced adaptors regarding front side and back diff case-plates. Super free and stabile. The cable links to a ballpoint which is fitted with a pivot ball toward wishbone. The works!
Shock Towers
- The front and rear shock towers are durable difficult anodised 4.5mm 7075 T6 aluminium devices, CNC machined. 4 positons each for shock-angle and 6 for roll centre.
Shocks
- Big bore surprise with hard coated dual-system caps and difficult coated figures. Durable refined metal 3.5mm rods are employed with difficult anodised caps and threaded shock-bodies. A new seal pack consists of machined bushings and amazing x-rings and it is held in spot with a small inside clip. The surprise pistons are machined delrin products for most of use performance. The surprise -tops in kit can be utilized membrane layer design or emulsion kind with seals.
Shock Springs
- Race shock springtime which are hand-selected and paired. The surprise springs are grinded flat for perfect procedure.
Wing rear black
- the brand new flat type back wing is an effective high downforce device with big side wings
Wingholder backside
- the trunk wing holder is an excellent durable and light one piece moulded product. The owner has 4 various angle spacer to chose from .
Body
- our body the SRX8-E buggy is a medium downforce design with high angle front windshield, wide angled sides and stepped back side to steer the air on the straight back part and back wing. The human body renders plenty space to install electronic devices and fans as required. Produced in quality, clear polycarbonate and it is offered with a practical masking sheet and an unusual Serpent and Cobra SRX8 custom logo decal sheet.
- Cab-forward design body with little fin on top for safety. Sweet moving sides with small straight back upward fins for right back downforce. Top quality polycarbonate. The body has good trim lines for simple cutting. Same the body holes. A masking sheet is included to help with paintjob preps.
Body mounts
- This back human anatomy mount has a rubber pillow inside. Licenses the human body mount to make front part to rear in an obvious effect or crash. This saves the body from breaking or tearing. Leading one is a hard and fast type and it is simple available.
