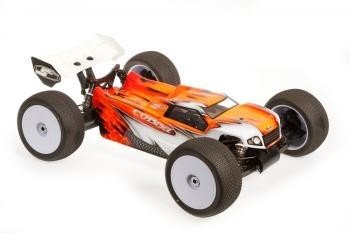

Serpent Cobra E-truggy in 1/8 scale 4wd. Function created electric race-truggy, totally battle spec with carbon shocktowers, big bore shocks, durable transmission, 3 gear-diffs, ultra low longtudinal put batteries, front mounted engine, front mounted speedo , superb E-truggy Cobra human anatomy.
Requirements:
- Name: Serpent Cobra-T E-Truggy
- Class: 1/8 scale 4wd E-truggy
- Type: kit-version, high end competition
- body weight: 3.800 grms ( battle ready, varies according to gear used )
- Differential: lightweight, tiny geardiffs , front, primary and rear
- Shocks: 16mm big bore
- Gear-ratio: 4:3:1
- Wheels: perhaps not included; automobile created for 0-offset tires
- Included: Kit, human anatomy, wing, silicone oil, color manual, decalsheet.
- Not included: Radio-gear, tyres-wheels, motor, speedo, batteries.
Features:
Framework
really slim 3mm 7075T6 aluminium chassis, with machining about the top face to make it lighter in strategic places as well as get a handle on flex. Kick-up front side for appropriate landings. Angled part to improve cornering approval, and safeguarded and easy mounting part guards with 5 screws. Countersunk holes, pouches to place the suspension system brackets. Grey anodized with Cobra Logo engraved. In general the Truggy is made to keep the weight really primary and near the centerline as possible, create an excellent overall stability.
Side guards / battery pack trays
Durable shaped composite side guards / battery trays that proceed with the style of the framework, and mount with 5 screws each component. Front and sides high enough to hold the dust out. The guards/trays create countless protection. The batteries are installed in longitudinal fashion, keeping the additional fat low inside automobile. The battery power trays function hinged covers, to keep the batteries well put up, but are easy to begin for access.
Motormount:
The motor lies inside many optimal position inside automobile, keeping motor-forces and transmission elements / positioning at heart. Just one-screw must secure the BL engine, inside the nicely created durable machined aluminium motormount. Place for additional motor-cooling available as needed. The space the motor permits mounting all popular buggy and (monster)truggy motors.
Composite chassis braces
Allows the chassis to flex which assists enhance bump maneuvering. Front and backside.
Front bumper
Well curved front side bumper, exactly like on the Cobra buggy, to guard the best anti-roll club, suspension system brackets, and flows inline with kick-up chassis front side for safe landings.
Front suspension system
Extended and durable composite reduced wishbones, combined with top spring-steel trackrods. 2 reduced shock-mount roles. Downstops may be used as needed. Pivotball kind anti-roll bar rods.
Front steering / servo saver / angled
Innovative angled front steering construction to cut back the angle of distinction involving the total caster and steering airplane. Therefore you will have less bump steer and a truer steering Ackermann through the complete collection of suspension system.
Adjustable springtime packed servo-saver system with interchangeable Ackermann dishes. Utilising the design of the steering bell cranks whenever changing the Ackermann you will not have to adjust your steering tie rods. You merely will simply need certainly to adjust your end points on your radio.. quite simple to gain access to and set-up.
The Inboard Bell crank keeps the lever and linkage in the car. It will assist in the prevention of harm to the steering system. Zero scrub radiuses on steering knuckle, assists in reducing the jacking impact developed by your steering knuckle offset. It gives a direct dropped while keeping the vehicles framework more degree while turning.
The leading roll center are changed quickly by moving the steering knuckle shims along with their appropriate places.
Topped of with a robust 5mm carbon fibre top-plate.
Front steering-block / c-hubs
actually durable front part steeringblock / C-hub installation .
Drive-shafts
Long and lightweight springtime steel products with pushed in metal pins, laser-engraved. Exact same size front and backside.
Wheel-axles / wheel-nut
Serpent springtime steel threaded wheel-axles with lightweight grey anodised aluminium wheel-nuts ( flanged and serrated) to keep the massive truggy wheels/tyres on course.
Captured universal bones
the style right here ended up being simple. Guarantees you'll complete a race without loosing a pin or set screw. All components, axles and drive train elements have capture pins
Front shocktower
Light, strong and durable machined 5mm carbon fibre devices with 5 positions for shockangle.
Shock-set front part and rear
16mm big bore shocks, with difficult anodized precision threaded shock-bodies. Shockboots in silicone synthetic to keep the dirt down . Chromed shock-shafts for supersmooth shockaction . The larger o bands offer less general stress and an improved seal without dragging about the surprise shaft.
Suspension brackets alu
The hinge-pins / hingepin balls are captured in precision machined, unique shaped 7075 T6 aluminium, grey anodized with indicated sort. They capture the nylon roll-center inserts.
Anti-roll club / anti-roll bar linkage with pivotball
The anti-roll pubs front and rear are made out of top quality special springtime metal, and generally are captured regarding diff-cased in ballbearing for perfect guidance and control.
Receiver field / servo mount / speedo mount
Composite one piece radiobox to securely mount servo? s, speedo and receiver. For optimum stability the light receiver fits the top-case effortless, with a little opening to allow cable to protrude. The speedo seats really low on a plate right above the framework, so quick cables might be used to the engine. The servo is mounted in a straight fashion.
Central diff
Optimised primary gear-diff with 50T super-hard spur-gear . Tiny, compact design to scale back rotating mass towards optimum.
Transmission shafts
Durable but light and slim Serpent springtime metal, laser engraved shafts.
Front and back diff
Optimised gear-diff with 50T superhard spur-gears . Smaller, compact design to lessen rotating mass towards max. Exact same variation front and back. Diff coupler in springtime metal seated in big bearings for durability.
Back shocktower
Light, strong and durable machined 5mm carbon fibre device with 5 roles for shockangle.
Right back uprights
Durable composite back uprights with 3 camber jobs
Mudguards
In moist or moist dust circumstances these mud guards lessen and dust after a large part drive shafts and shocks. Follow line of wishbone perfectly.
Rubber shoes for shafts
Keeps the dirt out and the lubrication in. Reduces usage.
Suspension brackets back
Well machined 7075 T6 aluminium with eccentric inserts to change set-up.
Back wing mount
The composite back wing mount, allows to change the angle of this straight back wing.
Right back wing
Two phase high down force wing, has two levels of angle, that also includes 2 fins. Helps improve down force and straight line capability
Bodymounts
Nylon bodymounts with wider sitting the human anatomy, firmly fastened toward shocktowers.
Super Minimal profile Body
Improves look including keeps the profile low.
Decals
Serpent and Cobra-T logo decals in black-white print
Oils / grease
Kit includes quality silicone oils the diffs and shocks and a container of oil.
