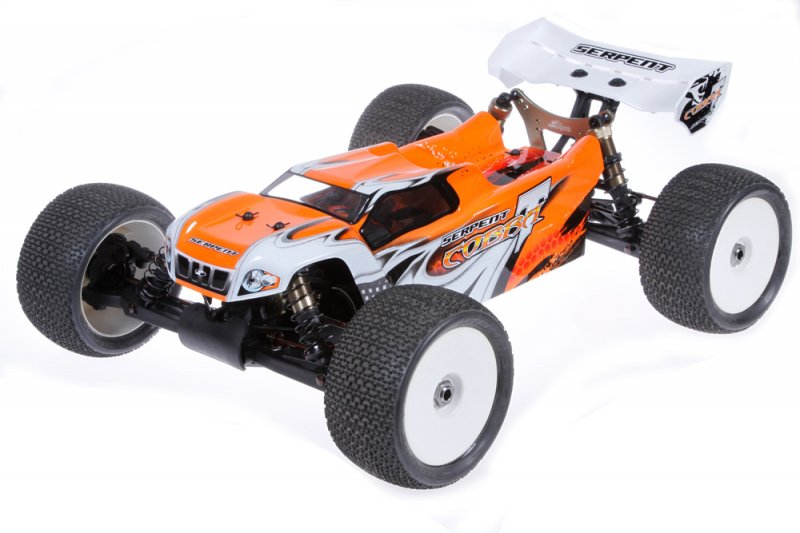

Serpent SER600039-O Serpent Cobra E-Truggy RTR Orange [SER600039-O]

Price:

AUD$557.87

Brand:

Serpent

Model:

SER600039-O

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Off-Road - Truggy - Electric Powered category

Write a review

Description

Introduction

The Serpent Cobra E-Truggy in RTR trim is a perfect basher sort vehicle that may take countless beating and its in addition an incredible package to start out genuine battle ! Based on the Cobra E-Truggy it's the outright rate, great control, reliability, rigidness and durability you need.

The RTR package is actually dialed:
-factory assembled rushing chassis
-prepainted and precut low type truggy human body and large composite backside wing
-premounted truggy tyres/wheels/inserts
-pre-set 4S to 6S capable waterproof 150A speedo ( DragonRC)
-2000kv brushless longbody engine (DragonRC)
-Digital 2.4ghz transmitter (DragonRC)
-Metal gear servo 16kg ( DragonRC-Savox)
-3 oilfilled geardifferentials
-Big bore shocks with rubber dustboots and machined aluminium shocktowers
-Spring steel transmission parts and turnbuckles, front and back cvd driveshafts
-Front and back anti-roll bars
-Large battery-cases with easy felcron straps
-Machined aluminium chassisplate
-Fully ballraced
-Batteries the vehicle and transmitter are not included

The bodyshell is available in orange, red, green, blue and red, including an obvious type.

Serpent offers a multitude of optional components because of this car to improve performance, lighter and even for additionally nicer look.

Main features

Car
Fully expert pre put together and pre-set framework and electronic devices.

Transmitter
DragonRc 2.4 GHz steeringwheel kind transmitter with lots settings and good range. Includes little and light receiver.

Speedo
DragonRC waterproof speedcontroller with an enormous 150A capacity to control the brushless motor and 4S or 6S battery pack power

Motor
DragonRC longbody 2000kV brushless motor with effortless colorcoded connectors

Body
Prepainted and pre-cut low e-Truggy human body, in 4 main colors orange, red, Green and Blue. ( in addition clear one available as optional)

Tyres
Premounted battle prepared tyres / tires with soft compounds and pintype profile for amazing grip.

Chassis
Very narrow 3mm 7075T6 aluminium framework, with machining regarding the top face making it lighter in strategic places also to control flex. Kick-up front part for appropriate landings. Angled component to improve cornering approval, and safe and easy mounting part guards with 5 screws. Countersunk holes, pockets to place the suspension system brackets. As a whole the Truggy is made to help keep the fat very main and towards the centerline as you are able to, to make an excellent general security.

Side guards / battery pack trays
Durable shaped composite side guards / battery trays that continue with all the variety of the framework, and mount with 5 screws each side. Front and edges sufficient to keep the dirt away. The guards/trays create countless safety. The batteries are mounted in longtudinal fashion, keeping the extra weight suprisingly low to the vehicle. The battery trays features user-friendly Serpent noticeable felcron TM straps to secure the batteries in position. Fits 2S and 3S batteries.

Motormount:
The motor is put in most optimal place inside the vehicle, maintaining motor-forces and transmission components / placement in your mind. Simply one-screw is important to secure the BL motor, into the nicely designed durable machined aluminium motormount. Place for extra motor-cooling available as required. The space for the engine allows mounting all popular buggy and (monster)truggy motors.

Composite chassis braces
Allows the framework to flex which assists improve bump control. Front and rear.

Front bumper
Nicely rounded front side bumper, the same as in the Cobra buggy, to safeguard the leading anti-roll bar, suspension system system brackets, and flows inline with kick-up framework front side for safe landings.

front side suspension
Very long and durable composite lower wishbones, coupled with upper spring-steel trackrods. 2 reduced shock-mount functions. Downstops can be used as needed. Pivotball type anti-roll club rods.
.
Front steering / servo saver / angled
Innovative angled front part steering setup to minimize the angle of difference between your amount total caster and steering airplane. Consequently you should have less bump steer and a truer steering Ackerman through the complete choice of suspension.

Adjustable springtime packed servo-saver system with interchangeable Ackermann dishes. With all the design from the steering bell cranks whenever changing the Ackerman you'll not must adjust your steering tie rods. You merely will still only need to adjust your end points on your radio.. fairly simple to get into and set-up.

The Inboard Bell crank keeps the lever and linkage in the automobile. It will help in preventing injury to the steering system. Zero scrub radiuses on steering knuckle, helps reduce the jacking impact created by your steering knuckle offset. It provides a more direct dropped while maintaining the vehicles chassis more level while turning.

The front roll center are changed quickly by going the steering knuckle shims making use of their appropriate locations.

Topped of with a good composite top-plate.

Front steering-block / c-hubs
Very durable front side steeringblock / C-hub installation .

Drive-shafts
Long and lightweight springtime metal devices with pushed in metal pins, laser-engraved. Exact same size front side and rear.

Wheel-axles / wheel-nut
Serpent springtime metal threaded wheel-axles with lightweight grey anodised aluminium wheel-nuts to keep the huge truggy wheels/tyres on program.

Captured universal joints
Guarantees you certainly will complete a race without loosing a pin or set screw. All elements, axles and drive train components have capture pins

Front shocktower
Light, strong and durable machined 5mm aluminium products with 5 jobs for shockangle.

Shock-set front part and rear
16mm big bore shocks, with difficult anodized precision threaded shock-bodies. Shockboots in silicone synthetic to keep the dust away . Chromed shock-shafts for supersmooth shockaction . The larger o bands provide less overall pressure and an improved seal without dragging in the shock shaft.

Suspension brackets
The hinge-pins / hingepin balls are captured in durable composite suspension system brackets . These capture the nylon roll-center inserts.

Anti-roll club / anti-roll club linkage with pivotball
The anti-roll bars front and back are made of top quality special spring steel, and are also captured regarding diff-cased in ballbearing for perfect guidance and control.

Receiver package / servo mount / speedo mount
Composite one piece radiobox to securely install servoï¿½ s, speedo and receiver. For optimum security the light receiver fits the top-case effortless, with a small opening allowing cable to protrude. The speedo seats low on a plate just above the chassis, therefore fast cables enable you to the engine. The servo is installed in a vertical fashion.

Central diff
Optimised primary gear-diff with 50T super-hard spur-gear . Tiny, compact design to cut back rotating mass on max.

Transmission shafts
Durable but light and slim Serpent springtime metal, laser engraved shafts.

front side and back diff
Optimised gear-diff with superhard spur-gears . Really small, compact design to lessen rotating mass on maximum. Very same version front side and right back. Diff coupler in springtime metal seated in big barings for durability.

Rear shocktower
Light, strong and durable machined 5mm aluminum item with 5 roles for shockangle.

Rear uprights
Durable composite back uprights with 3 camber positions

Suspension brackets rear
Durable composite devices with eccentric inserts to enhance set-up.

Rear wing mount
The composite rear wing mount, enables to improve the angle related to back wing.

Rear wing
Two period high down force wing, has two quantities of angle, that also includes 2 fins. Helps improve down force and right line capability

Bodymounts
Nylon bodymounts with wider sitting our body, securely fastened on shocktowers.

Super Minimal profile e-Truck Body
Improves look including keeps the profile minimum. Comes precut and prepainted.

Decals
Applied towards human anatomy.

Oils / grease
Car is built with high quality silicone oils the diffs and shocks and black colored oil. Threadlock utilized in which needed.

Manual
Full color manual showing the auto, specs, directions and exploded views. The transmitter and speedo have actually in fact small split manuals included.

Box
Full color protective package to re-use for car transport or tyres.
