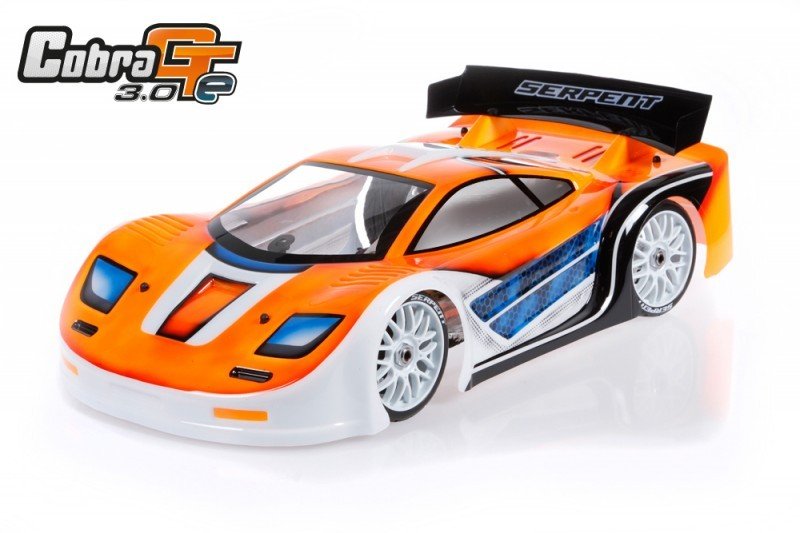

Serpent Cobra onroad 1/8 scale GT car in 3.0 , electric variation. Based regarding Cobra platform, designed to perform on asphalt tracks. Higher end rushing framework with 7075-T6 alu framework, carbon fiber shocktowers, durable spring-steel drivetrain, 3 geardiffs, low longitudinal battery-boxes, captured foam bumper, the works.
Demands:
- Class: 1/8 scale 4wd GT -e
- Function: top end competition
- Suspension: completely independent
- Drivetrain: cardan shafts, 3 gear diffs
- Shocks: RCM shocks with membrane layer
- Wheelbase: 328mm
- Width: 305mm
- Handbook: color with installation actions and exploded views
- Decals: 2 sheets
- Perhaps not included: human anatomy, radio gear, speedo, engine , tyres-wheels.
Features:
- New front side front part and front rear aluminium suspension system holders
- New Alu c-hubs in 6 degree variation
- brand new aluminium, uprights for new backside geometry
- brand new alu shockabsorber risers front and back
- brand new 4.5mm carbon shocktowers front and rear
Brand brand new front side front part and front back aluminium suspension system system holders
they're created to change the piviot pin angle, therefore the reduced wishbones is supposed to be alot more straight, which geomery suits onroad battle better.
Brand new Alu c-hubs in 6 degree variation
the modern alu c-hubs are essential to produce maximum utilization of the new pivit pin / wishbone angle. CNC-machined from 7075 T6 alumnium, laser engraved and black anodised units.
New aluminium, uprights for new back geometry
To permit a much better onorad geometry we desigend these brand-new CNC machined aluminium uprights, black anodised and laser etched.
Brand new alu shockabsorber risers front and right back
Amazing alu shocktowers front side and back
The durable machined alu shock-risers front and right back enable an even more onroad aimed angle of shockabsorber creating more basic hold and much more predictable cornering. The most recent 4.5mm reduced carbon fiber shocktowers additionally take care of the brand new surprise perspectives, with either 5 holes for further fine-tuning.
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pouches produce flex and or make lighter. Kick-up angle on front as need because of the race-rules. Countersunk holes. Slots to uncover the leading and rear suspension system mounts properly. Angled sides to improve stiffness Laser engraved Cobra GT logo.
Bumper
Captured foam bumper set, with wide foam bumper and strong top and paid down bumper-plate.
Chassis stiffners
Composite stiffner front side and rear, to supply additional tightness, but still enable some flex as needed.
Radio-box
Composite radiobox that gives area the up-right steering-servo, the receiver and adequate area the speed-controller. The entire installation including linkages could be taken off effectively and fast all at one time, whenever cleaning the auto, or doing maintenance.
The key eyecatchers will be the exceptionally low laydown longtudinal put battery-packs at each and each element of this vehicle, being the primary side-guards, firmly fastened with a flip-lid, for effortless and fast battery power customizations. The extra weight reduced in the auto and in to the right position, well-balanced. The Lipo holders conform to ROAR legal packs / proportions.
Servo hands and linkages
The servo hands have actually a splined insert to have the right fit per manufacturer. The linkages runs actually clean and tight and are usually accessible to modify settings.
Suspension brackets
Beautifully machined 7075 T6 suspension system brackets in anodized, laser engraved. Precision complement the nylon roll center inserts and pivot balls / pins. The GT 3.0 front suspension system brackets result in the pivot-pin and reduced supply more horizontal, which improves managing and steering.
Steeringblocks installation
Composite steeringblocks and alu 6 dgr C-hubs for accurate steering. Spring metal wheel-axles with big size bearings 8x18x5 and 15x21x4 with precision threaded aluminium wheel-hubs with +3 offset . Flanged wheel peanuts to make sure you will not free a wheel nut in a race.
Front suspension system
Durable oversized paid down suspension fingers in strong composite nylon. About the lower part the unique downstops screws are installed. The low shock-mounting pins are secured with a little grubscrew through base.
front side anti-roll club
The ballraced front side anti-roll club system, include a spring metal fold cable, which is guided through the diff-cases and run in ballraced steel adaptors. The cable is from the lower suspension supply, with a captured adjustable threaded pivotball, for actually accurate and low friction procedure.
Shocktower and bodymounts front / alu shock-risers
new 4.5mm thick carbon shocktower with 5 upper positioning holes the shocks and and 6 holes for roll-center positions. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops. The durable machined alu shock-risers appropriate right in front enable a far more onroad aimed angle of the shockabsorber creating more general hold and more predictable cornering.
Angled steering system / servo saver
The bell cranks are angled to reduce the angle of distinction between your full total caster and steering airplane. Consequently you should have less bump steer and a truer steering Ackermann through the entire array of suspension
Ackermann plates
Utilizing the design from the steering bell cranks whenever changing the Ackermann you won't must adjust your steering tie rods. You simply will simply must adjust your end points on your own radio..
Rear suspension system fingers
Durable oversized lower suspension system arms in strong composite nylon. Inside reduced component the initial downstops screws are installed. The paid down shock-mounting pins are assured with a small grubscrew from base.
Rear uprights construction
fresh aluminium, black anodised and laser etched uprights with 3 top roll-center jobs. Strong metal track-rods with L/R threading and strong balljoints to pre-set camber. Spring steel wheel-axles with large size bearings 8x16x5 and 13x19x4 with accuracy threaded aluminium wheel-hubs with +3 offset . Rubber dustcovers inside backside to protect the cvd system and keep carefully the lubrication inside. Flanged wheel peanuts to ensure that you are going to perhaps not free a wheel nut in a race.
straight back anti-roll bar
The ballraced front anti-roll club system, include a spring steel bend cable, that's guided through diff-cases and runs in ballraced steel adaptors. The cable is for this reduced suspension system supply, with a captured adjustable threaded pivotball, for excessively accurate and low friction operation.
Shocktower back / alu shock-risers
groundbreaking 4.5mm dense carbon shocktower, incorporated to the trunk part for extra tightness, with 5 top placement holes for the shocks and 6 holes for roll-center jobs. The durable machined alu shock-risers inside back allow for a far more onroad aimed angle for the shockabsorber producing more basic hold and much more predictable cornering.
Wingmount and bodymounts straight back
Composite back wing, with strong nylon adjustable backside bodymounts on wide body-support bridge placed far enough towards back, to aid the figures in simplest method.
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted put up making in spring-steel quality. This insures your possibilities in order to complete an hour or so or more long main event, while fighting the lead. This relieves pressure on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to rotate to virtually any angle without binding.
Shockabsorbers big-bore 16mm
Intense Teflon coated threaded shockbodies with 4mm shock-rods. Ebony anodized aluminium screw on shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings in. Shocks use big diameter membranes and big diameter o-rings and bushings to come up with a supersmooth and leak-proof package. Big diameter pistons take place constantly in place by a nut regarding the polished shock-rods tops. Begin kind springtime retainer to allow dust out simple.
RCM shock springs
Quick type colorcoded surprise springs are supplied the very first standard set-up Springs are grinded flat top and base, and examined separately for stress and length.
Compact geardifferentials
actually compact gear differentials with really smooth steel sintered gears, and steel shaft. Perfect sealing example with exclusive gasket and o-rings. Severely light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector operating in 2 oversized bearings 8x19x6 and ballbearing-13x19x4.
front side and right back cvd-sets
Both front part and right back captured driveshafts are being utilized in combination with CVD system. Durable yet light spring steel etched driveshafts with difficult metal pins.
Spring metal transmission parts
Leading and right back slim but strong springtime steel cardan shafts link the differentials along with the gearbox area.
motor mount
Machined 7075 T6 aluminium motor-mount with one-screw fixation and simple slider system. Flex-free and extremely strong motormount. The area for the engine enables a maximum motor-length of 68mm, which covers hottest engines.
Oils and oil
The shock-oil, diff oil and some oil comes to generally meet the standard set-up.
