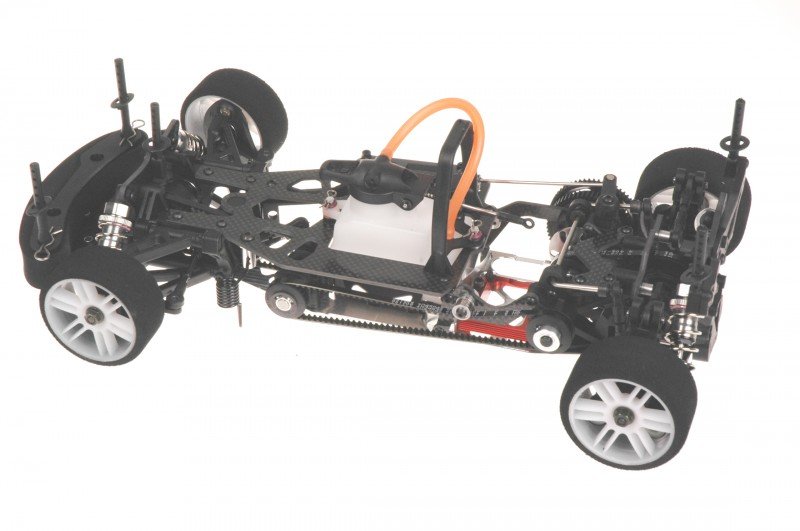

Serpent is very happy to announce the production of 09 spec connected with Championship winning Serpent 720 framework. Keeping the automobiles race winning geometry and currently high specification, this year's variation will now find numerous great option components as standard.
Specs:
- Chassis: 4mm aluminum, black anodised 7075 aerospace quality, CNC machined, includes metal dish
- Suspension: Independant double wishbone suspension system system.
- Radio dish: 2mm carbon fibre, CNC machined
- Shock absorbers: Pre-assembled RCC shock absorbers
- Gas tank: 75cc design with 'AFL' tank lid
- Wheel base: 257mm +/- 1.7mm
- Purpose: 200mm Touring Car Track Racer
- Drive system: 4wd through kevlar strengthened timing belts
- Track-width front: 200mm
- Front axle: Pre-assembled Gear Differential / Optional a great way axle
- Track-width back: 200mm
- Course: 1/10th Scale 200mm
- Rear axle: Pre-assembled Gear Differential
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width, Roll centers, Belt tension
- Body fat: 1.695kg (according to radio gear)
- Max. speed: 100km/h +
- Gearbox: Lightweight 2-speed with interchangeable fine pitch gears
- directions: color instruction manual, reference guide and setup guide
- Acceleration: 0-90km/h : 3.0 moments
- Clutch system: Centax-IIwe clutch system with interchangeable difficult anodized aluminum fine pitch gears
- Not included: engine and pipeline, body, radio gear, 5-cell battery power, tires
Features:
- LCG chassisplate constructed from aerospace quality 7075 T6, lowered, possesses pouches for carbon stiffners / metal lots.
- Harder nylon parts
- Spring steel cvds front
- New product fueltank, more heat stabile
Front bumper and Body mount
The bumper dish is made of a top-notch composite that's effect resistant. This is really all protected by the lower profile foam bumper that will withstand huge effects whilst still being protect your vehicle. Leading bumper mount could possibly be the mounting point leading body articles. Nose block
The nose block helps you to ensure that the downstop settings aren't modified by impacts. This piece also doubles as a neat individual transponder mount.
front part anti-roll club
The front anti-roll bar makes use of the effective blade system. The mounting levers are acclimatized to adjust both upstop and downstop settings.
Steering Blocks Evo 2
offered the 720 '09 kit are these Evo2 steering obstructs, that are supplied in 2 sets with 0 and 1mm kingpin angle. These brand new obstructs have really 1mm more offset set alongside the standard versions, which provides the automobile a more smooth steering design. The 0-degree obstructs work nicely on medium traction areas even though the 1-degree obstructs function better on low to moderate degree traction areas. However if you swap the remaining and right 1-degree obstructs, the vehicle will probably then function better in high hold tracks, in reality reducing the consequences of hold roll, while in addition giving the auto smoother, more constant, cornering.
Composite servo saver for the Serpent 720 with optional Ackerman inserts.
Servo Saver with adjustable Ackerman
an instantaneous replacement about the initial servo saver, this completely new variation permits the specific individual to effortlessly adjust the automobiles Ackerman by using inserts ergo eliminating the requirement to eliminate the whole create. Users can now discover the the most suitable setting by effectively switching relating to the 4 various Ackerman settings available nowadays to them.
Spring steel driveshafts
The 720 '09 comes offered top springtime Steel drive shafts effective at withstanding constant punishment; these shafts are ultra durable and very rigid enabling you to put all your capacity to the tarmac. The trunk associated with automobile utilizes dogbones once the front side utilizes the supplied CVD shafts.
Aluminium Pivot Balls
The ultra-lightweight but good aluminium pivot balls offer a big fat saving in the steel variants without compromising power, therefore we have really supplied them as standard.
Adjusting nut for pivot balls
These new adjusting peanuts are produced from Nylon and exchange the last aluminium nut with synthetic insert that'll not merely makes installation easier, furthermore reduces unsprung fat. Reducing the components utilized now also decreases part play so that it creates an even more precise handling car and also as the material utilized is self-lubricating the motion the pivot ball will continue to be smooth throughout use.
The auto also comes given orange anodised aluminium hex wheel adaptors that make sure that flex is eradicated to the drive train whenever under stress.
Chassis Dish
The framework meal, constructed from aerospace quality 7075 T6 alu has been clear anodised and features a machined recess to install the provided front metal dish, a selection that will help eliminate snap oversteer and enables the automobile to part faster and smoother. This 4mm thick aluminium meal features countersunk screw holes throughout the bottom to ensure that no screws have been in experience of the floor. The chassis additionally features chamfered edges to provide greater approval whenever groing through curbs or when operating low towards the ground, chassi is recessed in all area;s for reduced center of gravity, LCG.
To keep the centre-of-gravity as low so when centralised as you possibly can, the framework also houses the car's battery power.
vehicle's gas tank
Serpent has included a greater as a type of their 75cc vehicle's gas tank within the 720 '09 which include been produced from a far more present more powerful material. The milky white colored tank will now take over more opposition to shattering in the eventuality of huge effect. The tank is top-mounted utilizing rubber-covered aluminium mountings to isolate the tank from vibrations, and small human anatomy videos make it possible for fast & effortless decrease.
Enhancing regarding concept that Serpent pioneered, their famous AFL gas tank lid is updated yet again. Produced from synthetic, the newest seal (softer silicone rubber) is actually shaped to generate a perfect seal round the opening of tank and enabling the tank lid to shut totally.
Chassis Stiffeners
Rigidity is essential in the present day framework, and this vehicle is not any exception. Showing graphite side dishes, a technology that Serpent pioneered, this vehicle is ultra rigid and allows the surprise absorbers and suspension system elements getting outcomes better by reducing unwelcome framework flex.
The remaining framework stiffener also doubles since the mounting point for the part gear tensioner.
Alu X-Bracket and Single piece motor mount
An aluminium radio meal X bracket also comes as standard, that do not just looks great and helps enhance rigidity for the vehicle, while finally, to ensure the motor mounting points are kept aligned, reducing pressure on the crankcase, the 720-09 is supplied utilizing the solitary piece orange anodised motor mount.
High Res pic - Exhaust mounting springtime
Exhaust mounting spring
The exhaust mount is a spring-type mounting wire that isolates vibrations. The wire mount is attached to the radio dish by a mounting post and guaranteed in destination with a collection screw.
buttocks
The rear end the Serpent 720 '09 features strong 1-piece reduced wishbones and completely adjustable uprights. As with every the wishbones in the automobile, the lower wishbones can be utilized on both remaining and right sides, minimizing the number of extra elements needed seriously to cause track. A large part upright features robust pivotball mounting points regarding base and two top camber link mounting holes for fine-tuning rear roll centre.
Rear anti-roll club
The trunk anti-roll bar the Serpent 720 is ball-raced for extra accuracy. Stiffness is effortlessly and quickly adjustable by changing the linkage mounting points regarding paid down wishbones or as an alternative by changing the career for the ball joint pivot point into the roll club itself.To further stiffen a large part end of car, we've produced an exceptional S-shaped carbon brace which spans the 2 straight back bearing blocks.
back top wishbone
The Serpent 720 continues to utilize an adjustable linkage because it has ended up being solid and lightweight, efficiently handling effects, and will also be offering improved and easy modification. Both internal mounting jobs of each camber hyperlink provide a simple way to change camber enhance.
Brake Disk
Precision machined disk brake, because of its exemplary cooling characteristics, this ventilated brake disk permits smooth and accurate braking. Its additionally actually lightweight and is particularly cool searching. Quick and easy effective stopping energy.
Braking system
The 720's braking system is battle proven and it is sold with an individual ventilated brake disk to enhance braking performance and persistence.
straight back human anatomy mount
The simplicity of use of the end concerning the 720 means you'll take away the back axles with just 6 screws. This setup in addition causes it to be a breeze to modify the trunk reduced roll centre roles. Another great function for the backside end would be the fact that human body mounting articles are not any longer mounted directly to the carbon shock tower but are as an alternative mounted to a versatile composite human body mount dish. This reduces the opportunity of shock tower breakage in big accidents.
Gear Differentials
The supplied gear differentials give smooth differential action and high durability, and gear slippage is non-existent as a consequence of geared design. Performance and tuning characteristics are often modified via gear natural oils of varied thicknesses.
As an extra additional, the Serpent 720 '09 includes the previously optional front a great way system too the main one means lock set making it into a great axle, ensuring your vehicle are ready for many conditions.
Centax clutch III
Ofcourse the Serpent created Centax clutch normally incuded into the Serpent 720.High quality gears, strong and durable clutch-housing, in conjunction with shaped clutch-shoe plate, high hold red shoe and greatest quality equipment.All the punch you will possibly require.
Lightweight transmission
The 720 '09 includes a brand new smaller diameter flywheel but continues to utilize the same lightweight and well-tested transmission as in earlier versions. Featuring a fantastic gear pitch and lightweight elements, the effect is means better acceleration while the race-winning Centax-IIwe clutch system is effortlessly modified and executes brilliantly.
RCC Shock Absorbers
The RCC shock absorbers could be the smoothest and easiest to create shocks ever produced. Machined from steel and distinctive for the reason that the shock systems just open on base half, they have been really easy to construct. They include a set piston with no more make use of a diaphragm just like the last shocks. The end result is an ultra-smooth and air-free shock absorber thanks to the self-bleeding system incorporated in to the design.
Another great benefit is that these shock absorbers come pre-assembled in the kit, to make sure you require only consist of surprise oil.
Bearings
given orange-sealed top-quality lightweight bearings throughout, the drive train is fairly efficient and runs extremely effortlessly.
Drive Belt System
The 720 '09 activities a now tried and tested drive ratio that means it is suited to a few songs. The vehicle includes 3 slim, low friction Kevlar belts.
Modification
The Serpent 720 had been created using the maximum amount of competition in mind and is for this reason totally adjustable. The racer can change numerous settings efficiently and effortlessly, for instance the suspension system geometry. Upstops and downstops can be simply accessed and modified for optimum control, because can the automobiles roll facilities at both front and backside of the automobile. Castor, toe, and camber will also be effortlessly adjusted.
Wheel Axles
The wheel axles are made from the highest quality metal. Sporting a threaded shaft to mount the wheel, these parts are built to last. The 720 '08 comes with 2 back wheel axles created for dog bones whilst the front drive shafts compensate section of the provided CVD system.
