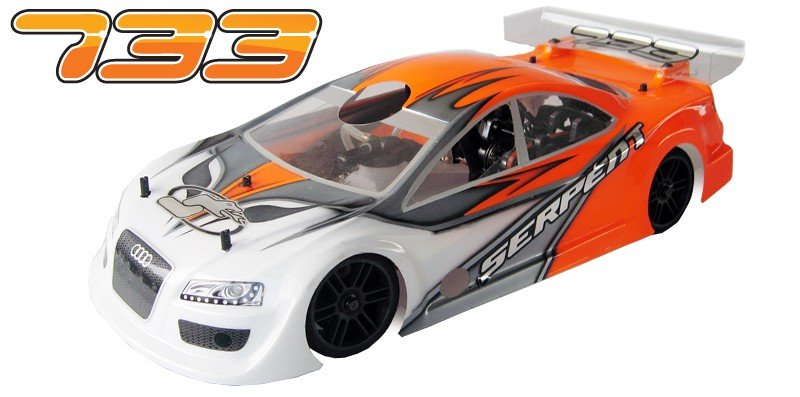

The Serpent 733 has a fresh, really distinct open design and sets brand new demands in 1/10 scale race-chassis design. Numerous revolutionary and practical solutions are build into the unique design, to make setup, set-up, rushing and upkeep a joy.
Requirements:
- course: 1/10th Scale 200mm
- Purpose: 200mm Touring vehicle Track Racer
- Chassis: 3mm aluminum, 7075 aerospace quality, CNC machined
- Suspension: Independent increase wishbone suspension
- Broadcast dish: 2.5mm carbon fiber, CNC machined
- Shock absorbers: Pre-assembled RCCX surprise absorbers
- Gas tank: 75cc design with 'AFL' tank lid
- Drive system: 4wd through kevlar strengthened timing belts
- Clutch system: Centax-IIwe clutch system
- Front axle: Gear Differential (Optional A good way axle )
- Back axle: Gear Differential
- Gearbox: Lightweight 2-speed with interchangeable fine pitch gears
- Body fat: 1.695kg (centered on radio gear)
- Max. price: 105km/h +
- Acceleration: 0-90km/h 3.0 moments
- Instructions: Full color guide, reference guide
- Perhaps perhaps not included: Engine and pipeline, human anatomy, radio equipment, battery pack, tires
Features:
Geometry
Brand new geometry and roll-centers, lower center of gravity and modified weight-positioning for enhanced hold and better stability.
Adjustable caster, camber, toe-in, width, wheelbase front side and right back, ride-height, roll facilities and even more.
Front end brackets
Alu forward reduced bearing blocks and suspension system brackets, with integral anti-roll club holders and integral alu center bearing block. The gear-diff is seated in eccentric nylon bushings to generate the belt-tension. The proper position ( range of 4) of the eccentric bushings are recognised through outside, for easier re-assembly. The paid down front end brackets have in fact steel pins pre-mounted which slip in to the slots in chassis, for exact positioning.
Rear-end brackets
actually available design split type buttocks setup. The supersmall and light gear-diffs mount really low inside car, in accuracy machined split sort alu brackets. The gear-diff is seated in eccentric nylon bushings to generate the belt-tension. The proper destination ( range of 3) of this eccentric bushings might be recognised from the outside, for easier re-assembly.
the lower end brackets have metal pins pre-mounted which fall in to the slots in framework, for precise placement.
stomach muscles available design in fact departs countless space for maintenance, cleansing and air conditioning.
Framework
The 3mm chassis comprises of precision machined aerospace quality 7075 T6 alu. Countersunk with chamfered edges. Some extra machining in which necessary for the belt, the motor with airscoop for cooling, the flywheel plus some extra space permitting the moutning the transponder within the fueltank. Abdominal muscles closed design of framework creates the correct amount of rigidity in the car. More flex-control is offered with all the current alu stiffners on framework. A laser-angraved custom logo will be the finishing touch.
engine mount
Mono-type engine mount, for sucure sitting related to motor. Additional coolingfins for better heat-dissipation. The device allows for accurate placement of clutch and 2-speed gearbox.
Chassis stiffners and flex control
The primary chassis-stiffner may be the nylon one that is installed relating to the radioplate together with left 2-speed bracket. 2 machined alu framework stiffners are placed on chassis, underneath the motor. A corner one, utilizing the longer legs, is either fastened with just 2 related to 4 screws, or with 2 or all 4. same for the frtn one. The greater screws are fastened the less flex is supposed to be.
suspension system system front part
amazing front top and front paid down wishbones, made from superb M-type nylon materials and possess a great fit concerning the hardened metal pivot pins. The reduced wishbones houses the hard-coated alu pivot-ball, which operates leading anti-roll club.
The wheelbase is changed inside front part using the little caster-spacers in front or straight back of the paid down front side wishbone. In top ofcourse modification caster in the same manner. The roll-center modifications could be produced by changing the internal pivot inserts for a lesser, medium or more spot, with regards to the situation.
Front upper bracket
The nylon top bracket, connect leading alu bearing obstructs, holds the carbon fiber shocktower and top hinge pin inserts and incorporates the downstops. To obtain the diff takes 4 screws just.
Steeringblocks
The kit comes with the strong prooven steeringblocks associated with the 720, with off-set 0. Offset 1 is available as option.
The steeringblocks mount to your wishbones with light-weight coated alu 8.5mm pivotballs, and also make utilization of the nylon ball-cups for an ultra light and ultra smooth suspension system procedure
Anti-roll club front side
Ball-raced wire type front part anti-roll club system, more effective and easier to tweak. Operated by linkages that mount to alu pivotballs regarding ower front hands.
2.5mm is standard, additional options. 1.8, 2.2 and 2.8
Shocktower front part
Carbon fibre front side shocktower in 3.2mm with 4 roles for the front shocks. Includes holes to put in the next bodymount.
Shocks
Pre-assembled RCCX shock-sets. Brief sort both front side and right back, additionally brief springs front side and back. Along with the 2009 modification on rod-support and silicone x-ring for supersmooth shocks. SS-steel shock-rods, precision machined covered shock-housings, foam bleeders, precision moulded nylon pistons and shock-parts. The springtime pre-load nut has a silicone o-ring inside to end undesirable modification.
utilize 1000 Cst (40W) shock-oil as enclosed for standard set-up both front part and back.
Gear-differential.
Acutely little and light gear differential, seated as little as feasible to the 733. Equivalent gear-diff can be used to the front side and backside of automobile, just different pullies are set up. Good quality, accuracy machined , hardedned gears, along with SS-steel shafts, create a supersmooth gear-diff. The gear-cases are sealed with a captured o-ring. The SS-steel precison machined outdrives are lightened to decrease rotating mass further. For standard set-up use 80.000 Cst front side and 30.000 Cst back oil, as provided.
Its quite simple and quick to you need to the diffs from the automobile.
Centax
The Serpent 733 includes the famous Centax clutch ( an original Serpent innovation) . The ultra reliable Centax III WC variation is sold with precison machined, hardcoated alu screw on gears ( laser engraved) installed on a hardened metal clutch-bell. A very little and light 31mm hardcoated alu flywheel with accuracy set up metal pins. Race developed clutch footwear and flyweights, along with a tough Centax springtime, produce an extraordinary working clutch for amazing accelleration and durability.
Ball-joints
Quality nylon ball-joints for precision fit on pivot balls. All balljoints of automobile are on one larger framework in the kit. Some have TOP as indicator, to show which method to mount them for most readily useful procedure.
Gearbox
Ulta smooth gear-changes are given by the WC kind Light-Compact (LC) automatic 2-speed gearbox, which combines completely with all the Centax III-WC system. Precision machined 2-speed bell and one-way adaptor, coupled with durable centrifugal shoes attached to the SS-steel polished adaptor. Balanced SS-steel 2-speed layshaft.
Belt tensioner
Alu CNC machined belt-tensioner bracket, that can install on top or underneath the radioplate. Ballraced.
Driveshafts / wheel-adaptors
leading end has SS-steel CVD system, with laser engraved, ultra thin and light driveshafts, combined with durable wheel-axles and precision machined alu hex wheel adaptors.
a corner end has SS-steel dogbones furthermore thin/lightweight, yet durable, to stand the beating associated with the increasing horsepower and grip-levels.
Belts
Kevlar 4mm wide re-inforced drive-belts. Orange PU kind belts are standard (the black/brown low friction synthetic kind are optional, however for the first batch the synthetic people are employed).
Fueltank
Low-mounted 75cc fueltank with bronze sintered filter with AFL-cap, relocated more towards front part and offers a mounting-position for AMB transponder on base. Little component indent to provide space the throttle lever. Tank-inserts may be screw-mounted inside to diminish the articles if needed. Tanks mounts on 3 alu posts, with plastic covers, capped with silicone o-ring and tiny clips.
Roll-bar
Asymetric roll club with built-in sleeve the fuel-cap band. The roll bar increases also as end-stop for the fuel-cap, to avoid the limitation to start excessively.
Pipe-mount
Machined alu pipe-mount holds the spring-wire , which is connected to the radioplate. Grub-screw holds cable set up.
Bumper
The innovative and appealing new bumper sports a split type foam bumper, as well as the angled top bumper creates an incredibly sturdy front end, to absorb the effect of crashes ( if any). ( A wider foam bumper is supplied as optional.)
Servo-saver
Ball-raced servo-saver design, with all the metal servo saver shaft attached to the framework simply, spring-loaded with pre-tension nut and simple inserts to alter Ackermann. The linkages to your steering-servo are fast and angles are smooth / direct and easy to gain access to, as installed over the radioplate.
With the ultra strong SS-steel trackrods and smooth ball-joints, the installation produces a successful and responsive steering-system.
Pullies
New gear-ratio alongside fresh pullies with small sideholes to permit dust out easily. Friction free and very smooth procedure.
Front Diff - 35
Backside Diff - 40
Middle Pulley - 18
Center Side Pulley - 21
Back Side Pulley - 21
Brake Pulley - 20
Drive ratio 1.0117
center shaft
the center shaft owner is beautifully integrated into the front part left alu bracket and guaranteed with 3 screws. This gives strong, flex-free guidance towards the SS-steel center shaft.
2-speed shaft brackets
The two alu brackets to help keep the 2-speed shaft are true artwork. By isolating them from buttocks brackets, it generates many available space to exert effort on the automobile and provides better way of cooling too. In top the brackets offer the ball-raced rear anti-roll club, which is seated in brackets with little metal adaptors and high speed bearings. The left one additionally houses the ball-raced brake-cam and supports the framework stiffner too. Multi-functional.
Shocktower backside
4mm dense carbon fibre rear shocktower with 6 mounting jobs the shocks. The holes sit in such method, that after changing to to a different opening, across the shocks can remain the very same. The shocktower includes holes to mount the tank-cap strap, and mounting functions a corner human anatomy mounts.
Uprights
fresh uprights to match the newest geometry. Licenses 2 mounting roles inside top, inner or external as well as the kit comes complete with conical spacers to change roll-center.
Rear suspension system
The new back lower wishbones can be used both left and right. The anti-roll club linkage has 2 mounting jobs to pick from. The rear carbon camber bracket in 4mm dense material , has 9 jobs available, 5 internal and 4 outer each component. The roll-center changes are produced by changing the internal pivot inserts at a lower price, medium or maybe more place, based on the situation.
Wheel-base are changed using the casterclips in front or back the wishbone on lower pin.
Braking System
an extremely available and cool stopping system system, with 2 big ventilated steel disks, with one machined alu cooling-fin during the center ( furthermore used successfully on the Serpent 966) . The brake-system is installed low inside car for better center of gravity. Spring loaded competition pads that slip on precision machined bushings. The race brake-pads will be ready to use with pre-baked friction product ( no more glueing ) that persists while offering amazing braking energy with exemplary stopping system feeling / feedback. Reaches right heat quickly, doesn't always have diminishing and it is useful in the pouring rainfall too. The nylon braking system lever, that runs the hard-anodised ballraced brake-cam, has 2 mounting jobs the linkage. The linkage runs actually directly to the servo-arm.
Radioplate
the quick and slim radioplate is constructed of 2.5mm top quality carbon fibre product and ads toward overall tightness connected with car. The entire design is created in such method your complete radioplate with tank, roll-bar, belt-tensioner and all kinds of electronics comes for the automobile all at one time. Simply introduce the steeringlever and launch 7 screws. Ideal for cleaning and maintenance. All wiring very short and compact to mount. Appropriate aligned servo-linkages to both brake and throttle levers.
Radio-gear and battery pack mounting
The 733 provides a neatly created side-bracket-assembly providing you with mounting space the receiver, the switch, the antenna and both servos. The receiver goes into the nylon package with embossed Serpent logo. Regarding other the main tank, the battery pack ( Lipo or regular pack) is installed to a carbon dietary fiber bracket (shrink-foil/tape) , which once again mounts on radioplate with nylon spacers.
This really compact design means you should utilize extremely short cables and when set up precisely hardly any cables are noticeable from outside, but house well protected within the automobile. The steering-servo bracket provides another mounting position ( 2 holes) the transponder whenever is prefered as opposed to the reduced mounting place in tank.
Spacers are offered to correctly mount the servos, including 3 types servo levers to match all major brands.
Bearings
High rate stainless bearings through the vehicle, lightweight and lubricated with a high quality Shell bearing oil. High-quality one-way bearing the 2-speed adaptor.
