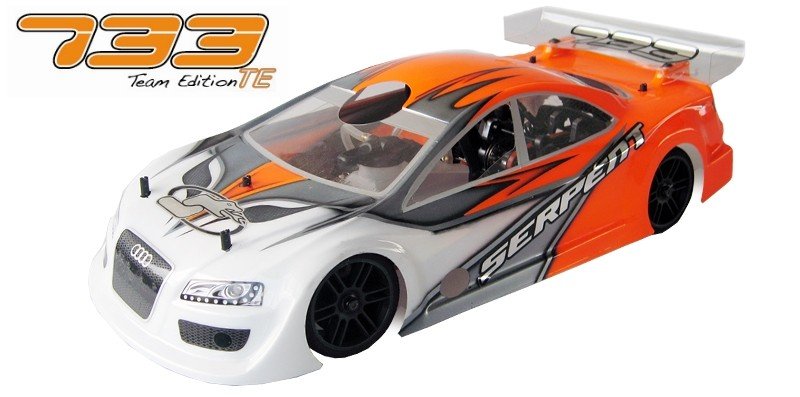

The Serpent 733 has a fresh, acutely distinct open design and sets new requirements in 1/10 scale race-chassis design. Many innovative and practical solutions are build to your unique design, to create construction, set-up, rushing and upkeep a joy.
Specs:
- Course: 1/10th Scale 200mm
- Purpose: 200mm Touring vehicle Racer
- Chassis: 3mm aluminum, 7075 aerospace quality, CNC machined
- Suspension: Independent increase wishbone suspension system
- Broadcast meal: 2.5mm carbon soluble fiber, CNC machined
- Shock absorbers: RCCX surprise absorbers
- Gas tank: 75cc design with brand new lid
- Drive system: 4wd through kevlar strengthened timing belts
- Clutch system: Centax-IIwe clutch system
- Front axle: Gear Differential (Optional A good way axle )
- back axle: Gear Differential
- Gearbox: Lightweight SL6 2-speed with interchangeable fine pitch gears
- Weight: 1.695kg (considering radio gear)
- Max. rate: 105km/h +
- Acceleration: 0-90km/h 3.0 moments
- instructions: Full color guide, reference guide
- Maybe maybe not included: Engine and pipeline, human anatomy, radio gear, battery, tires
Features:
Fueltank
Low-mounted 75cc fueltank with bronze sintered filter with brand new limit, relocated more to your front side and you will be providing a mounting-position for AMB transponder on bottom. Small part indent to offer room the throttle lever. Tank-inserts can be screw-mounted inside to diminish the articles if needed.
Tanks mounts on 3 alu articles, with synthetic covers, capped with silicone o-ring and tiny clips.
Roll-bar
Asymetric roll club with integrated sleeve the fuel-cap band. The roll club increases furthermore as end-stop the fuel-cap, to avoid the limitation to start past a suitable limitation.
Pipe-mount
Machined alu pipe-mount holds the spring-wire , which is linked to the radioplate. Grub-screw holds wire set up.
Bumper
The revolutionary and attractive new bumper tasks a split kind foam bumper, as well as the angled upper bumper creates an exceptionally sturdy front end, to soak up the result of crashes ( if any). ( A wider foam bumper is supplied as optional.)
Servo-saver
Ball-raced servo-saver design, along with the steel servo saver shaft attached to the framework only, spring-loaded with pre-tension nut and easy inserts to alter Ackermann. The linkages to your steering-servo are brief and angles are smooth / direct and simple to access, as mounted above the radioplate.
With the ultra strong SS-steel trackrods and smooth ball-joints, the installation produces an effective and responsive steering-system.
Pullies
brand new gear-ratio coupled with unique pullies with small sideholes to let dirt out effectively. Friction free and incredibly smooth procedure.
Front Diff - 35
backside Diff - 40
Middle Pulley - 18
Middle Side Pulley - 21
Back part Pulley - 21
Brake Pulley - 20
Drive ratio 1.0117
center shaft
the center shaft holder is beautifully integrated inside front left alu bracket and assured with 3 screws. This provides strong, flex-free guidance towards the SS-steel center shaft.
2-speed shaft brackets
The 2 alu brackets to help keep the 2-speed shaft are real artwork. By breaking up them from rear end brackets, it makes many available room towards the office on automobile and provides better way of air-con too. In top the brackets offer the ball-raced straight back anti-roll club, that will be seated into the brackets with small metal adaptors and high rate bearings. The left one additionally houses the ball-raced brake-cam and supports the framework stiffner too. Multi-functional.
Shocktower backside
4mm dense carbon fibre back shocktower with 6 mounting roles the shocks. The holes sit such means, that after changing to to another space, the size of the shocks can stay similar. The shocktower includes holes to install the tank-cap strap, plus mounting jobs the back human body mounts.
Uprights
new uprights to allow for this new geometry. Licenses 2 mounting roles inside the top, internal or outside while the kit comes detailed with conical spacers to alter roll-center.
right back suspension system system
The brand new back lower wishbones may be used both left and appropriate. The anti-roll bar linkage has 2 mounting jobs available. The rear carbon camber bracket in 4mm thick product , has 9 jobs to pick from, 5 internal and 4 outer each part. The roll-center modifications are formulated by changing the inner pivot inserts for a reduced, medium or maybe more place, according to the situation.
Wheel-base is changed utilising the casterclips into the front side or back of wishbone on paid down pin.
Brake
an extremely available and cool brake system. The brake-system is installed suprisingly low into the car for better center of gravity. Spring loaded competition pads that fall on precision machined bushings. Your competition brake-pads are prepared to use with pre-baked friction product ( forget about glueing ) that persists and offers amazing braking power with exceptional braking system feeling / feedback. Hits right temperature quickly, doesn't always have fading and it is effective in the torrential rain too. The nylon braking system lever, that runs the hard-anodised ballraced brake-cam, has 2 mounting functions the linkage. The linkage operates extremely straight to the servo-arm.
Radioplate
The very brief and narrow radioplate is made of 2.5mm excellent carbon fiber item and adverts toward overall tightness about the vehicle. The whole design is created in such means that the complete radioplate with tank, roll-bar, belt-tensioner and all types of electronic devices takes place of car all at once. Simply release the steeringlever and launch 7 screws. Perfect for cleansing and upkeep. All wiring very brief and compact to mount. Straight aligned servo-linkages to both brake and throttle levers.
Radio-gear and battery power mounting
The 733 provides a neatly created side-bracket-assembly that gives mounting area the receiver, the switch, the antenna and both servo?s. The receiver switches into the nylon field with embossed Serpent custom logo. Regarding the other side of the tank, the battery pack ( Lipo or regular pack) is installed to a carbon fiber bracket (shrink-foil/tape) , which once more mounts towards the radioplate with nylon spacers.
This extremely compact design means you should use really brief cables whenever mounted correctly very little cables are noticeable from the outside, but house well protected inside the automobile. The steering-servo bracket provides another mounting place ( 2 holes) the transponder if is prefered as opposed to the reduced mounting place within the tank.
Spacers are supplied to properly install the servos, along with 3 types servo levers to accommodate all major brands.
Bearings
tall speed metal bearings through the whole car, lightweight and lubricated with a top quality Shell bearing oil. Excellent one-way bearing the 2-speed adaptor.
Fasteners
Allen kind high quality metal screw through vehicle.
Belts
Kevlar 4mm wide re-inforced drive-belts. Kevlar kind belts are standard (the black/brown low friction plastic type are optional) .
Driveshafts / wheel-adaptors
Leading end has SS-steel CVD system, with laser etched, ultra slim and light driveshafts, along with durable wheel-axles and precision machined alu hex wheel adaptors.
The trunk end has SS-steel dogbones also thin/lightweight, yet durable, to face the beating the increasing horsepower and grip-levels. The Direct Link System (DLS) can be used as shown, nevertheless the camber bracket is universal, which means you might run in standard structure.
Geometry
completely new geometry and roll-centers, paid off center of gravity and modified weight-positioning for improved grip and better security.Adjustable caster, camber, toe-in, width, wheelbase front and back, ride-height, roll centers and more.
Front end brackets
Alu ahead reduced bearing blocks and suspension system brackets, with built-in anti-roll club holders and built-in alu center bearing block. The gear-diff is seated in eccentric nylon bushings to create the belt-tension. The proper spot ( option of 4) associated with the eccentric bushings are recognised from outside, for easier re-assembly. The reduced front part end brackets have actually really metal pins pre-mounted which slip into the slots in the framework, for accurate placement.
Rear-end brackets
really available design split sort buttocks set up. The supersmall and light gear-diffs mount suprisingly low within the vehicle, in precision machined split kind alu brackets. The gear-diff is seated in eccentric nylon bushings to generate the belt-tension. The proper place ( choice of 3) of eccentric bushings might be recognised through the area, for easier re-assembly.
The paid off buttocks brackets have steel pins pre-mounted which slip to your slots inside framework, for accurate placement.
The available design really actually leaves countless space for maintenance, cleansing and cooling.
Framework
The 3mm framework consists of accuracy machined aerospace quality 7075 T6 alu. Countersunk with chamfered sides. Some additional machining in which necessary for the gear, the engine with airscoop for ac, for the flywheel plus some extra area to allow the moutning the transponder underneath the fueltank. The closed design of framework creates the best degree of rigidity in to the automobile. More flex-control exists due to the alu stiffners on framework. Elaborate anodised chassis is optional.
Motor mount
Mono-type engine mount, for sucure seating of engine. Additional coolingfins for better heat-dissipation. The device enables exact alignment concerning the clutch and 2-speed gearbox.
Chassis stiffners and flex control
the principal chassis-stiffner will be the ball-joint pole which are often mounted involving the radioplate along with the remaining 2-speed bracket.
Suspension front part
amazing front side top and front paid down wishbones, created from superb M-type nylon materials and also have a great fit regarding the hardened steel pivot pins. The lower wishbones houses the hard-coated alu pivot-ball, which runs the key anti-roll bar.
The wheelbase could be changed in the front side by using the small caster-spacers ahead or right back related to reduced front side wishbone. In the top ofcourse modification caster in the same way. The roll-center changes may be made by changing the internal pivot inserts for a lowered, medium or more place, according to the situation.
Front top bracket
The nylon top bracket, link the key alu bearing obstructs, holds the carbon fiber shocktower while the top hinge pin inserts and includes the downstops. To search for the diff takes 4 screws just.
Steeringblocks
The kit comes using the strong prooven steeringblocks with off-set 0. Offset 1 can be acquired as option. The steeringblocks mount towards wishbones with light-weight coated alu 8.5mm pivotballs, and use the nylon ball-cups for an ultra light and ultra smooth suspension system process.
Anti-roll club front part
Ball-raced cable type forward anti-roll bar system, better and more straightforward to modify. Operated by linkages that mount to alu pivotballs regarding the ower front hands.
2.5mm is standard, additional options. 1.8, 2.2 and 2.8
Shocktower front side
Carbon fibre front side shocktower in 3.2mm with 4 functions the front shocks. Includes holes to mount the next bodymount.
Shocks
Pre-assembled RCCX shock-sets. Brief kind both front side and back, also brief springs front part and rear. Using the 2009 modification on rod-support and silicone x-ring for supersmooth shocks. SS-steel shock-rods, precision machined coated shock-housings, foam bleeders, accuracy moulded nylon pistons and shock-parts. The springtime pre-load nut has a silicone o-ring inside to avoid unwanted modification.
use 1000 Cst (40W) shock-oil as enclosed for standard set-up both front side and rear.
Gear-differential.
Acutely small and light gear differential, seated only feasible in 733. Comparable gear-diff can be utilized inside front and backside linked to the automobile, merely various pullies are installed. Good quality, precision machined , hardedned gears, combined with SS-steel shafts, create a supersmooth gear-diff. The gear-cases are sealed with a captured o-ring. The SS-steel precison machined outdrives are lightened to decrease rotating mass further. For standard set-up use 80.000 Cst front side and 30.000 Cst right back oil, as supplied.
Its fairly simple and fast to just simply take the diffs out from the car.
Centax
The Serpent 733 comes with the famous Centax clutch ( an original Serpent innovation) . The ultra dependable Centax III WC version includes precison machined, hardcoated alu screw on gears ( laser etched) mounted on a hardened metal clutch-bell. A tremendously tiny and light 31mm hardcoated alu flywheel with precision set up steel pins. Race developed clutch footwear and flyweights, and a difficult Centax springtime, to create an exceptional working clutch for amazing accelleration and durability.
Ball-joints
quality nylon ball-joints for precision fit on pivot balls. All balljoints associated with car take one bigger framework inside the kit. Some have actually TOP as indicator, showing which direction to install them for best procedure.
Gearbox SL6
Ulta smooth gear-changes are supplied by the SL6 automated 2-speed gearbox, which combines perfectly with all the current Centax-3 system. Amazing gears for SL8, new design/ form, really durablePrecision machined 2-speed bell and one-way adaptor, combined with durable centrifugal footwear installed regarding SS-steel polished adaptor. Balanced SS-steel 2-speed layshaft.
Belt tensioner
Alu CNC machined belt-tensioner bracket, that may mount extraordinary or beneath the radioplate. Ballraced.
