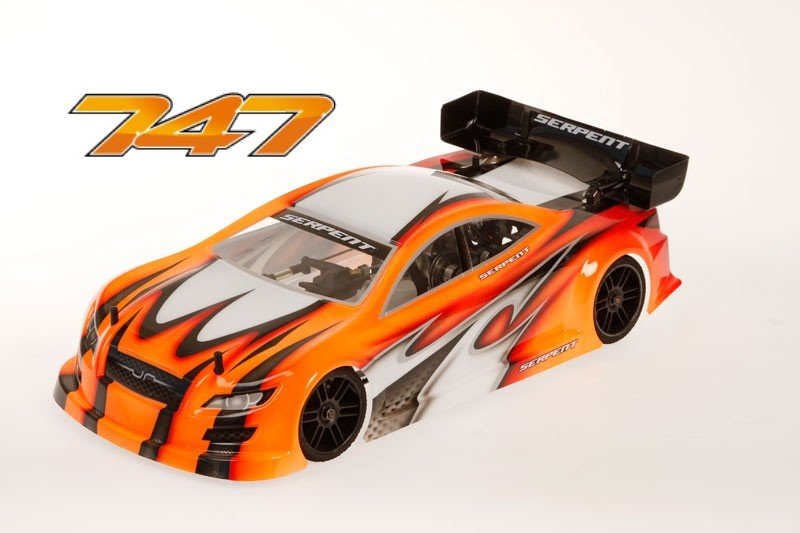

Serpent 747 1/10 scale 4wd gaspowered racing automobile.
Specs:
- Class: 200mm 1/10th Scale 200mm
- Function: 200mm Touring vehicle Racer
- Chassis: 3mm aluminum, 7075 aerospace quality, CNC machined
- Suspension: Independent increase wishbone suspension system
- Radio plate: 2.5mm carbon dietary fiber, CNC machined
- Shock absorbers: RCM shock absorbers
- Gas tank: 75cc design
- Drive system: 4wd through kevlar reinforced timing belts
- Clutch system: Centax-True movement clutch system
- Front axle: Gear Differential v2 (Optional a great way axle )
- back axle: Gear Differential v2
- Gearbox: Lightweight SL6 2-speed with interchangeable fine pitch gears
- Body fat: 1.595kg (influenced by radio gear)
- Max. rate: 105km/h +
- Acceleration: 0-90km/h 3.0 seconds
- Guidelines: color instructions, reference guide
- Not included: engine and pipeline, body, radio gear, electric batteries, tires
Features:
- 4wd beltdriven
- 2-speed SL6 gearbox
- Real Motion Centax clutch
- RCM shocks
- Flex-control front part and right back
- New geometry front side and backside
- 3mm framework with fat sliders
- Topquality alu components
- Spring steel transmission parts
- Minimal and light stopping system
Chassis
Symmetrical chassisplate also for flex and torsion, in 7075 T6 aluminium, anodised and laser engraved. Chamfered sides to obtain additional ground approval whenever cornering and countersunk holes. Central slots to install fat, that could slide into the right place and assured. Radioplate
The 2mm carbon fiber radioplate has numerous functions. It holds the fueltank put up that will be attached to 3 alu posts in plastic. Regarding right hand part the receiver mounts to a well shaped carbon fiber meal that links tot eh radiotray, sqeezed in right between gear and tank. The throttle/brake servo mounts straight toward radioplate with nylon spacers together with steeringservo is rigidly set up on aluminium posts towards the radioplate.
Front flex system
the best part of the radioplate includes a flex-control system. You'll either run the 747 with foxes front end, or perhaps you can loosen / take out some from the front top radioplate screws, and obtain a grip regarding the flex due to the 2 topmounted linkages.
Battery-holder
Carbon fibre battery-holder placed in the middle of your tank and pipeline, to discover the best fat stability. The battery power is simple to strap straight down with tape towards bracket.
Fueltank
Durable 75ccm nylon fueltank with clear product to easy see fuel-content. Large springloaded quick-fill restriction with seal with large tank opening for fast and easy refills. The bronze sintered filter could keep fuel neat making certain tank will clear till final drop if needed. The fueltanks has some small walls inside to stabilise the gasoline, and direct it towards the filter. Some special made inserts may be mounted inside to scale back articles as needed. Fueltank sits suprisingly low in the car for low center of gravity. Fueltank is mounted with videos on 3 alu articles with plastic buffers.
RCM shocks
extreme Teflon coated threaded shockbodies in quality aluminium. Supersmooth o-ring / bushing package, to steer and seal the spring-steel piston rods. Precision moulded pistons found in 3 types. Threaded pre-load shocknuts in alu with o-ring inside. Light but strong nylon spring-cups. Tight fitting ball-joints in top and bottom.
Front bumper
Newly created reduced front bumper with aerodynamic effects and better protection. Some parts of the low bumper are cut ready to accept produce more steering. The upper bumper / bodymount owner relate to the low someone to create a good framework to soak up the crashes. The foam elements ( normal or big) can still be placed but are optional.
Shocktower front
3.0mm carbon fibre shocktowers with 3 jobs to find the best shockmounting. At the heart it is possible to mount another bodypost as needed.
Front brackets
a succinct and superlight framework of topquality aluminium components include top-brackets, L and R equal bearing brackets, lower suspension bracket front part, L and R equal FR-RR standing suspension holders and backside, anti-roll club holder and Lightened machined alu brackets, equal left and right, toothed part allow establishing gear stress with excenters which seat the bearings. Machined alu topbrackets L and R variation to place on the upper arms. Suspension system bracket front . All crafty machined and grey anodised components. The available style design enables quickly parts trade as needed, like gear, diff or anti-roll club.
Suspension system system front part
Strong very long double A-arm suspension with aluminium pivotballs, which pivot in light nylon cups. Moderate difficult nylon ideal for the hands to possess some flex to enhance grip, making them many durable. The hands pivot on the inside on springsteel pins. The pivot-inserts are used to change rollcenter. Tiny grubscrews mount within the top bracket to manage downstop. Accessible and change drive height, front side width, toe-in, caster and camber.
Steeringblocks / wheelaxles / cvd
quite strong nylon steeringblocks with 2 ackermann jobs . The spring-steel wheelaxles are seated in high speed bearings. The light and durable spring-steel cvds bring every one of the capacity to the leading tires. Tires are installed to orange anodised top quality aluminium hex-adaptors utilizing serrated wheelnuts.
Anti-roll club front side
The ballraced cable type anti-rollbar to the front side is easy to get at and modification for other kind or depth as required. The anit-roll club is linked to the reduced a-arms with an exceptional pivotball/cup system, which gives direct and smooth procedure and it is an easy task to set.
Servo-saver / steering
The centraly mounted steel servo-saver post fits the spring-loaded ballraced servo-saver system and steering. The inserts enable 2 ackermann settings. Due in direction of available design the linkages with L/R threading is reached efficiently. The complete system permits actually accurate steering and minimal bumpsteer.
Center shaft owner
Machined 2 piece aluminium center shaft holder, which firmly holds the springtime metal middle haft, and doubles up as holder of pipe-mount.
Back brackets
Very available tail design with a framework of 8 machined alu brackets, allowing for managed flex and easy maintenance. The differential brackets, L and R equal, are toothed and seat the excentric bearing owner, which allow establishing belttension. Its excessively quick and simple to install a differential and or change a belt.
The 2-speed gearbox shaft holders, twice up as anti-roll mounts, and brake system foundation. The holders are attached to the top of back brackets whenever less flex is important. Optional are a a plastic inserts or aluminium inserts. All topquality machined elements with anodising and laser-engraving.
Brake -system
the low mounted brake system with superlight disk allows smooth and stopping, additionally the available system stops overheating. The ball-raced excenter and lever provides an extremely smooth and direct brake-feeling.
The machined aluminium lower suspension brackets have actually roll-center inserts with 3 jobs to choose from. A corner bracket could be the V1 variation, whicj is narrow thanm usee within the 733, to ultimately achieve the new geometry with the close reduced fingers and uprights.
Back carbon shocktower and camber bracket
The 3.0mm carbon shocktower has 3 top mounting position the shocks plus it mounts the body-poles. The camber bracket provides 8 roles available, 4 internal and 4 out holes.
Suspension straight back
the newest paid down rear arms alongside the brand new uprights create this new geometry in to the backside, to produce a wider set-up sweet-spot with an increase of hold and even more steering. The top of camber rods connect with the carbon camber bracket with 8 mounting jobs for roll-center and the camber pole is simple to find yourself in and contains L/R threading for quick changes. The aluminium pivotball system allows for fast changes in width and toe-in. Concerning the lower inside the wishbone pivots on springsteel pins, which chair with roll-center inserts in the anodised alu suspension system brackets.
Spine wishbones
the composite paid off wishbones function a mounting position the anti-roll club linkage bracket in carbon, which moves the web link place more outside and higher. Its provides a mounting destination for an optional carbon shock-mount bracket, to go the low shockmount place further out, but also for the default set-up its unneeded. By placing the reduced surprise further away, you'll receive a lot more steering .
Uprights / wheel-axles
Durable moderate type nylon uprights, which seat the wheel-axles bearings. The upright provides the mounting place the metal camber-rod with L/R threading. The durable springtime steel wheelaxles bring to power from gear-diff toward wheels. Tires are fitted on quality anodised alu wheelhex adaptors and guaranteed in full with serrated flanged wheelnuts.
Anti-roll club backside
The ballraced cable sort anti-rollbar inside the rear is really easily accessible through the top and change for other kind or level as required. The anti-roll club is from the paid off a-arms with a metal pole. The lower hands provides 2 mounting roles to select from.
Gear-differentials
Compact, durable and light gear differential. Pecision moulded metal gears, 2 tiny and 2 large ones. Metal inside shaft. Abdominal muscles durable and light springtime steel lightened diff-adaptors connect to the driveshafts. The geardiff is same front part and backside.
CVD driveshafts
Spring steel, light and intensely durable CVDs utilized in the leading. Precision mounted hard steel pins
Drive-shafts
Spring metal, light and extremely durable dogbones utilized in a corner. Precision mounted difficult steel pins
Pullies
Precison moulded super-true pullies, which function holed sidewalls allowing debris move out easier. Light and durable.
Belts
Kevlar reinforced belts with fine pitch. Longlasting and smooth.
Belt-tensioner
Ball raced belt-tensioner, machined from aluminium and will install at the top or underneath the radioplate.
Gear-box SL6
The fine proven SL6 gearbox is standard inside 747. Severely light and lightweight, with really low rotating mass. Durable and longlasting gears. High quality bearings. Extremely grippy springloaded 2-speed footwear, simple to set.
Real Movement Centax clutch
Serpent created the Centax clutch in the mid 90-ties, and all kinds of brands followed it. Small improvements are observed to really make the original system in addition to this. The actual movement Centax has a collection flywheel, and taper component on force plate. This permits the flyweights for results even better. The hard anodised aluminium flywheel has 4 holes to obtain comfortable use of keep consitently the flywheel in place whenever developing the pre-tension. The flyweights are made of topquality teflon and have another opening to make use of grubscrews to make them heavier. The red friction clutch footwear is fairly grippy, and works exemplary utilizing the metal clutch housing. The hard anodised gears screw concerning the threaded metal bell.
Engine mount
The machined and anodised monotype motor mount has cooling ribs concerning the sides and stiffens the framework aswell. The mount completely seats the engine, well alligned. utilising the gearbox. Tiny modification may be built to move the motor nearer toward gearbox.
