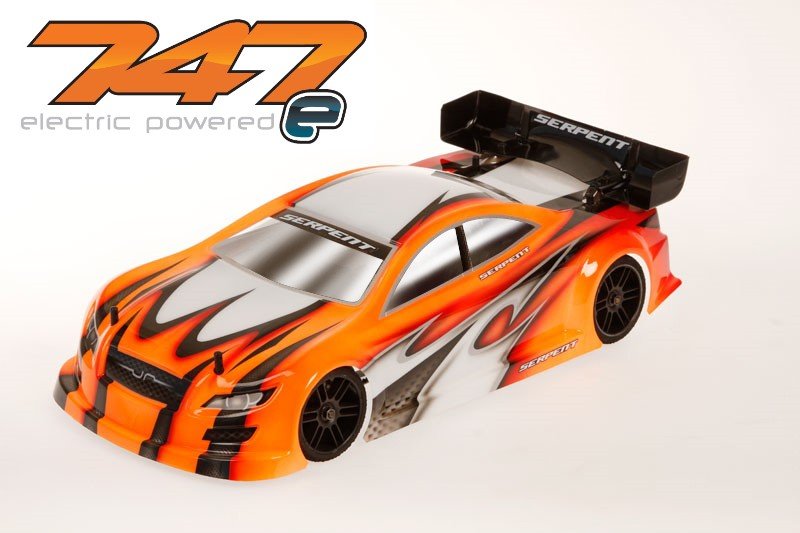

Serpent 747-e 1/10 scale 4wd 200mm electric rushing automobile. Compared to a day to day 1/10 scale touringcar, the control is quite different, much simpler. While you will race with a wider vehicle of 200mm and make use of foam tyres on wider rims. The 1/10 200mm vehicles may general stronger ( and a little heavier) and may also simply take the excess power you've gotten effortlessly, without deteriorating fast. Despite the fact that crashing the 200mm automobiles are far more durable and could absorb more energy.
Demands:
- Class: 200mm 1/10th Scale
- Purpose: 200mm Touring vehicle Racer
- Chassis: 3mm carbon fibre , CNC machined
- Suspension: Independent double wishbone suspension
- Top-deck: 2mm carbon fiber, CNC machined
- Shock absorbers: RCM shock absorbers
- Drive system: 4wd through kevlar strengthened timing belts
- Front axle: Gear Differential v2 (Optional a proven way axle )
- backside axle: Gear Differential v2
- Weight: 1.595kg (according to radio gear)
- Max. rate: 105km/h +
- Acceleration: 0-90km/h 3.0 moments
- Directions: Full color guidelines, reference guide
- Perhaps maybe not included: Body, speedo, motor, radio gear, battery power, tires
Features:
- Carbon fibre framework and topdeck
- Aluminum motormounts which doubles up as midshaft owner and right back anti-roll club owner
- Ballraced midshaft is set up in seperate brackets allowing simple and fast spurgear modifications
- low steeringservo destination, with centrally set up helps with alu/carbon structure
- 2 alu L-shaped topdeck supports with built-in ballraced gear tensioners
- Front and straight back geardiffs, front and rear very same
- Ballraced anti-roll pubs
- Carbon fibre battery power holders
- Fully adjustable independent suspension system
- Minimal friction belts and precision made pullies
- RCCX shockabsorbers
- Front CVD and rear dogbones in Serpent Spring metal
- minimal and wide front part bumper
Chassis
Symmetrical chassisplate even for flex and torsion in 3mm carbon fibre, lowered where in actuality the motor mounts as little as possible into the automobile.
Topdeck
The 2mm carbon fibre topdeck link leading and straight back suspension system system.
Battery holders
The battery pack holders have been in carbon fibre and possess sleeves enable usage of battery pack mounting taope effortlessly.
Servo-holder
suprisingly low mounted servo, a solid carbon/alu owner which is centrally installed for even flex
Engine / midshaft / anti-roll club owner
the motor is set up regarding lowest strong aluminium owner, which doubles as mid-shaft owner and backside anti-roll club owner also.
The mid-shaft mounts in 2 seperate holders along with the ballbearing inside to enanble an easy and easy modification of gears.
RCM shocks
Rough Teflon coated threaded shockbodies in top quality aluminium. Supersmooth o-ring / bushing package, to guide and seal the spring-steel piston rods. Precision moulded pistons contained in 3 types. Threaded pre-load shocknuts in alu with o-ring inside. Light but strong nylon spring-cups. Tight fitting ball-joints in top and base.
Front bumper
Newly created lower front side bumper with aerodynamic impacts and better security. Some areas of the lower bumper could possibly be cut open to produce more steering. The most truly effective bumper / bodymount holder hook up to the low anyone to create a strong structure to soak up the crashes. The foam elements ( normal or big) can nevertheless be placed but are optional.
Shocktower front side
3.0mm carbon fibre shocktowers with 3 jobs for top shockmounting. In the centre you are able to install the next bodypost as required.
Front brackets
a taut and superlight structure of topquality aluminium parts contain top-brackets, L and R equal bearing brackets, paid down suspension system bracket front part, L and R equal FR-RR standing suspension system holders and rear, anti-roll bar owner and Lightened machined alu brackets, equal left and right, toothed section allow setting gear anxiety with excenters which seat the bearings. Machined alu topbrackets L and R variation to keep the upper arms. Suspension system bracket front side . All crafty machined and grey anodised elements. The open style design allows very quickly components change as required, like gear, diff or anti-roll bar.
Suspension front side
Strong long double A-arm suspension with aluminium pivotballs, which pivot in light nylon cups. Moderate difficult nylon employed for the hands to have some flex to enhance hold, and work-out them many durable. The arms pivot inside on springsteel pins. The pivot-inserts are acclimatized to alter rollcenter. Little grubscrews mount in top bracket to handle downstop. Easily accessible and change trip height, front side width, toe-in, caster and camber.
Steeringblocks / wheelaxles / cvd
Very strong nylon steeringblocks with 2 ackermann jobs . The spring-steel wheelaxles are seated in higher level bearings. The light and durable spring-steel cvds bring all of the capacity towards the front tires. Tires are installed to orange anodised high quality aluminium hex-adaptors making use of serrated wheelnuts.
Anti-roll bar front
The ballraced wire kind anti-rollbar into the front is actually accessible and modification for any other kind or thickness as needed. The anit-roll club is from the paid off a-arms with a distinctive pivotball/cup system, which supplies direct and smooth procedure and it is very easy to set.
Servo-saver / steering
The centraly mounted steel servo-saver post fits the spring-loaded ballraced servo-saver system and steering. The inserts help 2 ackermann settings. Due to the available design the linkages with L/R threading might reached effortlessly. The entire system enables exceedingly accurate steering and minimal bumpsteer.
Back brackets
Really available tail design with a framework of 8 machined alu brackets, allowing for managed flex and simple upkeep. The differential brackets, L and R equal, are toothed and seat the excentric bearing owner, which permit establishing belttension. Its exceptionally swift and easy to install a differential and or replace a belt.
The machined aluminium reduced suspension brackets have actually really roll-center inserts with 3 functions to pick from. The trunk bracket may be the V1 variation, which is narrow than used on the 733, to ultimately achieve the completely new geometry together with the close lower fingers and uprights.
Straight back carbon shocktower and camber bracket
The 3.0mm carbon shocktower has 3 top mounting place for the shocks plus it mounts the body-poles. The camber bracket provides 8 roles to choose from, 4 inner and 4 out holes.
Suspension back
the latest lower back fingers alongside the latest uprights create this new geometry inside back, generate a wider set-up sweet-spot with extra hold and even more steering. The top of camber rods attach to your carbon camber bracket with 8 mounting roles for roll-center plus the camber pole is simple to get access to and contains L/R threading for fast changes. The aluminium pivotball system allows for quick alterations wide and toe-in. In the reduced in the wishbone pivots on springsteel pins, which seat with roll-center inserts inside anodised alu suspension brackets.
Lower back wishbones
the composite lower wishbones function a mounting place the anti-roll bar linkage bracket in carbon, which moves the net link place more outside and greater. Its offers a mounting spot for an optional carbon shock-mount bracket, to get the low shockmount destination further away, but also for the default set-up its unnecessary. By putting the paid down shock further away, you're getting more steering .
Uprights / wheel-axles
Durable medium kind nylon uprights, which seat the wheel-axles bearings. The upright supplies the mounting place the metal camber-rod with L/R threading. The durable spring metal wheelaxles bring to energy through the gear-diff toward tires. Tires are fitted on good quality anodised alu wheelhex adaptors and guaranteed in full with serrated flanged wheelnuts.
Anti-roll club straight back
The ballraced wire sort anti-rollbar inside straight back is truly available through the best and alter for almost any other type or depth as needed. The anti-roll bar is from the paid off a-arms with a steel pole. The low hands offers 2 mounting jobs available.
Gear-differentials
Compact, durable and light gear differential. Pecision moulded metal gears, 2 tiny and 2 large individuals. Metal internal shaft. The durable and light springtime metal lightened diff-adaptors relate solely to the driveshafts. The geardiff is exact same front part and rear.
CVD driveshafts
Spring metal, light and intensely durable CVDs found in the leading. Precision mounted hard metal pins
Drive-shafts
Spring metal, light and extremely durable dogbones found in the trunk. Precision mounted hard steel pins
Pulleys
Precison moulded super-true pullies, which function holed sidewalls to allow debris re-locate easier. Light and durable.
Belts
Kevlar reinforced belts with fine pitch. Longlasting and smooth.
Belt-tensioners
2 Ball raced belt-tensioners, machined from aluminium mount between your framework and topdeck.
