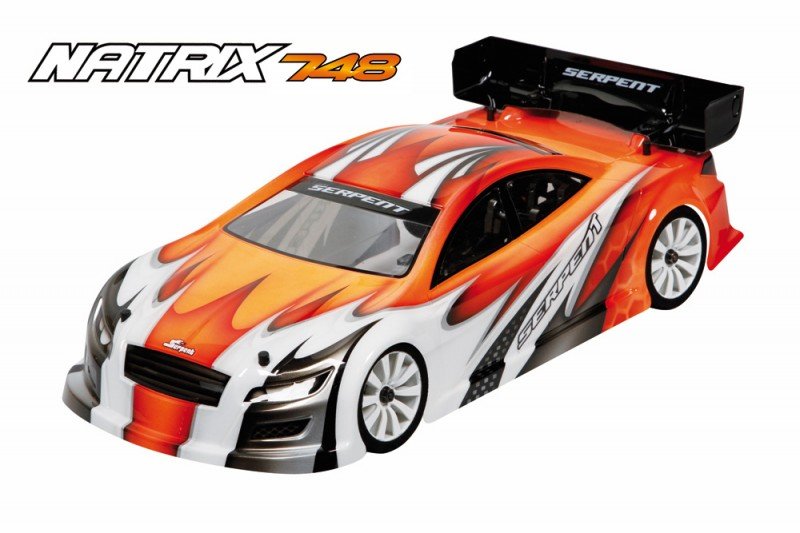

Serpent Natrix 748 1/10 scale 4wd gaspowered 200mm vehicle 4wd, belt-drive, gear-differentials front and back, Centax TM clutch, 2-speed gearbox, 75cc tank, chassis 7075-T6, carbon radioplate and shocktowers, RCM-SS shocks, ball-raced anti-roll bars, totally adjustable.
Requirements:
- Course: 200mm 1/10th Scale 200mm
- Chassis: 3mm aluminum, 7075 aerospace quality, CNC machined
- Suspension: Independent double wishbone suspension system system
- Radio meal: 2.5mm carbon fibre, CNC machined
- Shock absorbers: RCM SS shock absorbers
- Fuel tank: 75cc design
- Drive system: 4wd through kevlar strengthened timing belts
- Clutch system: Centax-True motion clutch system
- Front axle: Gear Differential
- Back axle: Gear Differential
- Gearbox: Lightweight SL6 2-speed with interchangeable fine pitch gears
- body weight: 1.595kg (according to radio gear)
- Max. rate: 105km/h +
- Acceleration: 0-90km/h 3.0 seconds
- Guidelines: color guide, reference guide
- Maybe perhaps not included: motor and pipeline, human anatomy, radio equipment, battery pack, tires
Features:
- The revolutionary steeringblock system, well proven about the WC winning Viper 977, is totally adjustable, enable a respected, fundamental or trailing position and permit mounting regarding the optional carbon aero disks
- a brand new fueltank was created, which sits even lower in the automobile as just before, and it is long and slim
- The lay-down servos are both seated in a single composite owner, since near possible towards centerline concerning the vehicle, producing a much better overall stability and allowing better rotation. The gas-throttle linkages behave like the device placed on the Viper 977
- a nice little and light receiver box is done, which seats actually close to the radio-tray and in addition just as much inboard as you can . Into the radioplate a little owner is fitted to simply accept the plugs associated with the battery pack, to accomplish something as on/off switch.
- The ballraced backside anti-roll bar is optimised place smart.
- The alumium back brake and 2-speed shaft holders, that also support the rear anti-roll bar are lighter
- This new chassisplate permits the engine become installed more toward straight back as before, causing an improved general stability. Therefor the trunk and part gear are completely new too.
- A large part uprights are modified to also accept the optional carbon aero disks
- The radioplate sits incredibly lower in the car, and it also integrated a large part with a fresh sort ballraced flexsystem, which a be used or locked in moments.
- the reduced radiotray made a new steering / servo saver set up necessary, again with adjustable ackermann inserts as prior to.
- Regarding the front end the bumper is a bigger low mounted product with all the carbon top-plate.
- In general the NATRIX automobile is lighter than 747 prior to, as additionally most aluminium components have been completely redesigned to free fat.
Chassis
Symmetrical chassisplate even for flex and torsion, in 7075 T6 aluminium, anodised and laser etched. Chamfered edges to get more ground approval whenever cornering and countersunk holes. Central slots to set up fat, which will slip towards right place and secured. Radioplate
The 2mm carbon fiber radioplate has numerous functions. It holds the fueltank in place which are often attached to 3 alu articles in rubber. Regarding right hand part the receiver mounts to a well shaped carbon fibre plate that connects to your radiotray, sqeezed in right between belt and tank. The radioplate sits again paid off about the automobile , for paid off center of gravity.
Central Flex system
The trunk element of the radioplate incorporates an incredible flex-control system. It contains 2 machined aluminium parts. The lower one connects toward radioplate supports a top regarding the one with screws on upper alu plate and radioplate. You'll either run the 748 rigid with flex . The optional ball-bearings and screws can be bought seperate. Testing indicates that flex in center straight back regarding the automobile has the many impact and responds most predictable as wel.
748 servo owner
a new composite servo owner is made to have both servo nearer to your guts distinct the automobile and as little as it is possible to. The 2 lay-down servo?s are seated actually near together and mount really efficent and simple technique. The owner mounts towards the radio-tray.
Linkages
The throttle / stopping system linkage is exact same design as applied to the 977 1/8 car. A pivot-lever system with an ingenius ball-cup system to your guide the cable whilst having almost friction free action.
748 receiver field
The newest composite receiver package is tiny but holds and protects the most common contemporary receivers effortlessly. The antenna mounts to your top. The container is securely fastened toward radioplate with a nylon bracket . The box is relocated as a tremendous amount towards the interior that you can. Regarding radioplate a tiny holder is equipped to just accept the plugs of this battery, to become on/off ?switch?.
Battery-holder
Carbon fibre battery-holder put between your tank and pipeline, for the best fat balance. The battery pack is simple to strap down with tape towards bracket. Spacers could be always install the battery power greater or lower with respect to the battery power you wish to utilize.
748 fueltank
Lower and longer durable 75ccm nylon fueltank with clear product to effortless see fuel-content. Big springloaded quick-fill limit with seal with big tank beginning for without headaches refills. The bronze sintered filter will keep gasoline neat and ensure tank will clear till final fall if needed. Fueltank sits suprisingly lower in the automobile for low center of gravity. Fueltank is installed with clips on 3 alu articles with synthetic buffers.
SuperShort RCM shocks
Coated threaded shockbodies in top quality aluminium. Supersmooth o-ring / bushing package, to guide and seal the spring-steel piston rods. Precision moulded pistons within 3 types. Threaded pre-load shocknuts in alu with o-ring in. Light but strong nylon spring-cups. Selected, matched and paired shockabsorber springs with color coding.
Front bumper and bodymount
Front bumper with aerodynamic effects and exemplary safety. Some parts of the paid down bumper is cut available to create more steering. Moderate or small foam bumper pad scan nevertheless be fitted as optional. The top carbon fibre bodyplate mounts towards front side bumper with alu post and secures leading bdyposts
Shocktower front side
Superlow 3.0mm carbon fibre shocktowers with 3 functions for top shockmounting. At the heart you are going to mount the 3rd bodypost as needed.
Front side brackets
a concise and superlight structure of topquality aluminium parts consist of top-brackets, L and R equal bearing brackets, reduced suspension system system bracket front. The available style design allows very quickly components change as required, like gear, diff or anti-roll club.
Suspension system front side
Strong lengthy twice A-arm suspension system system with aluminium pivotballs, which pivot in light nylon cups. Complex sort composite arms. The arms pivot internally on springsteel pins. The pivot-inserts are used to alter rollcenter. Little grubscrews mount into the top bracket to manage downstop. Available and change trip height, front width, toe-in, caster and camber.
Steeringblocks
Very strong composite steeringblocks with 2 ackermann roles, L and R usage the exact same . The steeringblocks work inserts, which allow to alter the kingpin inclination to a number one or trailing place. The steeringblocks also enable using the optional carbon fiber aero disks become installed on the cheap flex and a far more direct steering feel.
Wheelaxles / cvd
The spring-steel wheelaxles are seated in high speed bearings. The light and durable spring-steel cvd?s bring all power to the key tires. Tires are mounted to orange anodised high grade aluminium hex-adaptors utilizing flanged wheelnuts.
Anti-roll club front side part
The ballraced cable kind anti-rollbar inside front side is truly easily accessible and alter for just about any other kind or thickness as required. The anti-roll club is linked to the paid down a-arms with a genuine pivotball/cup system, gives direct and smooth procedure and it is simple to set and adjust.
Servo-saver / steering
the newest lowered centraly mounted steel servo-saver post fits the spring-loaded ballraced servo-saver system and steering. The inserts enable 2 ackermann settings. As a result of the available design the linkages with L/R threading is reached effectively. All of your system permits incredibly accurate steering and minimum bumpsteer.
Middle shaft holder
Machined 2 piece aluminium center shaft owner, which firmly holds the springtime steel center shaft, and doubles up as owner the pipe-mount.
Backside brackets
excessively rigid but open buttocks design with a composition of machined alu brackets, enabling effortless upkeep. The differential brackets, L and R equal, are toothed and seat the excentric bearing owner, which enable setting belttension. Its acutely swift and simple to install a differential and or alter a belt. The machined aluminium lower suspension system brackets have actually in fact roll-center inserts with 3 jobs to pick from. The trunk bracket could be the narrow V1 variation.
The 2-speed gearbox shaft holders, two times up as anti-roll mounts, and braking system system foundation. All topquality machined parts with anodising and laser-engraving.
Brake -system
the paid down mounted brake system with superlight disk permits smooth and stopping, additionally the open system stops overheating. The ball-raced excenter and lever provides an extremely smooth and direct brake-feeling.
Rear carbon shocktower and camber bracket
the lower 3.0mm carbon shocktower has 3 top mounting place for the shocks therefore mounts the body-posts. The camber bracket provides 8 functions to choose from, 4 interior and 4 out holes. The shocktower is ready to install the additional body-protectors, which can be optional.
Suspension backside
The rough lower back composite hands alongside the updated uprights create a wider set-up sweet-spot with extra hold plus much more steering. Top of the camber rods connect toward carbon camber bracket with 8 mounting functions for roll-center therefore the camber rod is easy to achieve access to and contains L/R threading for quick modifications. The aluminium pivotball system allows fast alterations in width and toe-in. Inside paid off within the wishbone pivots on springsteel pins, which seat with roll-center inserts in the anodised alu suspension system brackets.
Back wishbones
The difficult composite paid off wishbones function a mounting place for the anti-roll bar linkage which moves the net link place more outside. Its additionally provides a mounting place for an optional carbon shock-mount bracket, to get the lower shockmount place further out, except for the typical set-up its unnecessary. By putting the lower shock further away, you're going to get a lot more steering .
Uprights / wheel-axles
Durable medium sort composite uprights, which seat the wheel-axles bearings. The upright supplies the mounting spot the steel camber-rod with L/R threading. Rolll center chnages are produced within the upright with shims. The upright is set up utilizing the optional carbon fibre aero disks to obtain additional back grip and right line security.
Wheelaxles and driveshaft
The durable spring metal wheelaxles along with springtime steel driveshafts bring the power from gear-diff to your tires. Tires are fitted on high quality anodised alu wheelhex adaptors and secured with flanged wheelnuts.
Anti-roll club right back
The ballraced wire type anti-rollbar in rear is actually available through the utmost effective and change for almost any other kind or thickness as required. The anti-roll club is because of this reduced a-arms with a spring-steel pole.
747 Gear-differentials
Compact, durable and light gear differentials. Pecision moulded steel gears. The durable and light springtime metal lightened diff-adaptors connect with the driveshafts. Front and back geardifferential are exact same, just various pullies.
CVD driveshafts
Spring metal, light and incredibly durable CVD?s utilized in the best. Precision mounted difficult metal pins
Drive-shafts
Spring steel, light and very durable dogbones based in the trunk. Precision mounted difficult steel pins
Pullies
Precision moulded super-true pullies, which function holed sidewalls to allow debris transfer easier. Light and durable.
Belts
Minimal friction Kevlar reinforced belts with fine pitch. Longlasting and smooth.
Belt-tensioner
Ball raced belt-tensioner, machined from aluminium and certainly will install on top or underneath the radioplate.
Gear-box SL6
The fine confirmed SL6 gearbox is standard inside the 748. Light and compact, with suprisingly low rotating mass. Durable and longlasting gears. Quality bearings. Extremely grippy springloaded 2-speed shoes, super easy setting.
True motion Centax clutch
Serpent invented the Centax clutch in mid 90-ties, and all brands used it. Tiny improvements are located to help make the initial system in addition to this. The actual movement Centax has a flat flywheel, although the taper component on pressure dish. This gives the flyweights working even better. The hard anodised aluminium flywheel has 4 holes your can purchase comfortable access to keep carefully the flywheel constantly set up when establishing the pre-tension. The flyweights are made from topquality teflon and feature yet another opening to utilize grubscrews to ensure they are heavier. The red friction clutch footwear is very grippy, and works excellent using the metal clutch housing. The hard anodised gears screw on the threaded metal bell.
Motor mount
The light machined and anodised engine mounts perfectly seats the engine, well alligned utilising the gearbox. Tiny modification might be built to go the engine closer toward gearbox.
