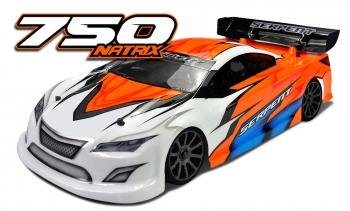

Serpent SER804011 Natrix 750 1/10 200mm gp car  [SER804011]

Product Description

• Key completely new features
  Michael Salven as chief designer, developed this successor the worldchampionship winning 748. The primary brand new feature could be the brand new back geometry which improves right back traction while nonetheless keep a fantastic rotation and steering in corners. This might be alongside improved accessability and ease of maintanance of important components because the diffs for instance.
  Other key top features of the 748 like big-bore shocks and Xli gearbox will still be unchanged.

  Serpent 750; details

  Chassis
  Symmetrical chassisplate optimised flex and torsion, in 7075 T6 aluminium, anodised and laser etched. Chamfered edges to get more ground clearance whenever cornering and countersunk holes. Central slots to install fat, which will slip to the right place and guaranteed in full.

  Radioplate
  The 2mm carbon fibre radioplate has many functions. It holds the fueltank in position that'll be installed on 3 aluminum articles in plastic. About the staying hand component the receiver and right part the battery mounts to a nicely shaped carbon fibre meal that links toward radiotray, sqeezed in right between gear and tank. The radioplate sits yet again reduced on car , for lower center of gravity. Unique features range from the possibility to mount an additional belt tensioner and improved accessability and flex control through a fresh means of repairing the servosaver.

  Central Flex system
  a large part section of the radioplate incorporates an excellent flex-control system. It offers 2 machined aluminium components. The lower one links towards radioplate supports an the top one with screws towards upper aluminum dish and radioplate. You can either run the 748 rigid or with flex . The optional ball-bearings and screws are available seperate. Testing indicates that flex in center rear associated with vehicle has got the many effect and responds numerous predictable additionally.

  750 servo owner
  The composite servo owner is unchanged from 748. Its created to have both servo nearer on center distinct the automobile so that as low that you could. The two lay-down low profile servos are seated acutely near together and install really efficent and easy technique. The owner mounts on radio-tray.

  Linkages
  The throttle / braking system linkage is exact same design as applied to the 977 1/8 vehicle. A pivot-lever system with an ingenius ball-cup system towards guide the cable and possess nearly friction free action.


• 750 receiver field
  The composite receiver industry is little but holds and protects the most frequent contemporary receivers effortlessly. The antenna mounts toward top. The container is securely fastened on radioplate with a nylon bracket . The box is relocated the maximum amount of towards inside as you can. Concerning the radioplate a little owner is fitted to just accept the plugs the battery, to become on/off switch.

  Battery-holder
  Carbon fibre battery-holder positioned between your tank and pipeline, for top level weight balance. The battery is easy to strap along with tape towards the bracket. Spacers allows you to install the battery power greater or lower with regards to the battery pack you plan to make use of.

  750 fueltank
  verified 75ccm nylon fueltank with transparent product to easy see fuel-content. Big springloaded quick-fill cap with seal with big tank opening for easily refills. The bronze sintered filter could keep gas clean and ensure tank will clear till last drop if needed. Fueltank sits low in to the vehicle for low center of gravity. Fueltank is installed with videos on 3 aluminum articles with rubber buffers.

  minimal bigbore shocks
  covered threaded shockbodies in good aluminium. Supersmooth x-ring / machined bushing package, to guide and seal the spring-steel piston rods. Precision machined pistons incorporated into 3 sorts. Threaded pre-load shocknuts in aluminum with o-ring inside. Light but strong nylon spring-cups. Selected, matched and paired shockabsorber springs with color coding.

  Front bumper and bodymount
  the brand new front part bumper has a greater aerodynamic impact and exemplary security. Moderate or tiny foam bumper pad can nevertheless be fitted as optional. The surface of the carbon fibre bodyplate mounts towards front side bumper with aluminum post and secures the best bodyposts


• Shocktower front side
  Superlow 3.0mm carbon fibre shocktower with 3 jobs for top level shockmounting. In the centre you'll install another bodypost as required.

  Front brackets
  a tight and superlight structure of topquality aluminium components include top-brackets, L and R equal bearing brackets, lower suspension system system bracket front part. The available style design allows very fast components trade as needed, like gear, diff or anti-roll club. Also te upper bulkhead are in reality split-design aluminium brackets. An unusual nylon downstop bracket secures constant and easy-to-adjust settings.

  suspension system system front
  unique front liwer hands are no a closed-bottom design. Plastic or optional carbon covers provide adjustable tightness. The strong long double A-arm suspension use aluminium pivotballs, which pivot in light nylon cups. The hands pivot internally on springsteel pins. The top of pivot-inserts are accustomed to change rollcenter. Easily accessible and change trip height, front width, toe-in, caster and camber.

  Steeringblocks
  quite strong composite steeringblocks with 2 Ackermann positions, L and R utilize exact same . The steeringblocks work inserts, which enable to change the kingpin inclination to a respected or trailing destination. The steeringblocks additionally enable using the optional carbon fibre aero disks to be set up on the low priced flex and a far more direct steering feel.


• Wheelaxles / cvd
  The spring-steel wheelaxles are seated in higher rate bearings. The light and durable spring-steel cvd’s bring the power to leading and back tires. Wheels are installed to orange anodised high quality aluminium hex-adaptors utilizing flanged wheelnuts.

  Anti-roll club front
  The ballraced cable type anti-rollbar inside front side is actually accessible and alter for just about any other sort or thickness as needed. The anti-roll club is from the paid off a-arms with an authentic pivotball/cup system, which supplies direct and smooth procedure and is simple to set and adjust.

  Servo-saver / steering
  The servosaver is actually fixed differently on the top. It can remian fixed into the car whenever tje radioplate is eliminated. And also this improves tweak of car. Two different inserts enable 2 ackermann settings. Due to the open design the linkages with L/R threading are reached easily. The entire system permits excessively exact steering and minimal bumpsteer.

  Middle shaft owner
  Machined 2 piece aluminium center shaft owner, which firmly holds the springtime steel middle shaft, and doubles up as owner of the pipe-mount.


• Right back brackets
  extremely rigid but available tail design with a composition of machined aluminum brackets, allowing easy upkeep. The differential brackets, L and R equal, are toothed and seat the excentric bearing owner, which allow establishing the belttension. The newest designed back bulkheads caused that it is feasible to utilize super slim back lower pivots for improved traction and rotation. And also the acces to your diff is feasible without elimination of the belt. The machined aluminium paid down suspension system brackets have actually roll-center inserts with 2 roles available.

  The 2-speed gearbox shaft holders are typical amazing. They're lighter versus earlier versions. The correct hand side can be keeping the entire new braking system system that is just like the one in the event that 988 and a breeze to steadfastly keep up. All topquality machined parts with anodising and laser-engraving.

  Brake -system
  the latest brake system is fixed with just 2 screws and enables immediate access and upkeep. The superlight disk permits smooth and also stopping, although the available system avoids overheating. The ball-raced excenter and lever provides an extremely smooth and direct brake-feeling.

  right back carbon shocktower and camber bracket
  the lower 3.0mm carbon shocktower has 3 top mounting spot the shocks consequently mounts the body-posts. The camber bracket provides 8 jobs to select from, 4 internal and 4 out holes. The shocktower is ready to install the excess body-protectors, that are optional.

  Suspension rear
  the low rear composite arms are a whole new design so when the leading fingers the underside is closed. With a plastic or carbon top cover the tightness is adjustable. They're much longer versus arms regarding 748 and create a wider set-up sweet-spot with a rise of grip and many other things steering. The surface of the camber rods relate solely to the carbon camber bracket with 8 mounting jobs for roll-center as well as the camber rod is straightforward to achieve usage of and contains L/R threading for fast modifications. The aluminium pivotball system enables fast changes in width and toe-in. In lower in the wishbone pivots on springsteel pins, which chair with roll-center inserts within the anodised aluminum suspension system brackets.



• Uprights / wheel-axles
  Durable medium type composite uprights, which seat the wheel-axles bearings. The upright supplies the mounting place for the metal camber-rod with L/R threading. Rolll center chnages can be made with the upright with shims. The upright is mounted utilizing the optional carbon fibre aero disks to obtain additional back hold and straight line protection.

  Wheelaxles and driveshaft
  The durable springtime metal wheelaxles coupled with springtime metal driveshafts bring the power from gear-diff towards wheels. Tires are fitted on high grade anodised aluminum wheelhex adaptors and guaranteed in full with flanged wheelnuts.

  Anti-roll bar backside
  The ballraced cable type anti-rollbar in the back is really accessible from top and alter for other type or thickness as required. The anti-roll club is for this reduced a-arms with a spring-steel rod.

  750 Gear-differentials
  The compact, durable and lighter gear differentials would be the proven design regarding the 748. Precision moulded metal gears, 2 small 14T and 2 big 28T ones. The durable and light spring steel lightened diff-adaptors hook up to the driveshafts. Front and right back geardifferential share similar interior elements.

  CVD driveshafts
  Spring steel, light and extremely durable CVDs found in the foremost and backside. Precision mounted hard steel pins



• Pullies
  Precision moulded super-true pullies, which function holed sidewalls to let debris move out easier. Light and durable.

  Belts
  minimal friction Kevlar reinforced belts with fine pitch. Longlasting and smooth.

  Belt-tensioner
  Ball raced belt-tensioner, machined from aluminium and certainly will install on the top or underneath the radioplate. With all the new design radioplate its potential to put in an additional tensioner for improved gear tension.

  Gear-box SL6 - Xli
  The fine proven SL6 gearbox ended up being redesigned and lighter. Smaller bell, adaptor and footwear decrease basic weigth and rotating mass, for that reason reduced intertia. Durable and longlasting gears. Top quality bearings. Really grippy smaller springloaded 2-speed shoes, a simple task setting.

  genuine movement Centax clutch
  Serpent invented the Centax clutch inside mid 90-ties, and all sorts of brands accompanied it. Small improvements are found to make the initial system better still. The actual Motion Centax has a set flywheel, along with the taper component on the stress dish. This allows the flyweights getting results better still. The hard anodised aluminium flywheel has 4 holes to obtain comfortable access to keep the flywheel in place whenever setting the pre-tension. The flyweights are made of topquality teflon and also yet another gap to utilize grubscrews to make sure they are heavier. The red friction clutch footwear is very grippy, and works exceptional utilising the metal clutch housing. The difficult anodised gears screw onto the threaded steel bell.

  motor mount
  The light machined and anodised motor mounts completely seats the engine, well alligned along with the gearbox. Little adjustment can be designed to get the motor nearer towards gearbox.

  handbook / set-up sheet
  The 750 is sold with the total color construction manual, with an easy task to follow set up steps. The manual also incorporates exploded views area showing all part numbers, therefore the complete parts-list, showing furthermore all optionals. The kit includes a default and blank set-up sheet. Editable sheets have been in the Serpent internet site.

  Decals
  The 750 includes one sheet with Serpent generic logos then one with 750 logos. Decals have become slim product and come pre-cut.

  Packing
  The 750 will come in a solid, little carton package with good illustrations. The packaging the bags follows the actions in manual.


  produced by World and European Champion Michael Salven and tested by globe champion Dominic Greiner.
