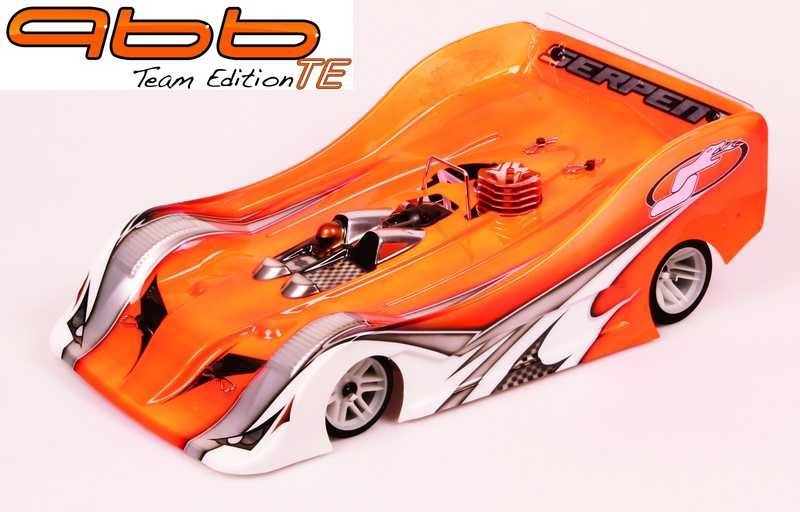

Serpent 1/8 scale 4wd gaspowered rushing automobile framework in Team version. Serpent 966 could be the next generation race-car in line with the extremely successfull Serpent 960 platform.
Specs:
- Course: 1/8th scale gasoline on-road, IFMAR rules
- function: High-end competition
- Major titles: 2.520kg (according to radio gear)
- Weight: 260mm - 266mm
- Track-width rear: 250mm - 260mm
- Track-width front side: Adjustable 296 - 300mm +/-1.7mm
- Wheel base: Adjustable +/- 3mm (backside)
- Chassis: 5mm 7075 aerospace quality aluminium, accuracy CNC machined
- Radio plate: 2.5mm carbon fibre
- Suspension: Independent increase wishbone suspension
- Shock absorbers: RCC-X shock absorbers, pre assembled
- gas tank: 125cc design
- Back axle: Solid back axle
- Front axle: Aluminium front part axle with one-way bearings
- Gearbox: Lightweight 2-speed SL8
- Clutch system: Centax-II clutch system, hard anodized alu. gears 16-19T std
- Directions: complete color directions and Set-up guide
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width, Wheel base, Front and straight back roll centre
- maybe not Included: motor, pipeline, human body, radio gear, tires, tires, battery power pack
Features:
- SL8 gearbox included, for paid off inertia
- front part aero bumper
- split-type carbon radioplate with flex-control, and front stiffner/support
- new front top geometry with inner pivots more away and faster top hands, for much more corner entry hold and many other things part rate
- brand new backside top geometry wth brand new camber-bracket, and top camber-rods alternatively wishbone
- backside lower shockmounts/extenders in carbon, for unique shock-angle
- brand new design tank-top/tank-cap ( identical to S811 )
Backside Suspension
A corner end geometry provides exemplary tail grip and offers a very stable vehicle both under stopping as well as at exiting corners. The OS 2 uprights sport tiny bearings to minimize un sprung fat, 3 upper supply mounting roles along with the possibility to use shims for changing the roll centers. Strong lower wishbones with enough material over the pivot pin and pivot balls, as well as the top arms allow effortless modification of the camber and camber enhance. Longer human body mount fingers offer more down force towards tires yet don't have binding due to their mounting position. Back Body Mount
A corner human anatomy mount regarding Serpent 966 might be connected in a lot of different ways to boost or reduce the downforce transmitted from the body to the rear tires. You will find a lot longer human anatomy mount arms, being installed towards a corner uprights at axle level which supplies more down force toward wheels. The complete assembly is also without binding, meaning there isn't any limitation connected with motion on suspension system.
Rear Anti-roll Bar
The cable kind backside anti-roll club regarding Serpent 966 is ball-raced for additional accuracy and much more precision.The blade type right back anti-roll club is optional.
Adjustable straight back Roll Center and Camber Increase
about the Serpent 966-TE the rear roll centre is adjustable with the use of offset composite inserts, which spot the wishbone pivot pins associated with lower wishbones.The back camber enhance may also be adjusted through same method but regarding top backside wishbone pivot pins. The utilization of composite inserts means both alterations can be simply made track part.
right back Axle
produced from Spring steel, the solid rear axle is very durable and ultra strong supplying an ideal base to mount a large part drive pulley. A steel pin secures the pulley and an o-ring keeps it in position.
Steering Servo Mounting
The steering servo is installed regarding the appropriate part straight to the bottom regarding the radio meal and hangs without any just about any product. The steering system utilizes a centrally mounted servo-saver, which features adjustable spring stress and includes four Ackerman options, using inserts, to help fine-tune the 966-TE steering traits. Adjustable steel track rods with left and right threads are standard.
Receiver Mounting
The receiver in the Serpent 966 can be installed in 2 various positions, according to whether you choose the laydown throttle servo mounting and/or traditional upright throttle servo mounting.
In the event that you mount the throttle servo utilising the laydown setup, the receiver is set up on the left component associated with the radio plate, involving the vehicle's gas tank and exhaust system.
In the event that you mount the throttle servo utilising the old-fashioned upright configuration, the receiver (and protective target) could possibly be mounted beside the throttle servo.
The benefit of these alternative mounting roles is that it offers options for electronic devices positioning, along with options for eliminating any recurring interference conditions that'll perhaps happen.
vehicle's gas tank
Serpent have actually in fact supplied the 125cc fuel tank with a silicone rubber seal the gas tank lid that stops leakage and thus provides more constant motor performance. Made out of silicone rubber, the latest seal had been shaped to produce an ideal seal around the opening about the tank and enabling the tank lid to shut entirely.The tank is made of a newer more powerful material. The tanks have more opposition to shattering in the event of huge impact and customizations towards the lid pivot pin place further make certain a completely sealed tank. The latest product can also be less temperature delicate and may keeps it shape better also whenever hot. The tank offers the possibility to mount small spacers inside to fine-tune the total amount.
straight back Shock Tower
a large part surprise tower concerning the Serpent 966 consists of 3mm carbon fiber, which once again makes this component ultra crash resistant. The trunk shock tower tasks 4 surprise mounting jobs that will help you fine-tune your cars handling track component.
Fast publish Wheel System
The Serpent 966-TE comes standard with both spring-loaded aluminium fast release levers.
Quick-change
This dependable and time-saving system permits very swift tire changes during x-country occasions, letting you get back in the track in only a small amount time as possible.
Adjustable Wheelbase
As a result of the leading wishbone setup, you can quickly adjust the car's wheelbase through keeping of just one top and paid off caster clip for each component about the automobile. To the back you'll put shims in-front or through the back associated with the paid off rear wishbones to obtain plus or minus 3mm.
Modification
The Serpent 966 is a top-level competition racer and it is for that reason totally adjustable. The racer can transform numerous settings effectively and effortlessly, like the suspension system system geometry. The down stops is just accessed and simply modified with maximum impact. Caster, track-width, toe-in, camber, camber enhance, and wheelbase can also be modified with ease, plus the front side and back roll-centre and back human body mount mounting angle.
Bearings
given sealed top-quality lightweight bearings throughout, the drive train is quite efficient and operates very smoothly.
30 bearings as a whole including 3 one-ways.
Gearbox
The SL8 2-speed gearbox is battle proven and is easy to adjust and build thanks to its easy design. The gearbox features large ball bearings for additional durability and smoother rotation. The 8mm shaft offer increased safety.The fresh 2-speed gears are set up towards providers with three small screws and are available in a total selection of gears available in combination with pinions the Centax-II clutch.
Tall Res pic - Exhaust springtime
Exhaust Mounting Spring
Utilizing a spring-type mounting cable to separate vibrations, the springtime is connected to your automobile through an aluminium mounting post connected to the radio dish.
Centax-II Clutch
The Centax-II clutch system features big ball bearings (a 5x13mm and a 5x10mm) also a sizable thrust bearing (5x10mm). This increases durability and ultra-free motion of parts. Featuring an externally-adjustable clutch space spacing method, and a forward thinking pivoting flyweight system.
Engine Mono block
The strong engine mono block that takes advantage of the extra space where in actuality the motor is set up on the LCG (minimal Center of Gravity) framework dish. And while the advantages of the mono block system, to prevent the motor flexing, the block allows the motor become installed low in the framework by 2mm. Due to the motor being lowered the car is actually supplied with a smaller diameter flywheel.
Drive Belt System
The Serpent 966-TE utilizes three Kevlar-reinforced primary drive belts, driven by a series of composite pulleys mounted on aluminium pulley adapters. This allows for a tremendously smooth and efficient drive system that could withstand severe punishment.
Throttle Servo Mounting
The 966-TE provides two possibilities the mounting regarding the throttle servo, to start that will be the the traditional stand-up throttle servo layout. To reduce the vehicles centre of gravity there is also an alternate to set up the throttle servo in a group down configuration. This moves the hefty engine along with other components of the servo lower as well as the within allowing for better weight distribution and C of G.The set down throttle servo installation should fit into the conventional servo mounting space, thus permitting the straightforward change over between designs. If you opt to utilize the traditional upright mounting, you'll be able to mount the receiver beside the throttle servo. Otherwise the receiver is in its standard destination regarding the left side of this radio plate.
Chassis Stiffeners
Another function may be the two carbon-fibre side mounted framework stiffeners. These meals form a good connection in the middle of your front side and straight back section of the 960, and are usually mounted straight to radio stations plate bracket also to the rear bulkheads. They boost the chassis tightness, a vital condition to help with making effective use from the advanced suspension system system adjustment alternatives. The left framework stiffener doubles as a belt-tensioner owner to with a lengthier slot allow changes.
Front Anti-roll Bar
The Serpent 966-TE comes standard with an adjustable front anti-roll club. By rotating the two blades, you can adjust the tightness. Centering with a sophisticated adjuster eccentric.
Front Axle
Leading axle is made of high-grade aluminium and contains the best quality one-way bearings lubricated with one-way lube. This guarantees a frequent drive on front Spring steel drive cups.
principal back brackets
Anodized, cnc machined, aluminum main rear axle supports with coated alu eccenters; more rigid, better rear axle help for an extremely genuine running rear shaft, simple belt-tensioning, fast access for maintenance. Utilizing the eccenters you'll be able to choose 3 jobs for rear- belt tensioning. By detatching the eccenter making use of one side the rear shaft with pulley and belt could possibly be accessed quickly. Principal rear helps are machined maximum to repaid fat, but retain rigidness at the same time. Pins are pre-pressed into the base with this brackets which in turn chair towards placement holes inside framework. Precise and safe.
Enhanced RCC Shock Absorbers
The RCC surprise absorbers are super-smooth and intensely quite simple to build. Machined from steel and distinctive because the shock systems only open about the bottom half, they have been actually easy to assemble. They include a collection piston no further utilize a diaphragm similar to the final shocks but a foam. The result is an ultra-smooth and air-free surprise absorber because of the self-bleeding system integrated toward design.The seal-package in the shocks is improved ( unique x-ring / bushing) and offers better help on rod. Little modification, BIG benefit.
Lower mounted brake-assembly for reduced LCG. Spring-loaded brake-plates slides on polished metal shafts. Ready-to-run braking system plate/pads construction with completely new friction braking system product. The ball-raced difficult anodized brake-cam push the 2 bigger pins that are seated within the aluminium bracket, up against the brakeplat, to produce really smooth along with force towards dish.
Brake-system
The brake system guarantees strong and efficient stopping energy. The braking system pads include two metal plates using the friction material pre-baked towards meals, and the stopping system disk is manufactured out of dual ventilated discs with an air-cooling alu centre.The brand new stopping system sits lower in the car to greatly help LCG. These devices is effortlessly accessable for maintenance, due to its really available design.
The spring-loaded bar-pads slip on polished steel pins and so are triggered through the ball-raced braking system cam, a large pin moves horizontally to stimulate the braking system system. As a consequence of the horizontal action of pin, and not the twisting of brake cam, all distortion of this type is eliminated as well as the braking system pads are evenly pressed together. The brake cam is supported by ball-bearings for smooth, accurate action. This further enhances the accuracy and exemplary stopping energy connected with stopping system.
Chassis Dish
The backbone of this car will be the framework plate, which has been CNC-machined from incredibly rigid american 7075 T6 - 5mm aerospace-quality aluminium and recreations a diverse front part opening to regulate the best anti-roll club. A cooling slot underneath the engine assists assist heat control while chamfered edges stop the framework from getting on kerbs providing it better general ground approval regarding track. It houses the electric batteries, that is mounted into the newly-designed carbon fibre battery power mounting dish and is held create by four screws, screwed straight to the chassis meal it self. This 966-TE meal has additionally been machined to simply accept the optional front part stiffener dish.
Front Bumper and Body Mount
the best human body mount of Serpent 966 is screwed straight down combined with bumper, allowing for several flex in the torso post mounts whilst keeping the tightness related to basic installation. The body mount is held further through two screws mounted from part.As using the back roll centre, the leading roll centre can be easily modified. The modification is performed by removing leading top suspension system brackets and placing spacers underneath the brackets thereafter re-attaching them towards vehicle.
The 966 comes with anodised aluminium front part upper suspension brackets being machined from one little aluminium. These attractive pieces are incredibly strong and supply great security in the event of much impact. One other great benefit of this part is due to the utilization of inserts, with an offset opening, it is easy to adjust the pivot place associated with top front wishbones.
Another good design function is that the same front suspension system bracket could be utilized on both left and right sides regarding the automobile.
Thew new aero bumper may be used closed, or partially available, by reducing the aligned inner parts.
Steering Obstructs
These Wide offset (WOS) steering blocks may be used in 2 various designs by swapping the medial part connected with car these are typically installed on. These customizations, based independently the steering blocks are utilized on, will either supply more change in on corner entry, or maybe more on power steering at corner exit.
The included eccenters make sure the axle is raised more than centre line, which improves the consequence due to this brand new configuration and because of the use of eccenters the bearings are now actually additionally smaller and lighter, reducing un sprung fat.
Front Suspension System
the best anti-roll club levers, which are often using the down stops enabling easier tweak. They put inwards, in the bearing-blocks, helping to make them more effective considering less flex. The best paid off arms accommodate leading anti-roll club destination.
Battery Mounting Plate
The carbon fibre battery mounting dish was created to have the ability to accommodate a variety of battery pack configurations, for instance the main-stream 5 mobile pack. The battery mounting dish comprises of a 2mm black colored carbon fibre and it is installed towards framework dish by four countersunk screws.
Radio Plate Help Bracket
the air meal assistance bracket, put straight at the motor, furthermore acts as the mounting point for the roll over club.
Aluminium center bracket
The Serpent 966 comes provided an aluminium center bracket as standard. Changing the conventional composite variation, the modern component is a lot stiffer therefore decreases flex within axle which prolongs living of belts and pulleys.
Adjusting nut for pivot balls
These adjusting nuts are manufactured from Nylon and replace the earlier aluminium nut with synthetic insert that may not just makes installation easier, also reduces un-sprung weight. Reducing the elements used at this point also decreases part perform so it produces an even more accurate management automobile and also as the material utilized is self-lubricating the motion of pivot ball will always be smooth throughout usage.
Pivot Balls
Made from Spring metal, these polished 8.5mm pivot balls are virtually unbreakable and guarantee the smoothest suspension system system movement feasible.
Driveshafts / wheelaxles
Serpent only use the highest-quality drive train inside their automobiles. The 966 vehicle comes given the best springtime metal drive shafts with the capacity of withstanding constant punishment; these shafts are ultra durable and extremely stiff enabling you to undoubtedly put your power to the tarmac.
Front CVD and back regular dogbones
created from Spring metal, leading and back wheel axles are particularly durable and ultra strong. These are typically a precision fit for the important thing bearings whenever mounted aided by the supplied shims to make certain a good precise wheel fit. The leading axle additionally accocunts for part of the CVD shafts that can be one of them kit and may therefore be used with both the supplied quick launch system and/or optional wheel nuts.
Front Shock Tower
Leading surprise tower associated with Serpent 966 is manufactured from 3mm carbon fibre, making this part ultra crash resistant. The leading surprise tower also features two shock mounting jobs to assist you fine tune your automobile for just about any track conditions.
Adjustable Front Belt Tension
A fantastic function is the power to adjust the stress with this front gear. The simple-to-use bearing eccentric holders allow simple and fast environment.
The 966-TE features a split kind radioplate. The bigger central components links with a pole to your front side stiffner. The main component front screws which url to your bulkheads could be loosened to produce more flex; the pole will get a handle regarding the flex.
assessment unveiled that flex inside front side has more impact compared to the backside or main area of the framework.
The 966-TE included the newest developed Serpent gearbox with 8mm shaft and new flange, bell and gears. a completely balanced gearbox with suprisingly low inertia, and a fantastic bearing sitting.
Durable and ultra fast shifting.
The brake-disk and pulley-adaptor with 3 pins is modified, and a fresh alu hardcoated part pully in included to match the 8mm shaft.
buttocks connectors
Tail connectors in plastic and alu, to influence tail flex.
