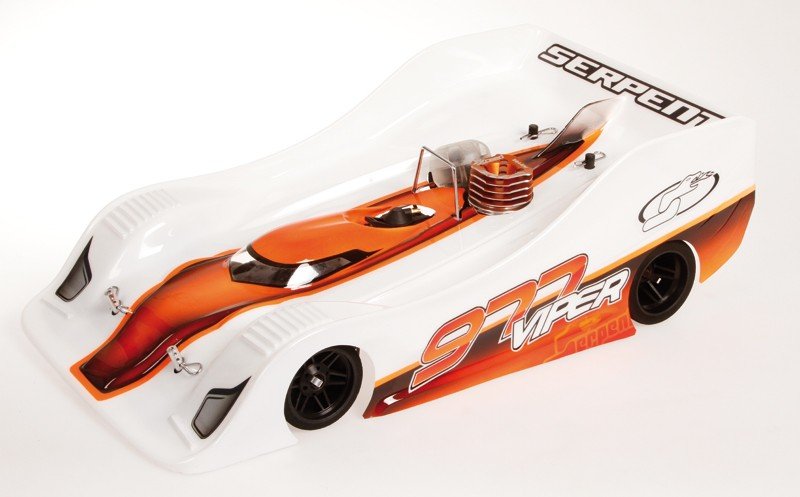

Serpent 1/8 scale Viper 977 racing automobile. 2013-2014 IFMAR TQ and World Champion, Japan Tadahiko Sahashi with Viper 977 Gaspowered toplevel racecar with 4wd, belt-drive, Centax real motion clutch, SL8 gearbox, flex-system front side and rear, braking system on rear axle, front one-ways, rear sold axle, ballraced anti-rollbars. A totally adjustable battle framework towards latest spec and technology. Lighter, easier, stronger, new geometry, more tuning features.
Requirements:
- program: 1/8th scale fuel on-road, IFMAR rules
- function: High-end competition
- body weight: 2.420kg (in accordance with radio gear)
- Track-width right back: 260mm - 266mm
- Track-width front side: 250mm - 260mm
- Wheel base: Adjustable 296 - 300mm +/-1.7mm
- Chassis: 5mm 7075 aerospace quality aluminium, accuracy CNC machined
- broadcast dish: 2.5mm carbon fibre
- Suspension: Independent double wishbone suspension
- Shock absorbers: RCM surprise absorbers
- vehicle's gas tank: 125cc design
- straight back axle: Solid rear axle
- Front axle: Aluminium front axle with one-way bearings
- Gearbox: Lightweight 2-speed SL8
- Clutch system: Centax true movement clutch system
- guidelines: Complete colour guidelines
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width, Wheel base, Front and rear roll centre
- Maybe perhaps not Included: motor, pipeline, human anatomy, radio gear, tires, tires, battery pack
Features:
- Complete brand new platform, 90percent brand new elements
- Lighter, though superstrong and durable
- Lower center of gravity
- New front side and backside geometry
- New interior drive ratio with brand-new pullies
- Brake concerning the rear axle
- New front flex system
- very easy to exert effort on with numerous tiny details according to below
- Many components are symmetric left/right (except front lower arms, back 2-speed bearingblocks )
- numerous ballbearings operate in synthetic bushings ( except brake-cam, servosaver)
5mm aluminium framework in perfect symmetrical form also for flex and weight distribution. Aerospace quality 7075 T6 alumnium with engraved logo. Improved stiffness around the engine for better motor performance. Countersunk holes, chamfered sides for much more cornering, ground approval. Region in center area of the framework allowing mounting of optimum 3 brass sliding loads, that are utilized as set-up tool, to play with chassis stability. It offers big influence on steering, hold and tyre use and it's also quite simple and quick to change. All screws from the base are with 2.5mm allen size.
The strong aerodynamic shaped composite bumper comes from the 966-TE . The upward edges ensure it is more stabile, so these wont touch the most effective under effect or with a top conditions.
The durable composite front bodyposts are excentric, permitting going your body to front side or right back several mm to optimize steering / downforce.
The latest steeringblock , which is installed kept or appropriate, offers something to enhance the axle place more to front or straight back providing a trailing or leading steering, and capability to change the kingpin-inclination and offset.
The spring-steel steering-rods are fastened to your alu steeringplates, which mount towards the brand new steeringblocks. Optional carbon fibre disks is set up privately related to uprights to stiffen the construction and for aerodynamic reasons.
The steeringblock is appropriate and left similar, and features an aluminum dish to get in touch the steering-rods, 2 alternatives for Ackermann.
The newest longer durable front side reduced wishbones, are set up superlow inside the car, and show a semi covered leg for the inner suspension system pin as well as the pivot hyperlink for the front side anti-roll bar system, its also provides an extension the down-stop screw . The paid off fingers keep consitently the reduced alu shockmount meal, enables a further away and greater mounting point for the front shocks. The strong brand new top arms in-may be utilized kept and appropriate. Leading reduced fingers connect to the alu front side bracket on low nylon holders. The kit includes 2 versions, low and superlow. This technique also enables you to alter a front driveshafts very quick and simple.
The longer top arms are installed relating to the anodized aluminum top brackets, which also support the suspensionpin inserts to permit camber-change modifications with 3 feasible inserts . Underneath the alu top-brackets spacers could be regularly modification angle or height. Caster spacers are employed as simple videos regarding top pivot pins. Exact same videos may also be utilized on the lower pins to improve wheelbase.
The topmounted composite bracket provides extra stiffnes to your front side area, it holds the 3mm dense carbon fibre front shocktower and permit the down-stop screws.
The ballraced front anti-roll bar changed to a wire kind, with fairly simple and fast available access regarding front part, captured in alu front side braces. The standard cable is 2.5mm and 2 other as alternatives. The pivotballs link system directs the ability to the club in a smooth method and an easy task to control the tweak aided by the captured pivotball.
Right in front side the alu front part axle with Japan-made one-way bearings features now a much better pully set up, free of play and super-true. Springsteel drivecups, strong, long and slim spring-steel driveshafts with CVD system, and ballraced springsteel wheelaxles with alu quick-change levers. The available front end design permits quickly and simple elimination of the leading axle or components.
The newly designed springloaded servo-saver permits effortless and fast Ackermann settings. The servo-saver features a top mounted insert which are generally used in 3 jobs. Another 2 Ackermann roles regarding steeringblocks.
The latest steeringblocks and back uprights relate genuinely to the hands with springsteel 8.5mm pivotballs , which run exceedingly smooth and well protected in nylon cups, and are simple to adjust with an allen unit.
Lowered split-design 2.5mm carbon fibre radioplate frontplate to reduce the biggest market of gravity and allow the newest optional flex-control system. The frontplate creates an extremely rigid front side side unit that also covers the servosaver to enhance steering accuracy. The radioplate holds the fueltank, the receiver battery pack and integral electronic devices bracket/box.
Leading end construction includes an optional system allowing from zero flex for some flex, as much as needed for optimal usage. A sensible system composed of a bearing and bushing controls the flex. This set is optional. To allow the flex the radioplate is split in 2 sections. One of the keys dish allows the torsion, since the front side meal keep consitently the front end rigid, and so the flex does occur simply where most effective. Standard the flex-space is filled up with an oval nylon spacer. The flex parts contain 2 bearings and 2 inserts. By loosening the screw of alu holder within the front of main radioplate , the flexsystem could be triggered ( or fasten to de-activate ).
Compact composite brace and package in a single, which holds and protects the receiver and mounts both servos, which both lay on their sides, only feasible, merely a small approval to allow for framework flex. The cap associated with the receiverbox provides a distinctive yet simple and easy safe owner the cable connectors of the receiver, which works as a simple switch and is very available.
The optional carbon transponder brace mounts towards the integrated electronic devices brace. When working with a little receiver, the container has area to keep the transponder too, but ought to be tested for function prior to the competition. Inside our test it worked.
Paid off 125ccm fueltank in a whole new long and slim design, with a premounted bronze filter. The slim tank makes yes a much better fuel-supply to the engine, since the gas can go less backwards and forwards. The labyrinth inside the fueltank may also keep consitently the gasoline more stabile and avoids foaming. The tank also offers elevated parts in the front side, which can make yes the fuel stays near to the filter whenever the tank is amlost empty. This creates like a warning signal a matter of seconds ahead of the tank goes completely empty, that will help you try to look for a safer spot to park. The fueltank has an excellent springloaded limit and silicone rubber shaped seal, and it has an association the pressure line. The inner base of th tank enables mounting inserts to scale back amount if required.
The composite nylon radioplate bracket, holds a corner some the radioplate while the strong chromed angled roll-bar, also mounts the adjustable ballraced belt-tensioner. An aluminum one is optional.
All the topmounted screws may be found in allen 2.0mm size, excluding the top suspension brackets in 2.5mm.
The batteryholder between the tank and side belt , is made to fit the greater common Lipo packages. Additionally there was room enough to accommodate a regular batterypack. The master includes a straightforward spacing system permitting this.
The light, hollow 8mm hardcoated aluminium middle shaft is kept rigidly in destination a little, low put and light alu owner, which also holds the spring-type exhaust-wire.
The last drive ratio for the automobile is 2.286
28T front side pulley
18T mid-inner pulley
25T mid-outer pulley
19T exterior lay-shaft pulley
21T internal layshaft pulley
48T back axle pulley.
All the superround and true pullies have actually in fact holes inside part flanges to allow dust and dirt to move out easier. The 977 has a complete new set of pullies, with additional teeth, so larger diameter making the belts operate smoother, with less friction.
The belts are low friction sort as standard, straight back one as 8mm, part in 6mm and front 6mm too. The adjustable ballraced belt-tensioner ( carbon, alu) keeps the sidebelt running smooth.
The lower seated anodized aluminum engine mounts keep consitently the engine well positioned and aligned and move temperature towards the framework in best way.
The latest tail construction with all the alu brackets holds the braking system and rear axle. Its available design allows eas of maintenance and cleansing, and needs hardly any screws to dis-assemble. Changing a belt whenever required, is simple and very fast too. The excenter on backside shaft permits gear tensioning. The complete rear end are eliminated as you product from chassis, with few screws.
The trunk axle sits lower in the automobile than ahead of, to accomplish more technical hold.
The stopping system relocated to your back axle, beside the solid axle pully. This reduces the inertia effectation of the brakedisc plenty because the rear axle spins a tremendous amount slower versus twospeed shaft. As well as the brake-stress in the back belt 's almost gone. Its a really compact system and well protected against dirt, but nevertheless available enough to allow for adequate coolng. The swimming ventilated brake-disk rotates on a large part axle and springloaded cam-operated brake pads provides all the stopping power you will need. The race braking system pad material is baked on strong metal dishes and allows really exact braking with plenty of brake-feel / feedback. As opposed to a cable we chosen the well-proven wire-linkage of all of the Serpent cars.
The ballraced braking system activator is bolted in a light alu owner to the right back bracket.
The ballraced backside anti-roll bar mount in metal adaptors, which run in nylon spacers inside alu holders as crucial the key back brackets, with 2.5mm as standard cable and 2 other as alternatives. The anti-roll club links towards straight back paid down arms with adjustable trackrod guidance.
The solid straight back axle with new lightweight 48T pulley in Serpent springsteel, 9mm wide with 4 slots for the pin.
The aluminium rear brackets in addition to the 2-speed layshaft holders have actually small ears which allow for mounting from the optional alu or plastic spacer, to control flex. Either complete flex, no spacer, or some flex with plastic spacer, or zero flex utilizing the aluminium spacer.
The suspension system system bracket and back meal support the pins securely and have composite roll-center inserts allowing for fast and exact changes.
In the straight back strong springsteel driveshafts , springsteel wheel-axles with alu quick-change levers and a springsteel back axle. Actually durable and enduring drivetrain
This brand new longer durable backside paid off wishbones may be used kept and appropriate. The reduced right back supply holds the reduced installed link for the backside anti-roll club and holds the alu mounting bowl of a corner shocks, permitting a scenario which is extremely far towards the back and to the top for most readily useful performance/ geometry. The lowr arms additionally keep consitently the available down-stop screws. Nylon videos can be used regarding paid down backside pins to change wheelbase.
The durable composite uprights retain the ballraced springtime steel wheelaxles, with aluminium quick-change levers. The 8.5mm piotballs are used to adjust camber without headaches because of the smooth hex-shaped plugs . The hands regarding the drifting bodymount mount toward the surface of the uprights. Within the up-right spacers is added underneath the pivotball to improve rollcenter and camberchange.
Optional carbon fibre disks could be attached to the medial side with this uprights to stiffen the construction as well as for aerodynamic reasons.
The adjustable back top camber links mount toward back carbon camberplate with 2 jobs .
A large part drifting bodymount is attached to the up-rights with 2 arms and held constantly in place by a carbon-fibre-steel guider. The two hands have 2 positions to pick from, based on human anatomy used. In conclusion with this mount enable mounting body-supports , with complete threading to permit precise positioning. The device leads the available downforce direct onto towards uprights towards the tyres.
The compact, light 2-speed gearbox comes right through the 966, featuring its verified durable and effective design, superb gears and lasting one-way. The 8mm springsteel 2-speed shaft is lightened , but nonetheless in safe side to stop flex or breakage .
The brand new Serpent real Motion Centax clutch is prepared. Serpent as inventor the original centax clutch, is rolling out the clutch as time passes and also the present variation excels in energy throughput , dependability and eas of environment. The conventional verison comes with aluminium clutch bell and hard anodized clutch-gears.
The kit features high speed ballbearings, mostly sealed ones with aeroshell lubrication or oil. All bearings in to the vehicle ( with the exception of the servosaver and brakecam) are seated in nylon bushings to cut back vibrations and play.
The shockabsorbers will be the latest Serpent RCM devices with membrames. The threaded homes with setting-nuts ( or-ring inside) makes ride height improvements effortless and precise. Leading and back surprise are identical. The RCM shocks have grown to be smooth, and simple to assemble and fill. The shocksprings are plumped for, matched, flatgrinded, colorcoded devices, equal size front part and rear.
