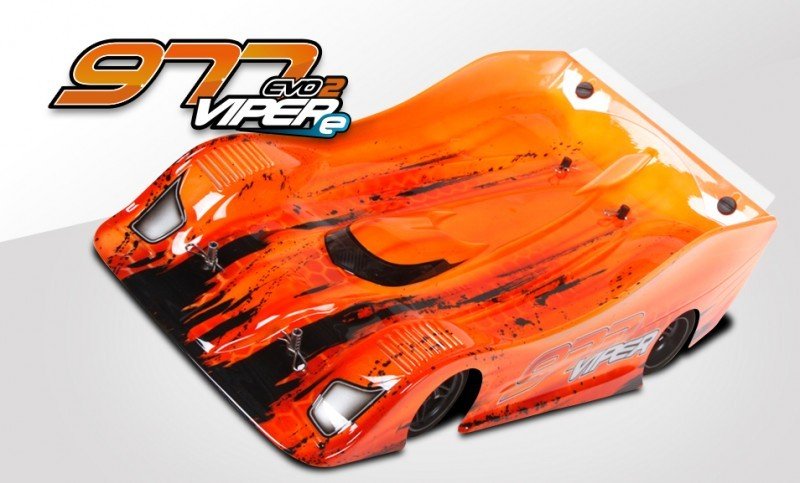

Viper 977-e EVO2 1/8 EP high-end competition electric 1/8 scale 4wd onroad race automobile. Aluminium framework, carbon topdeck, 2 belt-system, front one-ways, right back solid axles, bigbore shocks, smart battery-holder and motorholder. Totally adjustable suspension system system. EVO-2 variation with narrow pivot buttocks geometry and 5mm aluminium chassis. Electronics, tyres, body perhaps not included.
Specs:
- Class: 1/8th scale electric on-road
- Function: High-end competition
- Weight: 2.7 kg (dependent on gear)
- Track-width backside: 260mm - 266mm
- Track-width front: 250mm - 260mm
- Wheel base: Adjustable 296 - 300mm +/-1.7mm
- Chassis: 5mm alu, precision CNC machined
- Radio meal: 2.5mm carbon fibre
- Suspension: Independent double wishbone suspension
- Shock absorbers: RCM bigbore shock absorbers
- Rear axle: Solid back axle
- Front axle: Aluminium front side axle with one-way bearings
- Directions: complete color guide as PDF
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width, Wheel base, Front and right back move centre
Features:
- Aluminium framework 5mm and carbon top dish 2.5mm
- Carbon fibre battery pack bolder / protectors, fully adjustable fits most 2S and 3S LIPO batteries
- 2 gear system with 5mm belts
- big pulleys and ball raced belt tensioners
- Aluminium 7075 T6 engine owner
- Aluminium fan-holder
- 15T engine pulley / 48T spur ratio
- Viper 977 EVO2 front and rear suspension
- unique slim pivot EVO-2 kind end
- Minimal sort big bore shocks
- Race-ready weight around 2700 to 2750 grms
Anti-roll pubs
The ball raced front anti-roll club is a wire sort, with very easy and fast open access inside front, captured into the aluminium front part braces. The normal cable is 2.5mm and 2 other as choices. The pivot balls link system directs the capability towards the bar in a smooth method and easy to modify the tweak along with the captured pivot ball.
The ball raced back anti-roll bar mount in steel adaptors, which run in nylon spacers into the aluminium holders as essential area of the back brackets, with 2.5mm as standard cable and 2 other as choices. The anti-roll club links to your back reduced hands with adjustable track pole guidance.
Front one-way axle
in the front side the black colored anodized aluminium front axle with Japan-made one-way bearings features a totally free of play and super-true pulley installation. Spring steel drive cups, strong, long and slim spring-steel driveshaft with CVD system, and ball raced spring steel wheel axles with aluminium quick-change levers. The available front end design permits fast and easy eradication of leading axle or components.
Rear brackets
a corner end construction utilising the aluminium brackets holds a corner axle. Its available design permits easy upkeep and cleansing, and needs hardly any screws to dis-assemble. Changing a belt whenever needed is easy and extremely fast too. The eccenter regarding rear shaft permits gear tensioning.
The suspension system bracket and rear plate contain the pins firmly and have now now composite roll-center inserts to permit for fast and accurate changes.
Straight back axle
The solid straight back axle with new lightweight 48T pulley in Serpent springtime steel, 9mm wide with 4 slots the pin.
Drivetrain
in to the rear strong springtime metal drive shafts, springtime metal wheel-axles with aluminium quick-change levers and a springtime steel rear axle. Very durable and lasting drivetrain.
Back wishbones
The long durable back lower wishbones may be used held and appropriate. The low back supply holds the lower installed hyperlink the rear anti-roll club and holds the aluminium mounting full bowl of a large part shocks, that allows a posture that will be really far toward back and also to the outside for best performance/ geometry. The paid down arms additionally keep the available down-stop screws. Nylon videos are placed on the reduced rear pins to alter wheelbase.
Uprights
The durable composite uprights retain the ball raced spring metal wheel axles, with aluminium quick-change levers. The 8.5mm pivotballs are accustomed to adjust camber without headaches utilising the smooth hex-shaped plugs. The hands for the drifting body mount at first glance associated with the uprights. On top of the up-right spacers could be added in pivot ball to change roll center and camber change.
Optional carbon fibre disks could be set up on the medial side the uprights for aerodynamic reasons.
The adjustable back upper chamber links mount towards the rear carbon camber meal with 2 jobs.
Body mount back
a large part floating human anatomy mount is set up in the up-rights with 2 arms and held set up by a carbon-fiber-steel guider. The two arms have actually 2 jobs to pick from, depending on human anatomy utilized. The finish of mount license mounting body-supports, with full threading to allow accurate positioning. The product leads the available downforce direct onto on uprights towards tires.
Bearings NSK
The kit features high rate NSK ball bearings, mostly sealed people who have aero shell lubrication or oil. All bearings in to the automobile (excluding the servo saver and brake cam) are seated in nylon bushings to cut back vibrations and play.
Shocks
The surprise absorbers would be the latest brief Serpent Big bore devices with membranes. The threaded systems with setting-nuts (O-ring inside) make drive height changes simple and accurate. The leading and rear shock are identical. The shocks are especially smooth, and easy to construct and fill. The x-rings are pre-oiled. The surprise springs are opted for, matched, flat grinded, color-coded devices.
Front suspension system system hands
The long durable front side side reduced wishbones are installed super low in the automobile, and feature a semi covered leg the interior suspension system system pin plus the pivot website link for the front side anti-roll club system, this has an expansion the down-stop screw. The paid off arms support the lower aluminium surprise mount plate, that allows one more away and higher mounting point the front shocks. The strong top fingers can be utilized kept and appropriate. The best reduced hands attach to your aluminium front bracket on really low nylon holders. The kit includes 2 variants, low and super low. This system also allows you to alter a front driveshaft excessively quick and easy.
The longer top hands are mounted relating to the anodized aluminium top brackets, that also keep carefully the suspension system pin inserts permitting camber-change changes with 3 feasible inserts. Within the aluminium top-brackets spacers may be used to change angle or height. Caster spacers are used as effortless videos in the upper pivot pins. Same videos may utilized on the low pins to boost wheelbase.
The most truly effective mounted composite bracket provides extra tightness towards front part, it holds the 3mm dense carbon fiber front surprise tower and ask for the down-stop screws.
Steering obstructs
The steering block, that will effortlessly be installed kept or appropriate, provides a method to boost the axle position more to front or back offering a trailing or leading steering, as well as the ability to restore the kingpin-inclination and offset.
The spring-steel steering-rods are fastened toward aluminium steering meals, which mount on brand new steering blocks. Optional carbon fiber disks is set up independently about the steering obstructs to stiffen the set up and for aerodynamic reasons.
The steering block is appropriate and left the same, and features an aluminium plate so that you can link the steering-rods, 2 selections for Ackermann.
The steering obstructs and right back uprights attach to the hands with springtime metal 8.5mm pivot balls, which run really smooth and well protected in nylon cups, and therefore are easy to adjust with an Allen tool.
Although the Viper 977-e is founded on the Viper 977, it offers a lot of features which make it another Electrical rushing vehicle:
Drive
2 gear system with 5mm wide belts for optimized effectivity. Both belts have actually ball raced belt-tensioners.
Chassis
5mm stiff aluminium framework in perfect symmetrical form even for flex and weight blood circulation.
Countersunk holes, chamfered sides to get more cornering, ground clearance. All screws through the base are with 2.5mm Allen size. Many pouches inside the framework making it exceedingly light but still rigid. As optional the complete carbon framework may be used which weighs around 90 grams less.
Top deck
2.5mm carbon fibre top-deck generate a solid and rigid connection between the fronts and rear-end linked to the car. The servo is mounted throughout the car and that can take large and low profile servos. The center provides additionally space the receiver which will be frequently glued towards small plate/ videos.
Battery holders
Strong carbon fiber battery holders, which might be efficiently modified to match numerous popular 2S or 3S battery pack packages. The batteries are relocated more toward front and/or straight back utilizing the versatile mounting system. This is always change the stability about the car, generate more steering or grip. The lower and main place connected with batteries creates the best and greatest feasible CG.
Speedo
Strong carbon fiber speedo dish, which fits chosen speedos well. The plate with speedo linked is merely eradicated.
Motor holder
Smart machined aluminium motor owner in 8mm produces an exceptionally durable product, which can stand the enormous energy linked to the brushless engines. It is also linked to the back bearing obstructs to generate a rigid, yet versatile construction. The gear mesh is effortlessly modified from base related to car. The kit includes a 14T pinion; other pinions can be obtained as choices,
Mid shaft
center shaft owner in 7075 T6 aluminium to place on and offer the mid-shaft and spur (14T/48T). This will make changing a spur gear a quick and simple event.
Bumper
The strong aerodynamic shaped composite bumper arises from the 977. The upward sides help it become more stable, so these won't touch the outer lining under impact or with a high conditions. It features split inserts left and right that may be eliminated and clicked back in effortlessly.
Body post
The durable alu front human body articles are eccentric, to permit going the body to front part or straight back several mm to optimize steering / downforce.
