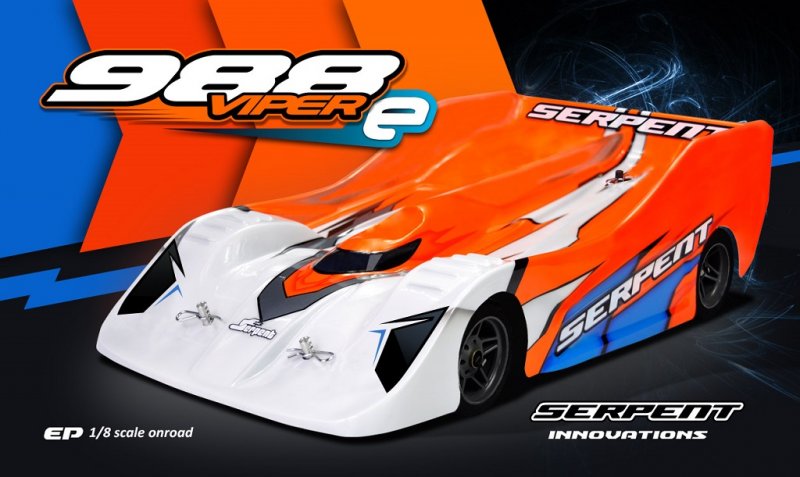

Serpent SER904004 Viper 988-e 1/8 4wd EP [SER904004]

Price:

AUD$1,018.34

Brand:

Serpent

Model:

SER904004

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category

Write a review

alt="Serpent SER904004 Viper 988-e 1/8 4wd EP" title="Serpent SER904004 Viper 988-e 1/8 4wd EP"

Description

Joining together the utmost effective of both worlds has generated the best 1/8 electric race automobile. We been able to cut back fat, enhance fat circulation and efficiency. The design concerning the 988E also can make it a breeze for results on for quick setup modifications and maintenance.
2 belt design with perfect fat distribution and enhanced transmission effectiveness.
very light, ultra-narrow 4mm chassis-plate with symmetric design and main repairing points for suspension system, batteries and electronics
Ultra-true, low-friction mid shaft installation, featuring 2 big-size ball bearings. The put up is straightforward to get rid of for spur gear changes and fundamental maintenance
Carbon, straight twin top deck design, producing the backbone of this automobile. It gives the framework the proper stability between torsional flex and longitudinal stiffness.
Multiple design choices allowing for 4-S layout.
And additionally 6-S layout.
Symmetrically mounted Carbon battery pack mounting dishes with Velcro band system and integrated, flex-free stiffeners
Low, centrally mounted radioplate
7075 T6 Aluminium 4mm framework dish
The 4mm aluminium framework has perfect symmetrical shape for even flex and fat distribution. The ultra-narrow framework is incredibly light, although it nevertheless continues to be rigid with the carbon vertical top deck backbone. The Viper 988E logo is laser etched.
A carbon spacer for the buttocks stiffens the chassis and will act as a spot unit for the bulkheads and brackets of straight back suspension.
The newly developed front Flow bumper is a very durable and will be offering removable inserts. It’s super easy and quick to change the aerodynamic characteristic in just a few seconds. By removing or incorporating the inserts to increase or decrease steering and turn-in. The ribs in bottom guide the atmosphere below the framework and human anatomy.
The strong aluminium front body posts are eccentric, permitting motion of the human body several mm forward and backwards to optimize steering and downforce.
The steering obstructs, which are equal left and right, offer one thing to improve the axle spot to a “trailing” or “leading” place, as well as the power to change the kingpin-inclination and offset. This enables many options to fine tune steering stability in many stages for the corner. The steering block features an aluminium dish allowing you to connect the springtime metal track-rods. They will have 2 Ackermann choices.
Optional carbon fibre disks might be set up on along side it of the steering blocks and uprights for aerodynamic modifications.
The long durable front side paid down wishbones will be in a fresh hollow kind design with shut base for improved aerodynamics and possess separate top installed moulded inserts. An aluminium shock mount meal is screwed regarding paid down wishbone. This allows the shock attachment point to be placed further outwards increasing shock motion. Leading reduced arms are set up towards front part brackets with nylon holders. The kit includes 2 variants: inside and out. This system additionally permits quick and easy front drive shaft upkeep.
The left and right interchangeable top hands are set up with 3 place nylon suspension system pin inserts. The 3 place inserts enable camber-change modifications and so are held in position by the anodized aluminium top brackets. Underneath the top brackets, spacers may be used to change their angle or height. Caster is modified with clips concerning the top pivot pins. Equivalent videos are employed in the paid off pivot pins to improve wheelbase.
The wire sort front part anti-roll club is ball raced. It is easy to change and adjust due to the available front side side end design. The traditional cable is 2.5mm and 2 optional thicknesses are available. The pivot ball website link system directs the suspension system movement toward club and allows effortless tweak modification.
The steering obstructs are for this hands with springtime steel 8.5mm pivot balls, which operate really smooth and well protected in nylon cups, and so are a facile task to modify with a 2.5 hex tool.
The black colored anodized aluminium front axle has Japan made one-way bearings. Spring metal drive cups hook up toward long and slim spring-steel drive shafts with CVD system. The ball raced spring metal wheel axles have actually aluminium quick-change levers. The available front end design allows quickly and easy removal of the leading axle and driveline components.
The central mounted steering lever permits simple and easy fast Ackermann modification. The steering lever features a high mounted insert which are often utilized in 3 jobs. Another 2 Ackermann functions can be acquired into the steering obstructs.
The vertically put top decks stiffen the framework within the longitudinal way, while managing the torsional flex. They're made out of 2 high grade carbon meals that connect the main motor mount towards front part and back ends for the car. Their design had been extracted from our competition proven 4X electric touring car and changed towards needs concerning the Viper 988E platform.
The Viper 988E is created for maximum driveline effectiveness. The appearance is obtained from the 1/10th electric which effectiveness is essential and adjusted towards power related to 1/8th application.
The mid shaft construction features 3 bid-size ball bearings all together to reach a low friction, super-true rotating construction. It is extremely simple to disassemble the mid shaft to alter the spur gear or belts.
The very last drive ratio associated with the automobile is 1.71
28T front pulley
19T mid-front pulley
28T mid-rear pulley
48T back axle pulley.

all super round and real pulleys have actually holes in part flanges enabling dirt and dirt to go away easier. The 988E has bigger diameter pulleys with additional teeth making the belts operate smoother sufficient basis for less friction.

The belts are low friction kind as standard. The belts are optimised for durability and low friction and generally speaking are 6mm wide
The buttocks construction with aluminium brackets is a very available design, that enables for effortless of upkeep and cleansing. Dis-assembly requires removing just a couple of screws. Replacing a belt if required, is a simple task. The eccentric bearing holders regarding the straight back shaft allow adjustment of gear anxiety. Your whole rear end are eliminated together unit from framework by elimination of just a few screws.
The cable type back anti-roll club is ball raced. It is set up in back bearing obstructs and it is an easy task to change and adjust. The standard cable is 2.5mm and 2 optional thicknesses can be obtained. The pivot ball website link system directs the suspension system movement to your bar and permits easy tweak modification.
The slim solid straight back axle in Serpent springtime metal has a lightweight 9mm wide 48T pulley. The axle has a double slot the driveshaft pin for lightness and stamina. Spring metal, CVD type, drive shafts link a corner shaft to spring steel wheel-axles with aluminium quick-change levers. An extremely durable and resilient drivetrain.
The new right back reduced wishbones have actually actually a hollow style design with shut bottoms for aerodynamics and split top mounted moulded meals. The reduced rear hands keep carefully the link for the back anti-roll bar while the aluminum mounting bowl of a corner shocks. This dish moves the surprise mounting spot toward exterior for improved geometry. Nylon videos are utilized about the lower back pins to change wheelbase.
The right back drifting human anatomy mount which will be set up on the up-rights with 2 hands is centred by a carbon-fibre and steel guider. The mount has 4 jobs on each side available, in accordance with human body shell used and traction available. The threaded holes regarding end connected with body mount provide the substitute for add further body-supports.
Optionals
A big number of optional components can be acquired to improve performance, speed, fat and appears.
www.serpent/com/903017

Communications
- website
- Promopage
- Facebook page
- Viper 988 Facebook individual team
- Serpent Advanced individual Manuals pages
- YouTube video’s
- Online set-up sheets
- help from manufacturers, dealers and team drivers across the world

Merchandising
a good range of tops, sweaters, coats, caps, bags, tools and decals.

Design
Serpent Viper 988E. Developed by Michael Salven.
With great assistance from all team-drivers and 988/977 motorists!
