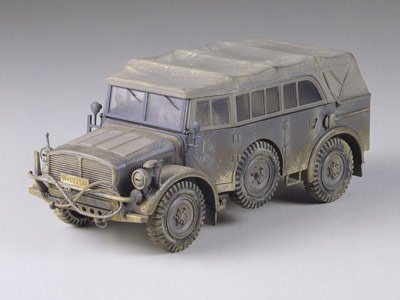

Schwere Einheits PKW A.U. Horch types 1a and 1b
Once the Reichswehr of the 1920's ended up being truly restricted both in dimensions and scope by the regards to the Versailles Treaty, so when the financial status failed to, nevertheless, allow luxurious paying for equipment, all of the transportation requirements regarding the army were met simply by using adapted commercial vehicles. Most favored of all car kinds, because they had been inexpensive and incredibly mobile, were workers providers according to commercial vehicle chassis fitted with an easy open human body of this type known as the Kubelsitzer (literally "bucket-seater"). This type of car, because the name implies, consisted of a bit more compared to the framework and normal front end, as in the normal motor car, with sturdy metal supported seats guaranteed on framework structures. Folding canvas displays took the area of doors, and there clearly was a canvas cover, like in a sports vehicle, become erected in foul weather. Though cross-country performance ended up being limited, the style of the car was one thing of a trend setter and small energy workers carriers have since be common gear in every armies.
To boost on x-country capability, these early "Kubelwagens" had large area tyres, strengthened springs, and reduced axle ratios than their commercial equivalents. Throughout the 1930's, this type of automobile saw ever wider use because of the German army and had been one of its many characteristic and distinctive kinds. These "Kubelwagens" had been used as light gun tractors, staff vehicles, radio cars, command cars, artillery survey vehicles, and alert line levels, plus serving as personnel providers for motorized devices. Studies held in 1930 had established that the car chassis produced by Daimler-Benz, Adler and Wanderer had been the greatest, and these makes predominated operating.
From 1933, when the National Socialist took energy and began overt re-armament of the German forces, there clearly was an expansion on an ever-increasing scale with mechanisation associated with the greatly enlaged military among priority schemes. In those days the different vehicles on adapted commercial framework had been categorised the following: Leichte Personnenkraftwagen (light passenger automobile) approved makeup products to 1500cc engine ability. Mittlerer Personenkraftwagen (moderate passenger automobile) authorized compensate to 3,000cc motor capability. Schwerer Personenkraftwagen (hefty passenger car) approved compensate to 3,000cc motor ability.
The light passenger vehicle kinds had been each given a designation according to their meant function. Thus Kfz (kraftfahrzeug) 1 was the designation for the basic light personnel carrier; Kfz 2 designated a light signals automobile (Kraftkahrzeug car). The medium automobiles had been designated similaryly from Kfz 11 upwards in accordance with function. Inside hefty class just the Kfz 21 heavy cross country personnel provider was produced, as it was the very last type become authorized and bought. It joined solution in 1937 and had been on the basis of the Auto-Union/Horch EFm chassis, staying in production until 1940 (after Austria had been annexed, the Steyr 1500A had been additionally created to this "heavy" requirement, nonetheless additionally designated Kfz 21). The Auto-Union/Horch EFm model had a V-8 80 hp motor and four wheel drive. Due to its length it had three rows of two seats, seating six males in most. Spare wheels had been carried on the medial side panels flanking the initial and second rows of seats. The normal commercial tourer vehicle where the military "kubelwagen" a senior officer's staff vehicle. The Kfz 21 was described in German whilst the "Schwerer gelandegangiger personenkraftwagen (6-sitzer)" hefty x-country passenger car (6 seater). It had the standard sort of open Kubelsitzer human body and a folding canvas top. Overall length was 15 ft 11 inches.
The 'Einheits' Programme
One of the dilemmas presented by the initial policy of purchasing commercially based vehicles ended up being the vast diversity of makes taken to the stock, and the associated maintenance and spares supply problem. Different makes of engine, transmission, chassis, and so forth meant that the stock of spares required was immense. Therefore, after the big armament programme got under method, it absolutely was determined in 1934 to change the product range of commercially based framework with a fresh array of standardised chassis types. It absolutely was meant your three classes of industry automobile, light, medium, and hefty, might have many parts in common, including suspension system units, and that the light and hefty cars might have steerable tires at the front and back, and could have four wheel drive. This became too committed a great, also from the start, the expense and time element involved in developing such a classy group of automobiles had been immense. Only the early automobiles had back wheel steering, which requirement ended up being dropped in 1940 to simplify manufacturing. Auto-Union/Horch were the main builders of the medium and hefty passenger vehicles within the Einheits programme (einheitsfahrgestell: standard motor framework). The Auto Union/Horch Chassis we for hefty passenger cars (schwerer personenkraftwagen)was produced in 1935. Included in the general plan it was intended to use this chassis with a rear mounted engine for armoured cars along with a front mounted motor for passenger cars. The original chassis with steerable wheels front side and straight back was designated I a, additionally the later manufacturing chassis (from 1939-40) had been designated I b. The framework featured four wheel drive. There is a torque converter with a limited differential action to avoid winding up inside transmission. The front axle was driven straight through the primary gearbox, which included a third differential. There were five forward gear ratios, one reverse, and an auxiliary low gear for cross country work. There was a self locking differential regarding the back axle with an ordinary differential at the front, this arrangement ensuring that tires received driving energy no matter what the nature for the landscapes. There was clearly completely independent suspension, each wheel having two radius arms sprung by two coil springs between the energy radius arm and a bracket on framework frmae. Shock absorbers had been included to the suspension system to stop harm on steering hands. The four wheel steering facilty proved to be unsatisfactory ultimately. A corner wheel steering was optional, controlled by a dog clutch operated by a lever from the driving place. Making use of four wheel steering and driving fast, the car was discovered to slew sideways; therefore it was perhaps not popular and after some experience four wheel steering was forbidden completely at speeds over 13 mph. This limitation made the whole facility of such slight value that it was dropeed entirely from 1940 onward manufacturing framework.
Field automobile manufacturing with tis chassis started later in 1938. Externally all Auto-Union/Horch heavy automobiles looked alike aside from real chassis model, nevertheless. By 1940 the chassis was in fact simplified significantly, and also the Berlin Ford factory was additionally by then engaged in manufacturing. Ford built vehicles had a Ford 3.6 litre V-8 78 hp motor in the place of the Horch unit. The late 1940 models lacked recesses in the human body and chassis mounted help hands for free tires. Manufacturing ceased in 1941 towards a brand new scheme beneath the Schell-Programm which sought to rationalise vehicle production completely. In this scheme the heavy car shared the chassis of the 1.5 ton light vehicle. Auto-Union/Horch hefty vehicles stayed in service throughout World War 2, however, and were being among the most typical of German cars on every front. The Auto-Union/Horch regarding hefty passenger automobile chassis was found in a few roles, and although the design regarding the available body adopted the old Kubelsitzer concept, all however the very earliest had the added refinement of metal side doorways in place of canvas part screens. The next had been on the list of types considering this chassis: Fernsprechkraftwagen (Kfz 23) phone Truck. Leichter Scheinwerferkraftwagen We (Kfz 83) Light Searchlight Truck We Leichter Scheinwerferkraftwagen II (Kfz 83) Light Searchlight Truck II Protzkraftwagen (Kfz 59: Limber (or towing) car for Light Guns. Mannschaftskraftwagen (Kfz 81): Light AA Vehicle (some with 2 cm Flak Gun mounted) all above had the available human body but differed in function and, in certain cased, internal stowage and equipment. Furthermore, these were built on the framework: Sanitaetskraftwagen (Kfz 31): Ambulance Verstarkerfraftwagen (Kfz 24): Maintenance Truck Both of these had a shut van kind human body.
