In regards to the U.S. M3A2 Personnel Carrier
The half track first appeared as a regular tool in World War II and offered as the main workers carrier of U.S. and German armoured divisions. It adorned war histroy having its many variations and characteristic designs. As an accompanying car of tank, it revealed its flexibility to the full.
There have been big distinctions the following between your U.S. and German half tracks. Within the U.S. half track, motor energy ended up being sent and to leading axle and steering had been made just through the front tires. Into the German half track, the front tires had no braking system, plus the vehicle controlled the direction of travel by changing the angle of this front wheels or by fractionally idling the sprocket wheel using one part throught the web link in accordance as steering angle ended up being under or over 15 degrees. These distinctions arose since the People in the us initially made their half track by changing the rear wheels of a truck by tracks, while the Germans originally made theirs by adding tires to your front of a full-track automobile in order to make its body longer. The People in america designed their half track as an armoured fighting automobile from the beginning. However, the Germans utilized the very same chassis both for his or her non-armoured car and armoured disadvantage. Even though it revealed desired performance on European roads, its mobility had been much limited within the field, especially in muddy places, because the leading tires weren't driven therefore the motor couldn't offer enough energy.
It absolutely was understood since World War ! that the tractive force of a truck with two back axles would remarkably increase if songs were fastened round its rear wheels. Some nations had carry on their very own efforts to study and develop the half track, rear suspension system the songs being the main object of these research. Under these circumstances, a Citroen-Kegresse half-track car succeeded in running throughout the Sahara Dessert, which renewed their enthusiasm for developing the half track.
In america, the Ordnance Bureau of Department of Army started earnest study and growth of the half track in 1925 when it bought two Citroen-Kegresse cars from France. The P17 half-track tractor purchased from France in 1931 had a really great influence on the American designs and some ideas associated with half track. Initial U.S. military half track had been the T1 experimental half-track reconnaissance car made in December 1932 by Jos. Cunninghams, Son & Co., of Rochester, ny which was then developing the T1 experimental light tank. This new half-track vehicle has an open-top human anatomy and an improved form of Citroen-Kegresse running gear.
By 1937, non-armoured half songs, T1 - T9E1, for reconnaissance, hauling weopons, carrying workers and transporting product were trial-manufactured by Cunningham, Linn, GMC and Marmon-Herrington. We were holding designed to be utilized primarily by mechanised cavalry and artillery. The half tracks T9-T9E1 trial manufactured by Marmon-Herrington were on the basis of the chassis of this Ford 1 1/2 ton 4 x 2 truck of model 1936 and combined front drive with rear-bogie tracks. These half songs had kegresse type bodies of full of faults. In the meanshile, Marmon-Herrington, plus one other manufacturer jointly developed suspension system for plastic songs of one-piece gear type developed by B.F. Goodrich. The suspension system accomplished good results in tests and had been used by the Department of Defense. It later on became the essential suspension system of the M2 and M3 half track series and further the conventional equipment of most U.S. half tracks.
Realizing that the German mobile troops the blitzkrieg techniques in the beginning of World War II mainly contained complete and half-track vehicles, the Us citizens, who currently had the suspension with a high efficiency, started, manufacturing half songs in large amounts. There were outstanding number of American half songs. Their fundamental kinds mass-produced and earnestly used were the following:
Half Track M2: initial production half track officially used by the U.S. Army. In 1939, an experimental car called "T14 Half Track APC" had been made by Diamond T. engine based on the human anatomy of a wheeled armoured car which was vehing employed by armoured cavalry. In September 1940 to 1943, Autocar manufactured 2,992 and White Motor business 8,423, which made a total of 11,415.
Half track M2A1: A modified version of the Half Track M2. On top right associated with the motorist seat, it carried a band mount M45 (categorised as "Pulpit") for a 0.50-inch (12.7 mm) Browning heavy-barrelled device weapon M2. From October 1943 to March 1944, a complete of 1,643 had been manufactured.
Half Track M3: This was meant to carry workers and material of numerous devices in armoured divisions. Autocar and Diamond T. Engine Vehicle Business produced an overall total of 12,499 in parallel with all the Half Track M2. The M3 and M2 were provided to the Allies like the Soviet Union and Britain including to the U.S. Army.
Half Track M3A1: A modified version of the M3. Such as the M2A1, it carried an anti-aircraft ring mount M45 (for a 0.50-inch Browning) in the top right of the motorist chair. From October 1943 to March 1944, a total of 2,862 were manufactured by White, Autocar and Diamond T. like M3, the M3A1 was utilized in World War II by devices in U.S. armoured divisions as an armoured demand automobile, armoured ambulance automobile, armoured radio vehicle, and armoured general purpose car. The M2A1 ended up being also used by British armoured troops. Avariation with a recovery jib on leading was additionally utilized by the British as an armoured data recovery automobile.

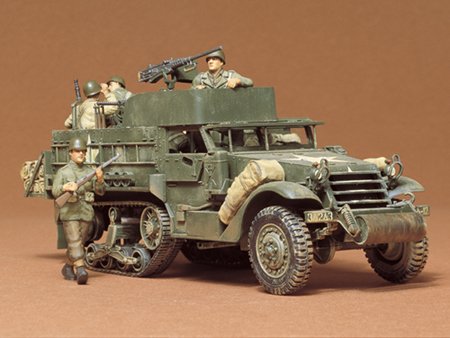

The M3A2: The final production version of the M3. This is an M3-based "general purpose car" intended to be properly used instead of the present M2, M2A1, M3, and M3A1. In July, 1943, a model named "T29" was completed and, in October 1943, accepted for manufacturing once the Half Track M3A2. This was a much polished automobile. From 1944 in, the M3A2 saw active service because the main car of armoured infantry in armoured divisions. The M3A2, like M2 and M3 show, was a light armoured combat car with open-top human anatomy, to which hard-faced armour plates had been welded or bolted. Armour had been 6.25 - 12.7 mm in depth, the nose associated with the automobile being protected with relatively thick metal plate. The M3A2 accommodated 5 - 12 guys i.e. one fully prepared platoon.
The M3A2 carried the typical weapons comprising an anti-aircraft 0.50-inch Browning heavy-barrelled device gun M2, 0.30-inch Browning device weapon M1919A4, 2.36-inch rocket launcher (bazooka) M9 or M9A1, 0.45-inch submachine gun M3, twelve 0.30-inch rifles and twelve Garand rifles. In stowage boxes inside the car, the next ammo was carried: 330 rounds of 0.50-inch machine-gun ammo, 2,000 rounds of 0.30 inches machine-gun ammunition, 6 A/T rockets M6, 24 mines M1, 48 hand grenades and 180 rounds of 0.45 inches machine-gun ammo. When necessary, additional machine-gun ammunition(600 rounds the 0.50-inch Browning and 6,000 rounds for the 0.30 inch Browning) was carried in the place of two seats.
The M3A2, such as the M2 and M3 series, had a White 160 Ax, 4-cycle, series 6-cylinder, watercooled, gasoline motor providing 143 hp/3,000 rpm. Engine power ended up being transmitted through the dry-type single-plate clutch, constant mesh transmission with 4 ahead and 1 reverse rates, 2-speed transfer case and banjo-type rear axle toward sprocket tires. The car utilized all-wheel drive system where the front axle of the split type received power through the transer case if necessary. The vehicle carried 227 litres of fuel and fuel usage ratio had been 1.49 km/l. Optimum cruising range had been 320 kilometer and maximum speed on good road reached 72 km/h.
Front suspension ended up being the same in construction as that of a typical vehicle. Rear suspension had these construction: Two rows of four road wheels - every wheel had a rubber tyre, 305 mm in diameter and 105 mm in width, that has been peculiar to American half tracks - had been connected through links towards the bogie installation eequipped with straight volute springs. The belt-type plastic track had been supported by top rollers near the top of the bogie construction by the idler wheel serving as rear body help. The sprocket wheel involved with guides at the heart of the track to push it.
From might 1941 to 1945, the United States produced as many as 45,044 half songs such as the officially designated variations and experimental variations of self-propelled mortars, self-propelled cannons, self-propelled howitzers, self propelled multi-barrelled firearms, etc. as well as the M2 and M3 series. This total was comprised the following: 37,164 workers providers and 7,880 self-propelled guns. These cars were found in all theatres of war by 16 armoured divisions, separate mechanized cavalry teams, independent armoured teams and some units in infantry divisions.
In the case of the M3A2, 448 cars had been used per armoured division within approximate price as follows: 72 to each of three armoured infantry battalions; 20 to each of three rifle businesses; 11 towards headquarters; 11 to the head office company; and 1 towards service provider. Details of automobile allotment tot he rifle companies inside armoured infantry battalion regarding the armoured unit in 1944 are tabulated as follows:
The rifle squad vehicle accomodated the motorist and nine squad users consisting of just one squad leader, one associate squad leader, five riflemen, one automated rifleman and one ammo provider. The platoons leader's car carried 12 males such as the platoon leader and their sergeant. The mortar squad car accommodated eight males comprising one squad frontrunner, two gunners, two ammo providers, two riflemen and another driver. The anti-tank squad car carried seven males consisting of one squad leader, two gunners, two ammo companies, one riflemen and something driver.
Through the Korean War upon, america gradually replaced their half songs with fulltrack M113 series vehicles. Today, about three decades after the end of World War II, armies of many countries including the Self Defense Forces of Japan remain using half songs as fighting vehicles. We often receive the news these half tracks were operating about in the Mideastern war, Vietnam War and riots in south usa. In america, but these vehicles are only held in museums or by enthusiasts.
