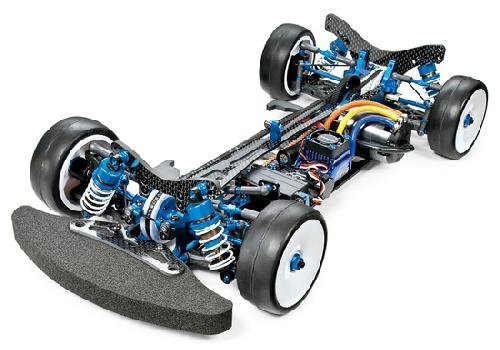

Tamiya 42205 Tamiya 1/10 RC TRF417X Chassis Kit  [42205]

Here is the latest spec TRF 417 device. The primary enhancements mix simple revisions. A newly-designed reduced deck provides enhanced framework flexibility for better low-speed traction. The last one-piece motor mount happens to be changed with a three-piece kind to permit further adjustment of chassis' flexibility by linking them together. The depth associated with the front and rear damper stays have actually been risen to 3.5mm alongside new developments consist of a brand new upper deck, metal battery pack holders which act as counterweights, and low-height kingpins. Front direct coupling and back gear diff device (Item 42197 TRF417 Gear Differential Device II) are included in this latest spec version.

Specs and Features

• Up to date TRF (Tamiya Racing Factory) competition degree touring automobile chassis
• 4WD dual belt drive system
• 4-wheel independent suspension system with carbon strengthened synthetic parts
• Universal drive shafts
• Aluminum 5mm hex hubs for wheel mounting (industry standard size, fits all 24mm Tamiya wheels and most aftermarket brands)
• Camber, castor, toe-IN/OUT, roll-center, anti-dive/anti squat, shock angle, wheel-base, track width are all fully adjustable
• Battery compartment accommodates LiPo and lifetime hard instance battery pack packages
• Carbon dietary fiber top and reduced decks (Newly designed lower deck)
• Machined aluminum (TRF blue anodized) suspension blocks, bulk-heads and engine dish parts
• Full ball bearings (Teflon Sealed)
• Aluminum threaded turnbuckles (TRF blue anodized)
• TRF417 Gear Differential Unit II x 1pc.
• Front direct spool
• Fits 190mm touring vehicle and sports vehicle human body sets (note: Some Tamiya TA-05 IFS low nose human body sets meant for the TA-05 V2 or TA-06 may be too low to fit the TRF417's front end because remain true shock design)
• TRF aluminum threaded dampers with Teflon pistons and cartridge elements
• Includes front side and rear sway bar set
• Brand new piece: Three-piece motor mount enables adjustment of chassis rigidity and new positions of motor accessory holes enable a wider selection of gear ratios to better suit your track or racing course.
• Damper stays have actually damper attachment slots to permit fine environment modification. Increased thickness of 3.5mm provides enhanced damper accessory rigidity for greater damper effectiveness.
• The top of and lower deck have already been reshaped to obtain improved freedom. These are interchangeable with the initial TRF417 upper and reduced decks to adjust framework roll faculties.
• Kit includes COMPLIMENTARY BONUS PARTS (Touring vehicle Damper Spring x 4pcs.) Later 2011 manufacturing just.
