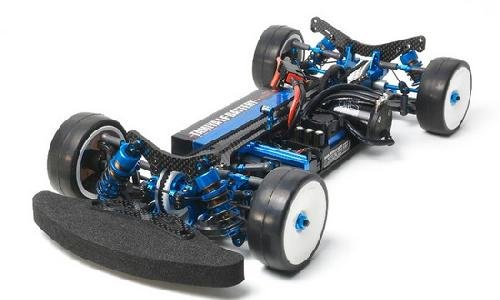

Tamiya 42270 - 1/10 RC TRF418 Chassis Kit  [42270]

• All completely new TRF418 chassis is registered towards the IFMAR World Championships to be held in 2014 field. Machine another main components all test tires and power source of latest. Principal framework area program in minutes, to link the servo mount and suspension hands, stabilizer has also be a new design. Aluminum motor mount as well as bulk modifications, such as weight and front/rear stability. It's a machine which has been developed in for the triumph associated with the battle.
• The all new TRF418 race chassis is the successor to the TRF417 chassis show, that has served TRF magnificently since its 2010 first, securing the elite team many competition victories including a third IFMAR ISTC World Championships consecutively and unprecedented fifth overall. The TRF418 is set to simply take touring car racing to another level with all the 2014 IFMAR world Championship on the horizon! The TRF418 represents 1st complete overhaul that Tamiya's top race framework has undergone in three years. Honed through countless tests utilizing cutting-edge energy sources, tires, and as a result of the feedback of TRF works drivers Marc Rheinard, Viktor Wilck and undoubtedly reigning World Champion Jilles Groskamp, the framework boasts an almost 100% new design. Tamiya is constantly pushing the restrictions of R/C racing technology in an endeavor to keep prior to the pack and secure the TRF team's sixth name, and TRF418 promises become another success story.
• Front and rear lower bulkheads feature identical design, while top arms have an optimal accessory angle.
• Center bulkhead is split from top deck, optimizing framework roll faculties.
• Features redesigned front/rear suspension hands with accessory points in specialized racing roles only.
• a weight reduction of 2g happens to be accomplished with a lighter direct coupling.
• Newly-designed stabilizers are now actually connected using ball connectors.
• Brand new steering arms provide a more linear steering feel.
• Includes a 20T pinion gear for a secondary gear decrease ratio of 1.85 (minimizing speed loss when throttle is disengaged.)
• The united states release of the TRF418 will include the next bonus components. These bonus components is only going to be around in kits during the initial launch date of December 2013. Kits produced following the December date will not are the bonus components.
• Damper Springs - soft & hard, 2pcs. each
• Soft Stabilizer Rods- front & back, 1pc. each
• 1 additional set of Suspension Arms - sufficient to kit out the chassis
• 1 additional pair of Front Uprights - sufficient to kit out the framework
• 1 additional set of Rear Uprights - sufficient to kit out the framework

Specs and qualities:

• Scale : 1/10
• Construction type : assembly kit
• Terrain use : on-road
• Drive-train : 4WD
• Drive kind : gear
• Drive line : universal
• Differential type : sealed oil filled gear and Spool
• Suspension : completely independent dual wishbone
• Steering apparatus : bell-crank
• Shock damper : oil-filled damper
• Shock damper product : aluminum
• Tire type : maybe not included
• Tire tread : n/a
• Body product : perhaps not included
• Chassis material : carbon fibre dish
• Electronic Speed Control (ESC) : not included
• ESC model : n/a
• LED Light buckets : no
• Light-emitting Diode lights : no
• Motor : not included
• Bearings : sealed ball bearing
• Adjustable camber : yes
• Adjustable toe angles : front side and rear
• Adjustable ground approval : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : yes
• Adjustable track width : yes
• Adjustable surprise angle : yes
• Unique feature 1 : New finish redesign from TRF417 series.
• Special feature 2 : Front and rear lower bulkheads function identical design, while upper hands have an optimal accessory angle.
• Special function 3 : Center bulkhead is split from top deck, optimizing chassis roll faculties.
• Unique function 4 : qualities redesigned front/rear suspension hands with accessory points in specific racing roles only.
• Unique feature 5 : a weight-loss of 2g happens to be achieved with lighter direct coupling.
• Special feature 6 : Newly-designed stabilizers are now actually connected utilizing ball connectors.
• Unique feature 7 : brand new steering hands provide an even more linear steering feel.
• Unique feature 8 : Includes a 20T pinion gear for a additional gear reduction ratio of 1.85 (Minimizes speed loss when off throttle)
• Requires A : 7.2 battery pack & charger
• Needs B : 2-channel radio gear
• Requires C : tires, tires, human body set, motor, esc
• Needs D : polycarbonate paint
