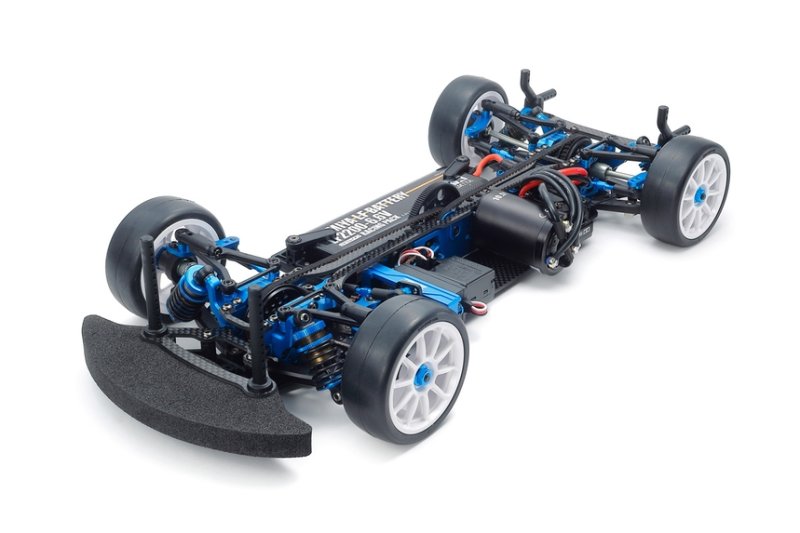

Tamiya 42384 - TRF421 Chassis Kit [42384]

Price:

AUD$1,037.71

Brand:

Tamiya

Model:

42384

GTIN:

4950344423842

Condition:

Brand New

Quantity:

Available in warehouse

Write a review

alt="Tamiya 42384 - TRF421 Chassis Kit" title="Tamiya 42384 - TRF421 Chassis Kit"

Description

Tamiya’s TRF R/C developers don't ever sleep. They are typically constantly wanting to bring our many hardcore R/C rushing fans the very best features capable be squeezed into a 1/10 scale touring vehicle framework! After two . 5 many years of development, we have now ensure you get the ALL-NEW TRF 421. The greatest end touring vehicle chassis series we create has gotten another suspension system and layout makeover!

New features:
This 2-belt driven 4WD carbon dietary fiber double-deck design is full of completely new features such as an updated drivetrain, a new reduced deck kind, front and back top A arms, and brand new shorter dampers, that vow to result in serious price on course! Other notable features include a choice between one- and two-piece upper deck designs for various chassis flex faculties, plus updated suspension system geometry that keeps the framework more stable.

Key Features:
The Drivetrain employs a front direct coupling and back oil-filled gear diff. Equal size front and rear drive belts minmise pitch.

suspension system system arms are a rigid "A" design with 7mm longer period set alongside the TRF420X for stable roll, while top supply mounts could possibly be slid to modify camber.
Three damper pivot jobs can be obtained.

Dampers are 5.5mm paid off than regarding TRF420X, for a lighter framework and lower center of gravity. Attach them directly to aluminum mounts and fine-tune with spacers.

• 1/10 scale R/C framework installation kit.
• The drivetrain features the motor place moved 22.7mm toward the framework center compared to the TRF420X Chassis Kit and has now now identical size front and back drive belts for stable drivability.
• With updated setup of spur gear and drive belts, just one specialized nut must attach spur gear, which improves effectiveness of maintenance.
• the modern reduced deck is smaller compared to the one placed on the TRF420X Chassis Kit to restrict ground clearance once the framework experiences roll.
• choose from two types (one-piece and two-piece) of top deck. Changing screw functions allows five setup habits completely.
• A-shaped suspension arms are employed for greater rigidity. (The 420X framework kit makes use of I-shaped suspension arms.) Longer paid down supply spans restrict swing width and ensure security once the framework experiences roll.
• along with longer reduced supply spans, front side and straight back suspension system setups are changed from suspension system blocks to suspension system balls. Approximately 7mm-longer supply spans restrict move width and ensure security whenever chassis experiences roll.
• Toe angle could be modified by uprights. (The toe angle of paid off supply inside is 0 levels.)
• Three accessory damper positions (internal, middle, and external) on front and rear reduced fingers can be seen by two kinds of aluminum bushings.
• Changing jobs of top supply mounts by screws allows adjustments to front and straight back caster perspectives, that is appropriate current high-downforce events. Front caster available views: 3, 4, and 5 levels. Back caster available perspectives: -.5, -1.5, and -2.5 amounts.
• Dampers are faster by 5.5mm compared to the 420X framework kit, which provides a really low center of gravity and reduces the additional fat, for a far more effective driving experience.
• particular damper ends are employed front and back once again to guarantee exactly the same piston degree.
• groundbreaking damper oil seals (product 51738) are used to keep consitently the maximum oil volume and also to make the most of oil dampers effortlessly.
• Even though the 420X chassis kit employs carbon fiber damper remains, this framework kit employs aluminum mounts for precise angle corrections in line with the wide range of spacers utilized.
• Front and rear differential pullies are newly molded while direct coupling and oil-filled gear differential are utilized at front side and rear, correspondingly. (The currently sold Hop-Up option and free Parts can be utilized.)
• the best features dual cardan joint shafts while back employs lightweight universal drive shafts. Brand new axle shafts (Item 42388) and 45mm drive shafts (item 42387) may useful for both front and back into ensure efficient drivetrain and upkeep.
• Newly designed lightweight right back wheel axles enhance durability.
• Precision stabilizers are attached at an inferior position than drive shafts for efficient upkeep of drivetrain. Includes 1.0mm diameter (x1), 1.1mm diameter (x2) and 1.2mm diameter (x1).
• The steering system pairs twice steering arms and Ackerman bush with a brand new steering connection. Three kinds of fresh spacers featuring different diameters enable steering angle modification.
• Includes Sealed Ball Bearings from TRF show for efficient rotation and Item 22078 Aluminum Differential Holders (0.8mm Offset, 2pcs.).
• The newly molded quick-plate design battery owner wont need tape for accessory. With respect to the battery pack prepared, alter jobs of spacers and articles. Shorty pack appropriate.
• comes with a carrying situation focused on the TRF421 framework kit.
• had a need to finish: 2-channel radio, low-profile steering servo, ESC, 540 engine, tires and tires, 190mm TC or low rider human body, 7.4volt battery power and suitable charger.

Specification:

Adjustable Gear Ratio : Yes
Bearings : Includes complete ball bearings
Chassis Material : Carbon Fiber Weave
Chassis Type : TRF421
Construction sort : set up Kit
Differential Type : Front-Direct Coupler SPOOL, Rear-Oil-Filled gear
Drive Type : 4WD
Electronic Speed Control (esc) : available Separately
engine : Sold Separately
Required To Complete : 2-channel radio, low-profile steering servo, ESC, 540-racing motor, wheels/tires, 190mm 1/10 body, 7.4volt battery power & suitable battery pack charger
Scale : 1/10
Shock Damper : Oil-filled damper
Suspension : completely Independent Double Wishbone
Terrain Use : On-Road
