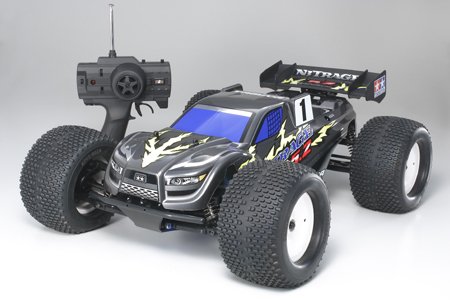

Presenting Tamiya's brand new 1/8 R/C Truggy, the Nitrage. This high-performance Ready-To-Run model is filled with revolutionary features that no other machine in its class has. Modular construction means effortless construction and convenient upkeep, with all the current internal components installed on a high-strength, press-molded aluminum deck. Servos are directly connected towards fully-enclosed gearboxes to make sure consistently smooth procedure and minimal interference. 4-wheel independent suspension with large oil dampers, aluminum slipper clutch, and high-density surge tires attached to large dish wheels allows it tackle any surface effortlessly. The aggressive human anatomy and distinctive back wing matches the "Nitro Rage" image perfectly and will allow it to be the moment focus anywhere it goes.
ENERGY AT YOUR FINGERTIPS
| The Nitrage comes with the solid FR-32FX 5.2cc (.32 cubic inches) motor that features a large diameter fall carburetor, 14mm diameter crank shaft, lightweight piston, and big heat sink head. The FR-32FX is matched with a 150cc big ability gas tank to provide ample driving endurance. Running on our monster engine, the Nitrage with standard 1-speed transmission is capable of rates all the way to 60km/hr (approx. 37mph)! |
| Engine Specs: 5.24cc displacement(.32 cubic inches), 20.1mm bore, 16.5mm stroke, 5000-33000rpm range, rear exhaust |
MODULAR CONSTRUCTION
Off road race can indicate dust and grime acquiring regarding the automobile and interfering with maintenance, to state nothing of all of the work you have to do to wash up afterwards. Our designers took this under consideration when making the Nitrage and separated the vehicle into 5 major elements: Front Gearbox (with steering servo and front suspension), Center Gearbox (with throttle servo and disc brake), Mechanics Box (with fail safe equipped receiver), Engine with Fuel Tank, and Rear Gearbox (with back suspension system and wing). All these are separately taken from the framework for easy maintenance and cleansing. All 5 components rest on a special high-strength aluminum deck, a pioneering feature because of this class, that was press-molded to make sure structural rigidity.
each GEARS FULLY ENCLOSED
Tamiya could be the first to create this unique feature toward R/C globe. Even the connection between the engine clutch bell together with spur gear are totally enclosed and protected from outside disturbance. Consequently, all gears have actually constant stable lubrication and gear backlash is included by the gearcase. What this means is the Nitrage does not need to turn to making use of any heavy and expensive metal gear parts, offering fans more modification freedom.
In addition, the differential gear regarding the Nitrage is doubly protected, very first by its durable case after which by an extra enclosure formed around it by leading and back gearboxes. This setup insulates the differential gear to stop the suspension system hands and surprise towers from imparting stress onto it (this is the problem with most makers' truggy differential gears).
EFFECTIVE POWER TRANSMISSION
The Nitrage has the R/C world's very first flexible joint drive system, because of the spur gear having a brief dog bone linkage to the clutch bell, which helps reduce stress on the motor. A durable lightweight aluminum slipper clutch to boost transmission efficiency can also be included, which is another very first inside course.
WIDE-SPAN FRONT SUSPENSION UPPER ARM
Truggies off their manufacturers usually feature top I arms the front suspension system, that offer flexibility but miss in structural energy. The Nitrage has specially created upper the arms for the front suspension that enable versatile suspension travel without having to sacrifice power.
WHEELS & TIRES
Colossal off-road tires with inner sponge feature an oval spike tread pattern which perfect for driving on rough areas. Tires are mounted on large diameter meal wheels.
DISTINCTIVE BACK WING
The large rear wing on Nitrage is a double-split design motivated by those prepared on actual WRC cars. Catch pin accessory means top of the area of wing continues to be flat, contributing to its stylish look. Because the wing is linked to your framework and never the body shell, it demonstrably distinguishes the Nitrage as a Tamiya product even though the human body is removed.
FOR ADDED CONVENIENCE AND INSTANT ACTION
The Nitrage features universal screw heads for many of its screws, this means all you need is the 2.5mm Hex Wrench to install and remove them, making maintenance more speedy (Note that there may be a couple of screws that need a 1.5mm or 2mm Hex Wrench). Tamiya Handy Starter and Glow Plug Heater are included for simple engine starts even for novices (Handy Starter calls for 7.2V battery power, offered separately). ADSPEC GP 2-channel transmitter and TRU-03 receiver with fail safe device are included.
OPTION PARTS AVAILABLE SOON!
Both performance-enhancing and cosmetic choice components are in the pipeline for release into the close future. Look particularly for announcements regarding the 2-speed transmission that'll increase top rate to 80km/hr (approx. 50mph) and effective twin disc brakes.
MAKE NO MISTAKE
Whilst the Nitrage stocks similar 5.2cc motor and wheels/tires using the TNX 5.2R, they are just aesthetic similarities. This will be a brand new chassis with a unique design that has been created especially for off-road race. Its reduced ride-height means less center-of-gravity, offering the Nitrage superb cornering performance. Take a look at the picture above to see the difference yourself (TNX 5.2R in the left, Nitrage 5.2 regarding right).
In regards to the Model
- 1/8 Ready-To-Run R/C Glow Motor Truggy
- Lightweight and compact TRU-03 Receiver features failsafe function to stop runaway driving brought on by radio interference or low electric batteries.
- Includes outside electric Tamiya Handy Starter with drive gear product and plug heater.
- Wheel/trigger type transmitter included.
- Features newly developed high-density, oval spike tires and dish tires.
- Ball pivot type 4 wheel dual wishbone suspension system features 4 big ability oil dampers.
- Effective 5.2cc (.32 cubic inch) FR-32FX engine with slide valve carburetor.
- bearings used to ensure smooth and efficient motion.
- Strengthened steel drive shafts.
- AA & C Batteries, motor fuel are separately necessary to run truck.
- Tune-up vehicle with Tamiya Option Parts.
SEPARATELY REQUIRED ITEMS
- 7.2V Ni-Cd battery pack and battery pack charger for Handy Starter.
- 12 LR6/AA/UM3 alkaline batteries for transmitter and receiver
- 1 LR14/C/UM2 alkaline battery for radiance plug heater
- Glow Engine Fuel and Fuel Filler
