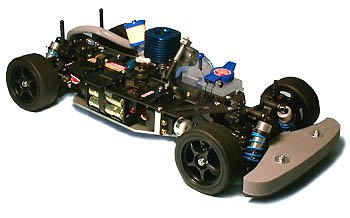

Tamiya 44020 - 1/10 GP TG10-Mk.1 Chassis Kit - Pro Racing w/o Engine  [44020]

This value loaded kit is ideally suited to severe racers. The kit uses the TG10 framework as a base, and adds ball bearings, super low friction dampers, a lightweight flywheel, a carbon top deck, a unique reduced deck and lots of other competitive features. Adopts shaft drive 4WD system for winning control

• Adopts shaft drive 4WD system for winning control
• Lightweight and durable framework consist of 3mm thick perforated duralumin reduced deck and 2mm thick carbon upper deck.
• Full bearings and universal shaft enable highly efficient operating.
• 4-wheel double wishbone suspension features shock absorbing low friction dampers and stabilizer for steady cornering.
• Aluminum engine mount cools motor and heightens accessory durability.
• Lightweight flywheel provides rise to sharp acceleration.

Items Sold Separately

• 1/10 human body for any type of 4WD Touring automobile (excluding people that have short wheel bases).
• 2-channel R/C system for motor cars & batteries.
• Tamiya FS-12LT Motor
• TG Gas and Tamiya Rev Top Fuel
• "Power Champ HP" 1.5V Alkaline booster battery, plug cable/clip, and fuel filler.

• Chassis Type: TG10-Mk.1 PRO
• Scale: 1/10
• General Length: 435mm
• Overall Width: 194mm
• General Height: 122mm
• Minimal Clearance: 14mm
• Body weight completely Equipped: 1548g (excluding gas)
• Wheelbase: 257mm
• Tread (F/R): 155mm/164mm
• Chassis Material: 3.0t duralumin +carbon fiber
• Chassis Type: dual deck
• Steering Tie-Rod: three components
• Suspension F/R: dual wishbone
• Caster Angle: F/R: 10/0� Camber angle: adjustable
• Toe angle F/R: adjustable/2�
• Dampers F/R: super low friction dampers
• Drive System: shaft drive regular 4WD
• Gear Ratio: 8.1:1
• Diff. Gear System F/R: bevel diff
• Brake: disk
• Tire Width/Diam F/R: 27/65
• Tread Pattern: F/R rushing slicks
• Tire Material: artificial plastic

Specs

• Chassis Type: TG10-Mk.1 PRO
• Scale: 1/10
• Overall Length: 435mm
• General Width: 194mm
• Overall Height: 122mm
• Minimum Clearance: 14mm
• Body weight Fully Equipped: 1548g (excluding gas)
• Wheelbase: 257mm
• Tread (F/R): 155mm/164mm
• Chassis Material: 3.0t duralumin +carbon fiber
• Chassis Type: double deck
• Steering Tie-Rod: three components
• Suspension F/R: double wishbone
• Caster Angle: F/R: 10/0� Camber angle: adjustable
• Toe angle F/R: adjustable/2�
• Dampers F/R: super low friction dampers
• Drive System: shaft drive full time 4WD
• Gear Ratio: 8.1:1
• Diff. Gear System F/R: bevel diff
• Brake: disk
• Tire Width/Diam F/R: 27/65
• Tread Pattern: F/R rushing slicks
• Tire Material: artificial rubber

Option Components Included

• TG10 Rushing Chassis
• TG10 Carbon Upper Deck Set
• TA03 Super Minimal Friction Dampers (Silver)
• TG10 Urethane Bumper
• TG10 Stabilizer Set
• Skyline GT-R Universal Shaft Set
• Aluminum Engine Mount for TGX
• Lightweight Flywheel
• TR15T High Quality Brake Disk
• High Torque Servo Saver Set
• Aluminum 5mm Ball Connector
