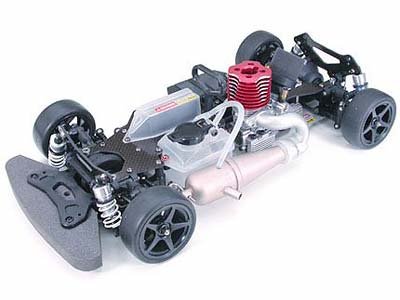

Tamiya 44032 - 1/10 TG10R Chassis Kit  [44032]

About the TG10R

The glow-engine (TG10) battle scene happens to be faster and hotter than previously aided by the brand new battle version of the radiance motor framework, the TG10R. Designed for racing, this framework employs a 2.5mm dense, hardened carbon double-deck framework. The framework additionally packs 4-wheel dual wishbone suspension system and high-efficiency TRF dampers and stabilizers. 2.5mm thick carbon damper stay is fine-tuned and is highly responsive. This 198mm wide framework assumes on high-speed cornering with remarkable stability. The TG10R framework employs equivalent 6mm diameter axles utilized in the 1/8 Scale R/C Glow Engine Car TGR framework and brings along with it the same power. Responding to expert motorist demand, this framework comes completely packed with specifications essential for rushing regarding side!

Essential Rushing Features

• Complete ball bearings
• Carbon-built upper deck
• Front/Rear carbon damper stay 2-speed objective
• High-grade braking system disk TRF
• Damper Front universal shaft
• Front/Rear stabilizers Medium-narrow tire, kind A

Fundamental Specifications

• General length: 376mm
• Overall width: 198mm
• Total height: 100mm (not including body mounts)
• Clearance: approx. 7mm (adjustable)
• Body weight completely equipped: 1,580g (unfueled with 4 R6/AAUM3 batteries, Novarossi motor and TM2 Muffler)
• Wheelbase: 260mm
• Tread F/R: both 174mm
• Chassis product: 2.5mm Duralumin +2.0mm Carbon Fiber
• Chassis shape: double deck framework
• Steering tie rod: 3 component
• Suspension system: front and rear double wishbone
• Caster angle-F/R: 8deg/0deg
• Camber angle-F/R: adjustable
• Toe angle-F/R: adjustable/1.5deg
• Damper: F/R TA04R super low-friction
• Transmission type: Shaft drive full-time 4WD
• Gear ratio: 8.1:1-6.4:1 (7.5:1-5.6:1)
• Diff. gear system: F/R 3-bevel diff
• Gas tank ability: 75cc
• Brake: disk type
• Tire width: F/R both 24mm
• Tire diameter: F/R both 64mm
• Tread pattern: F/R slicks
