Tamiya 45028 - ESC TEU-302BK Speed Controller TEU-302BK  [45028]

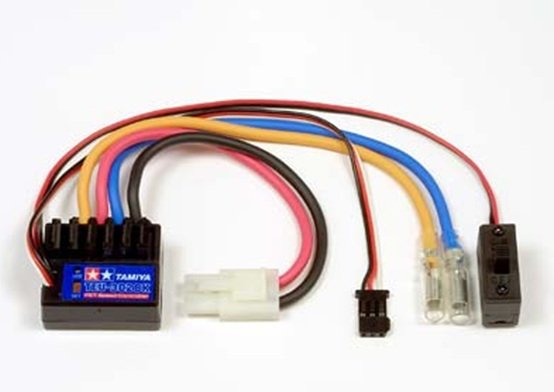

FET Speed Controller TEU-302BK

A tight forward/reverse operating electronic rate controller (ESC) featuring a high frequency wave drive system. Three forms of current movement adjuster, modification of optimum ahead and reverse throttle trigger settings, and reverse termination can be managed via transmitter and ESC procedure.

Tamiya R/C System No.28 (ITEM 45028)

Suitable for right down to 23 turn stock engines. Transmitters from other manufacturers can also

Here is the Tamiya Forward and Reverse Electronic Speed Control.

FEATURES:

• appropriate for stock engines down seriously to 23 turns
• Current adjustment enables driver available three adjustment speeds including mild setting for slippery conditions and fast environment for high grip songs
• Reverse is converted to stopping function
• Three security functions:
• Paid off voltage reduction security circuit prevents lack of control
• Temperature security function
• Overcurrent security function
• Receiver connector compatible with Tamiya, Futaba KO, JR, and Airtronics/Sanwa (blue)

INCLUDES:

One Tamiya Forward and Reverse Electronic Speed Control with Kyosho design battery pack connector, pre-installed motor leads, universal receiver connector, and instruction manual

REQUIRES: Installing in model and linking to motor and receiver

SPECS:

• Length: 1.3" (33.5mm)
• Width: 1.1" (27.2mm)
• Height: 0.6" (14.3mm)
• Weight: 1.7oz (48g) with wires
• Fat 1.5oz (43g) body just
• Control System: tall frequency wave drive
• Max Continuous active: (FET spec) ahead 120A, Reverse 60A
• Power Supply: 7.2V - 8.4V (6-7 cells)
• Appropriate engine: R/C car motor over 23 turns
• Driving Frequency: 500Hz, 1kHz, 2kHz (with three steps)
• Receiver production Voltage: 6V (input 7.2V)
• Receiver Production Present: 1A
