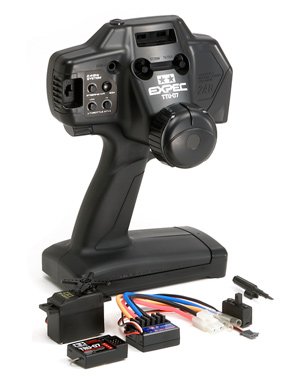

Tamiya 45046 - EXPEC GT-I 2.4G Radio Control System (Basic Set + ESC)  [45046]

No Frequency Crystals Required

This 3-channel radio control system makes use of a 2.4GHz regularity hopping system which eliminates the need for frequency crystals. Created by world-famous German industrial designer Hans A. Muth, the wheel/trigger kind transmitter has a unique, ergonomic kind. The ideally put steering wheel and trigger offer a user-friendly layout. This set includes a TEU-302BK ESC. Just four R6/AA/UM3 batteries (sold separately) are required the transmitter, rendering it lighter and much more energy efficient.

User friendly Design

The ideally placed tyre and trigger, situated servo reverse switch and throttle/steering trim dials; and convenient power switch, 3-channel key, and Throttle ATV/Steering Dual Rate trim dial jobs combine to supply a user-friendly design. Transmitter and receiver are factory paired and no setup is required.

Specifications

Transmitter:

• TRU-07,
• Frequency number: 2.4GHz,
• Power: 6V (R6/AA/UM3 Battery x4),
• Current Consumption: Significantly Less Than 100mA,
• Antenna: Built-In

Receiver:

• TRU-07,
• Frequency Range: 2.4GHz,
• Power Supply: 4.8~6V,
• Proportions: 26×39×10mm (excluding protrusions),
• Weight: 8g

Servo:

• TP-S3003
• Power Supply: 4.8~6V (tell receiver),
• Present Consumption: 8mA (using 6V battery),
• Output Torque: 4.1kg-cm (using 6V battery pack),
• Running Speed: 0.19sec/60° (using 6V battery pack),
• Dimensions: 40.4×19.8×36mm,
• Weight: 37.2g

ESC:

• TEU-302KB
• Control System: Tall Frequency Wave Drive System,
• Max. Constant Current (FET Spec): Ahead 120A,
• Reverse 60A,
• Power: 7.2~8.4V,
• Compatible Motor: Electric Motor for R/C vehicles (over 23 turns),
• Drive Frequency: 500Hz, 1kHz, 2kHz (with 3 steps),
• Production Voltage for Receiver: 6V (Input 7.2V),
• Measurements: 33.5×27.2×14.3mm (excluding protrusions),
• Weight: 48g (body 43g)

About Hans A. Muth

A German commercial designer. After working at Ford of European countries and BMW as an automotive stylist, he became a freelance designer and gained attention for his design for the Suzuki Katana bike in 1980s. He was a part of item development tasks as a design consultant for numerous companies around the planet. His work has covered a wide variety of fields which range from automotive and aerospace design to electronic devices.
