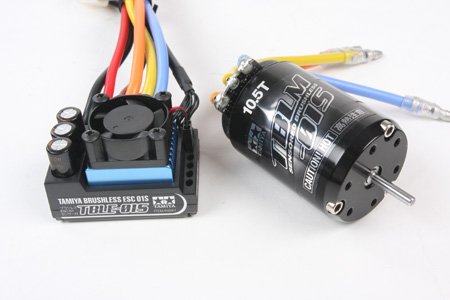

Tamiya 45048 - RC Tamiya Brushless Motor 01 - 10.5T/Brushless ESC01 Sensored [45048]

Price:

AUD$286.06

Brand:

Tamiya

Model:

45048

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Motor / ESC / Cooling Fan - Combo Set category

Write a review

Description

Sensored brushless motors provide smooth procedure at both low and high speeds. The sensor's positional feedback is combined with ESC's RPM data to provide a top level of control. Brushless design produces long engine life and paid off maintenance hassle.

*Not compatible with trucks, CR-01 and twin-motor framework machines.

*To enhance performance plus the life of motor, frequently lubricate engine bearings with Item 53508 or 53782.

12T Specification

KV: 3050KV (KV denotes RPM per volt), body weight: 200g, Input Voltage: 6.6-7.2V.

About the Sensored Brushless ESC

This ESC is particularly made for usage using the TBLM-01S series of Tamiya Brushless Motors (Sensored). Along with 5 preset pages,settings such as brake, basic braking system, and dead band can be adjusted individually. It also features 3 protection systems including overheating, overloading, and low voltage.

ESC Requirements

Compatible with Tamiya, KO, Futaba, JR, and SANWA receivers.
Features Forward, Reverse, and Brake functions. *Reverse function may be terminated.
ESC additionally features Overheat, Overload, and minimal Voltage security systems-Compatible with Tamiya TBLM-01S Series engines. *Only to be used with sensored brushless motors.
Max. Continuous Current: 100A, Receiver Voltage: 5V, Receiver Active: 3A, Drive Frequency: 16KHz.
Measurements: 47x35.5x31mm, Body weight: 90g (Including cables).
