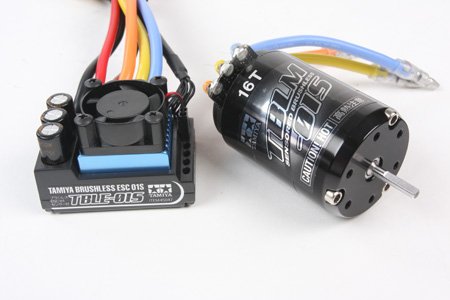

Tamiya 45049 - RC Tamiya Brushless Motor 01 - 16T Brushless ESC01 Sensored  [45049]

About Sensored Brushless Motors

Sensored brushless engines offer smooth procedure at both low and high rates. The sensor's positional feedback is with the ESC's RPM data to provide a top level of control. Brushless design makes for long motor life and reduced maintenance hassle.

*Not suitable for vehicles, CR-01 and twin-motor chassis machines.

*To enhance performance together with life regarding the motor, frequently lubricate motor bearings with Item 53508 or 53782.

18T Specification

KV: 2100KV (KV denotes RPM per volt), body weight: 200g, Input Voltage: 6.6-7.2V.

Concerning the Sensored Brushless ESC

This ESC is very made for use with the TBLM-01S number of Tamiya Brushless Motors (Sensored). Along with 5 preset profiles,settings such as braking system, basic braking system, and deadband is adjusted separately. It also features 3 security systems including overheating, overloading, and low voltage.

ESC Specification

• Suitable for Tamiya, KO, Futaba, JR, and SANWA receivers.
• Features Ahead, Reverse, and Brake functions. *Reverse function may be terminated.
• ESC also features Overheat, Overload, and minimal Voltage security systems-Compatible with Tamiya TBLM-01S Series motors. *Only for use with sensored brushless engines.
• Max. Continuous Current: 100A, Receiver Voltage: 5V, Receiver Active: 3A, Drive Frequency: 16KHz.
• Proportions: 47x35.5x31mm, Body weight: 90g (Including cables).
