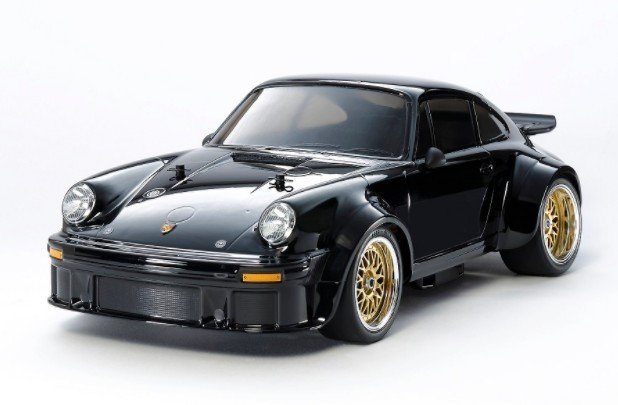

Tamiya 47362 - 1/10 Porsche 934 Black (TA02SW chassis)  [47362]

Tamiya 47362 - 1/10 Porsche 934 Black (TA02SW chassis)
Price:
AUD$351.53
Brand:
Tamiya
Model:
47362
GTIN:
4950344473625
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category
Write a review
alt="Tamiya 47362 - 1/10 Porsche 934 Black (TA02SW chassis)" title="Tamiya 47362 - 1/10 Porsche 934 Black (TA02SW chassis)"
alt="Tamiya 47362 - 1/10 Porsche 934 Black (TA02SW chassis)" title="Tamiya 47362 - 1/10 Porsche 934 Black (TA02SW chassis)"

Influenced by a Legend

The Porsche 934 dominated its racing course inside late 1970s, and holds a special devote Tamiya history while the topic of our very first R/C model kit. In belated 1977, we then circulated a restricted version in black colored. This R/C model set up kit is influenced by that bit of Tamiya history. The accurate clear polycarbonate human body has recreations associated with distinctive flared front/rear fenders and big front spoiler. Back wing, motor hood and part mirrors are recreated utilizing separate components, while metal plated light instances and LEDs provide a realistic lit-up model.

Quick Wheelbase, open Tread, optimum Fun!

The TA02SW framework provides shaft-driven 4WD, while offering a quick (236mm) wheelbase and wide tread setup into the conventional Porsche style. It is based around an FRP double deck framework, with 4-wheel double wishbone suspension using CVA oil dampers. Enclosed front and back gear cases have actually integral diff gears, with a ball differential inside back. Includes 2-piece wheels, tires, and internal sponges - the trunk uses wide types. Further hi-spec components are included, particularly FRP damper stays, universal shafts, difficult propeller shaft, aluminum motor mount and full ball bearings - a souped-up drive awaits!


Specifications

  • Length: 435mm, Width: 202mm, Height: 130mm
  • Wheelbase: 236mm
  • Tread (Front/Rear): 162mm/168mm
  • Tire Width/Diameter: 26/65mm (front side), 32/65mm (back)
  • FRP Double-Deck Frame
  • Transverse engine & Shaft-Driven 4WD
  • 3-Bevel Differential (Front), Ball Differential (Rear)
  • 3-Piece Steering Tie-Rod
  • 4-Wheel Independent Double Wishbone Suspension
  • CVA Oil Shocks
  • Gear Ratio = 8.59:1
  • Type 540 Motor
  • needs electronic rate controller (sold separately)

  •

    Separately needed products

  • 2-Channel R/C product with ESC
  • battery power & Charger
  • R6/AA/UM3 batteries for transmitter
