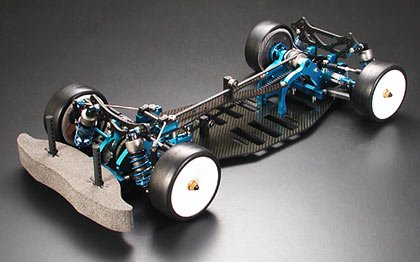

Tamiya 49225 - 1/10 R/C TRF414M CHASSIS KIT / Limited Rel  [49225]

About 1/10 Electric R/C TRF414 Chassis Kit/Limited Release Item

Dedicated to success in touring automobile race, the Tamiya Racing Factory (TRF) experimentally released final summer Tamiya's very first pure race chassis, the model TRF414X (restricted to the U.S. as a test project). It showcased a mid-ship motor, belt drive 4WD, carbon graphite double-deck chassis, double wishbone suspension system, and many different other race-oriented elements. Considering that the TRF414X was unlike other past Tamiya framework, different slight customizations on chassis geometry had to be made. The TRF414X ended up being tested and re-tested at every stage of development, fundamentally causing impressive competition leads to both Japan and the United States. Using performance information and observation of the races, TRF further honed this already superb framework. Now, Tamiya is proud to present its best pure race framework up to now, the TRF414. Some regarding the primary improvements within the TRF414X consist of: modified suspension system geometry for reduced center of gravity; resin suspension hands, uprights, and knuckle hands for weight cost savings (formerly aluminum); resin components made from stronger product; front side and center dual one-way drive for more efficient cornering; newly designed anodized setting wheel; TRF logo and serial quantity plate for restricted release official certification; kit also includes 1g of advanced anti-wear oil. The TRF414 chassis kit promises a bright new millennium of touring car victories for Tamiya therefore the TRF.

After several months of experimentation on TRF414 framework kit and a considerable quantity of race involvement, the TRF designers are proud to bring away a greater form of the framework, the TRF414M chassis kit. The improvements concentrated primarily on heightening the efficiency associated with the drive train and increasing the cornering rate. The TRF414M Chassis Kit is sure to give competitive RC racers just what they have to win on today's track.

Specs:

• Wheelbase: 260mm (variable), overall width: 189mm (varies based on tires used), framework weight: 780g.
• Suspension geometry optimized predicated on race feedback of TRF414 framework. Using suspension system supply spacer, tires is adjusted within 5mm range for precise settings.
• Aluminum bulkheads sit low for a standard low center of gravity. Motor plate additionally helps with temperature dispersion.
• Front and center pulleys follow one-way drive train. Back adopts ball diff. type part-time 4WD system.
• Newly designed suspension system mount and carbon surprise tower lowers roll center for smooth and stable cornering.
• 4 level caster angle on front side hub carrier sharpens steering reaction. Torque-rods reliably maintain angle.
• Toe-in angle from 2-2.5 levels can be plumped for by adjusting back suspension system block and rear upright.
• Front one-way and rear ball diff. are compatible with TA04.
• SOREX medium narrow tires and especially created dish wheels are included.
• TRF Suspension Dampers (x4) included.
• Three kinds of front side and rear stabilizers included.
• 112T, 120T, and 128T 04 module gears included. Pinion gear of 40T included.
• Includes unique stickers for TRF414M
• TRF414M might not be found in Tamiya Grand Prix

  Separately required items:

• span>RC System
• Adspec GT-I or 2-channel RC system with electronic speed control
• Wheels, Tires (free): Offset 0mm, medium slim size
• Motor: Any 540-type engine
• Battery: Tamiya 7.2V Racing Pack or equivalent. Separate-type batteries doubles.
• Body: Any body with wheelbase over 257mm and general width over 190mm. Bodies of the same class as Tamiya's "Ferrari 360 Modena Challenge" will fit. Some modification to human anatomy mount holes may be needed.
