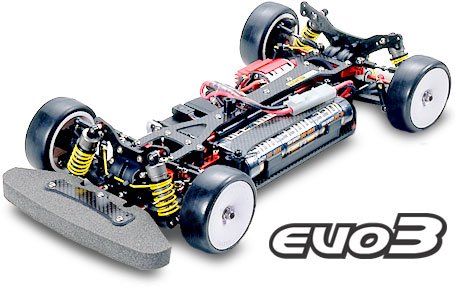

Tamiya 49283 - 1/10 RC TB Evo.3 Surikarn Ltd. - Limited Edition - TB Evolution III Chassis  [49283]

Tamiya is proud to provide the TB Evolution III that allowed Surikarn Chaidejsuriya to take the victory both in the Modified Class together with inventory Class through the Thailand International Touring automobile Championship that happened final February. This restricted edition kit is released to celebrate these great victories and supply you with champion course performance. TB Evolution III Surikarn Limited framework employs numerous specially created components and option components. A pure racer just for you! When the highest amount of R/C framework development gets combined with the choice and specifically created components employed by the greatest R/C racer on the planet, the result is nothing less than excellence. It features a 3mm thick reduced deck (Standard Evo. III features 2.5mm thick reduced deck) to generate a lower center of gravity (lower balance). Red anodized components enhance the machine's "hot" appears.

Presenting Surikarn Style

• Red anodized aluminum components
• Titan hex screws and titan turnbuckle shafts
• Rubber sealed ball bearings
• 3 mm thick lower deck
• Reinforced diff. joint with rear lightweight universal shafts
• SOREX tires (36R)
• Newly designed aluminum top supply mount
• Newly designed front/rear unique damper stay
• Newly designed carbon dish for one-way product
• Evo III unique stickers
• A brand new packaging

Basic Specifications

• Total size: 365mm
• Total width: 190mm
• Clearance: 5mm, Weight Fully-Equipped: 1,440g (dimension includes TP-S3003 servo, CPR Unit and RC2400SP Battery with RS-540 engine)
• Wheelbase: 259mm
• Tread F/R: 163mm
• Chassis Material: Carbon
• Chassis Shape: Double-Deck Frame
• Steering Tie Rod: 3 part
• Suspension: Front and Rear Double Wishbone
• Caster Angle-F/R: 4deg/0deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: adjustable/2 to 3.5deg
• Skid angle-F/R: both 0deg (adjustable)
• Damper: F/R TRF Super Minimal Friction Dampers
• Drive train: Shaft-Driven 4WD
• Gear Ratio: 7.34:1, 6.88:1 (Standard in kit)
• Diff. gear system: F/R One-Way/Ball-Diff
• Speed Controller: Electronic Speed Controller
• Tire Width: F/R both 24mm
• Tire Diameter: F/R both 64mm
• Tread Pattern: F/R Slicks.

Required Products (not included)

• Body
• RS-540 Type Motor
• R/C device: Adspec GT-I or 2-channel R/C system with electronic rate controler
• Battery: Tamiya 7.2V Racing Pack or comparable
