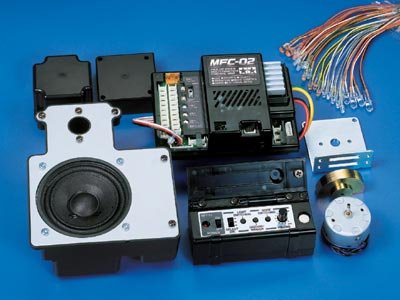

Tamiya 53957 - RC Multi-Function Control Unit - Pick-Up Truck (MFC-02) OP-957  [53957]

Released in 2006, the 1/10 R/C 4x4 3-Speed High-Lift was extremely well-received by fans throughout the world. Aided by the release of this brand new Multi-Function device, Tamiya kicks up the realism another notch with light, sound, and vibration effects all controllable via a 4-channel transmitter (offered individually) to make all 3-Speed Highlifts even more impressive!!!

LIGHT EFFECTS

10 types of high-brightness LEDs (including optional LEDs) for an overall total of up to 33 lights are managed to depict various realistic light actions while driving. They could also light in pre-set patterns during Demo Mode for an excellent rack display.

SOUND FILES

Onboard presenter device can emit an overall total of 24 different sound files (including optional noises) that were all digitally recorded from real vehicles, like the operating sounds for both a large imposing V8 engine and a spunky small-displacement turbo engine.

SPECIAL OPERATIONS Up to 16 various actions are controlled via a 4-channel transmitter (sold individually) to give the feeling of driving an actual pick-up truck.

MORE FEATURES

• Vibration Function Unit recreates rumble movements together with motor noises.
• ESC enables practical low-speed running.
• Speaker device not merely emits the sound files stated earlier, it has an input terminal to enable experience of outside audio sources such as for example MP3 and CD players for music playback.
• 3 convenient modes of procedure: R/C mode with Multi-Function results down, R/C mode with Multi-Function effects on (4 varieties), and Demo Mode for static display with light and noise effects just (4 varieties).
• Detailed and user-friendly set-up guide and tutorials to help users with appropriate procedure of most the MFC-02 features (please start to see the next web page for some initial sample diagrams).

SEPARATELY FORCED ITEMS

• 4-channel self-neutral stick-type transmitter built with slide trim and self-neutral feature for maximum performance. (Futaba Attack 4WD recommended)
  Tamiya recommends the Futaba Attack 4WD (T4VWD/FP-R114H) because it has a self- neutral feature. Other 4-channel transmitters made by Futaba, JR Propo, and Acoms can be utilized using the MFC-02, but operations may possibly not be since smooth because they may lack the self-neutral feature and connectors may possibly not be appropriate. For transmitters from other manufacturers, whilst it could be feasible to use them, please be aware that there may be circumstances where they could never be able to operate all of the MFC-02's functions.
• 4-channel receiver.
• 2 servos.

SPECIAL RECORDS

• Don't use along with ITEM# 53909 TLU-01 or ITEM# 53937 TLU-02.
• MFC-02 is compatible with all the Type 540 engine only. Please avoid installing other engines.
• MFC-02 can not be operated with 2-channel or 3-channel transmitters/receivers.
• MFC-02 is not suitable for PCM kind receivers, multi-channel receivers, and older receivers created by Sanwa (identifiable by their black colored instances).
• Perhaps not Compatible with 2.4ghz systems or others that have digital trim
