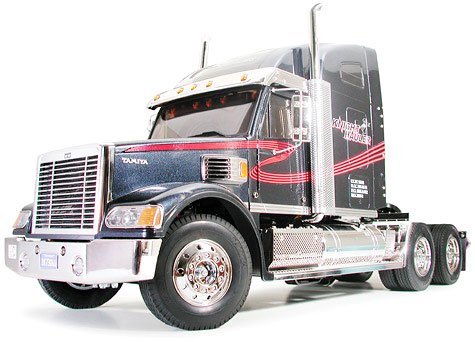

Concerning the Tractor Truck Knight Hauler This 1/14 scale R/C Tractor Trucks Item features an originally created vehicle human anatomy. Hood, large roof spoiler, inside, and lights (clear orange components), that have been artistically rendered in exquisite information. Grill, tank, exhaust and steps have already been beautifully rendered with metal plated components. Kit includes stickers and 540 engine. 7.2V battery power and R/C system can be bought separately.
Concerning the Tractor Truck Multi-Function Control Unit Tamiya gifts amazing sound and action alternatives for the Tractor Truck Knight Hauler or any 1/14 scale R/C Tractor Vehicle utilizing the R/C Tractor Truck Multi-Function Control product (Item #56511). This system, whenever mounted on the truck is situated inside the cabin with speaker to the front and also the MFC-01 product towards the backside. The control device is installed inside the remaining device box for comfortable access. The Multi-Function Control Unit is sold separately.
A 4-channel R/C system activates all functions Simply by using your transmitter sticks and the trims it is possible to get a handle on the truck motions (forward/backward running and turns), horn, motorized help legs (Item #56505) (offered separately), headlights, position lights, roof lamps and rate indicators. You can trigger the back lamp, tail lamps and blinkers/hazard lamps as well as motor revving.
20 LED for 9 light functions All lights used with the multi function product are high brightness kind LED. They have been used to replicate headlights, place lights, roof lamps, speed indicators, fog lamps, right back lamp, tail lights and blinkers/hazard lamps, which can be turned on/off aided by the transmitter.
| White LED | Headlights, Fog lights, place lights, and straight back lamp | | Orange LED | Roof lights, Blinkers, Hazard lamps, and Speed indicators | | Red LED | Tail lamps |
|
24 Radio-Controlled Sound Effects The multi function device offers 24 radio-controlled noises which were digitally recorded from an actual tractor truck. The R/C Tractor Truck Multi-Function Control Unit is effective at the following functions:
| Engine | Motor starter, Idling, Revving, Running with semi-trailer, operating without semi-trailer, and motor stop | | Air | Air dryer, Up-shifting, Down-shifting, Air discharging 1, Air discharging 2, Short horn, constant horn, and Parking brake | | Electric Sounds | Alarm 1, Alarm 2, Turn signal 1, Turn signal 2, Hazard, and Back alarm | | Exhaust braking system | Exhaust brake | | Brake System | Brakes | | Coupler | Coupler accessory, Coupler detachment |
|
The Knight Hauler could be equipped with 4 various semi-trailers (available separately) Tamiya proposes 4 different semi-trailers that may be adapted on Knight Hauler: A boxcar semi-trailer, a tank-trailer, a flatbed semi-trailer and a pole-trailer. When along with the Knight Hauler, you have a 1m long practical truck. While using the multi function device, which contains an electric speed controller, you'll run your vehicle really slowly. With sound and light results, you can expect to swear this will be a real vehicle.
Knight Hauler Video w/ MFU
Specs
- Total size: 630mm
- Total width: 186mm
- Clearance: 19mm
- Body weight Fully-Equipped: about 3,1kg (without multi function unit)
- Wheelbase: 476mm
- Tread F/R: 156/138mm
- Chassis Material: Aluminum and polycarbonate plastic
- Chassis Shape: Ladder Type Frame
- Suspension: Front and Rear Rigid Axle w/Metal Leaf Springs
- Caster Angle-F/R: 0deg/0deg
- Camber Angle-F/R: 0deg/0deg
- Toe Angle-F/R: 0deg/0deg
- Damper: F/R Aluminum Dummy Dampers
- Drive train: 2-axle
- Transmission: 3-gear transmission (gear shifting operated via transmitter)
- Gear Ratio: first gear 32.49:1, 2nd gear 17.76:1, third gear 10.66:1
- Diff. gear system: F/R Bevel Gear Diff
- Engine: RS540 (standard within the kit)
- Tire Width: F/R both 22mm
- Tire Diameter: F/R both 88mm
- Requires eight R6/AA/UM3 batteries for transmitter (offered separately).
