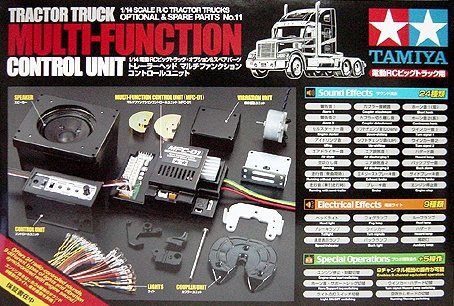

Tamiya 56511 - 1/14 R/C Tractor Truck Multi-Function Control Unit MFC-01 (MFU)  [56511]

Has 24 radio-controlled noises, 9 different types of lights and vibration synchronized with motor sound.The Trinity of appears, Lights, and Vibration produces Maximum Authenticity.

Electric impact: (20 LED for 9 light functions)

All lamps used because of the multi function device are high brightness type LED. They truly are used to replicate headlights, place lamps, roof lamps, speed indicators, fog lamps, back lamp, end lamps and blinkers/hazard lamps, which may be turned on/off with the transmitter.

• Head light
• Fog lamp
• Roof lamp
• Speed indicator
• Turn signals
• Hazard lamp
• Tail lamp
• Straight back lamp
• Aux light

Sound Effect: (24 Radio-Controlled Sound Clips)

• Alarm
• Engine beginner
• Idling
• Air dryer
• Revving
• Operating without semi-trailer
• Running with semi-trailer
• Coupler attachment Coupler detachment
• Down-shifting
• Up-shifting
• Air discharging 1
• Air discharging 2
• Exhaust brake
• Braking System
• Quick horn
• Constant horn
• Turn signal 1
• Turn sign 2
• Hazard
• Straight back alarm
• Parking brake
• Engine end
• Alarm 2

Optional Parts Usable At The Same Time:

• Item: 56502 Semi-trailer Light Set
• Item: 56505 Motorized Help Legs
• Note:Tractor Vehicle Electric Device Set(Item: 56501),Tractor Truck Sound Effect Set,and Components incorporated into these products may not be uesd with or replaced with this device.

Notes:

• Always use 540 Type engine a part of kit otherwise the electronic speed controller into the MFC-01 product may malfunction.
• With chassis, right back lamp, front and rear auxiliary lights, and/or rate indicator can't be switched on.
• Some chassis require extra holes for installation. Make use of 4mm pin vise for making holes.

Required RC System

• 4 Channel transmitter (self-neutral stick type with 4 channel trims), a 4ch-receiver and 2 servos (3 servos are needed when setting up 56505 Motorized Help Feet). No electrical speed controller is necessary as MFC-01 Unit covers that function.Receiver battery pack (6V) isn't needed.
• Transmitter which feature click-touch type trims might cause difficulty whenever using with tamiya Multi-Function devices.
• Some connectors may not be compatible.Modification might be needed.
• Wheel trigger kind transmitter or one without trims shouldn't be used at all.
• PCM receiver , multi-channel receiver plus the older SANWA receivers (with black colored case) aren't designed for this kit.
• When installing MFC-01 Unit into traditional truck models, servo expansion cables can be required. Utilize expansion cables (sold individually) to ensure general cable size becomesmore than 50cm
