Tamiya 57059 - 1/10 R/C Ford F-350 High-Lift Full Operation Kit  [57059]

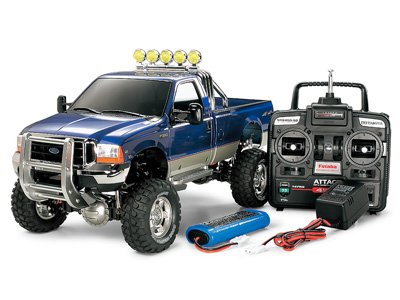

Electric R/C put up kit of one among many extremely representative US pick-up vehicles, the Ford F-350. The model features practical ladder framework, 3-speed transmission and shaft drive 4WD system. Definitely step by step injection molded human anatomy and large diameter tires boost the trendy high-ground-clearance appearance. Initial marking stickers add to the truck's basic realism.

METAL & METAL PLATED ELEMENTS

• An abundance of metal parts particularly ladder framework, under guard, front side guard, leaf springs and aluminum friction dampers are included.
• Roll club, road light, front grille, front/rear bumper, side-step, diff guard, tires and muffler function metal-plated finish.

ADD LED LIGHTS (SOLD SEPERATELY) usage Multi-Function device to depict performing headlights, end lights and go club lights even for more amazing realism.

MULTI FUNCTION UNIT This Multi Function unit brings more satisfaction towards procedure concerning the R/C Ford F350. Featuring realistic noise impacts recorded from genuine cars, controllable Light-emitting Diode lights alongside movement effects, this product will significantly expand the potential of your Ford F350.

LADDER FRAME Durable and practical ladder frame comprises of metal channel and resin cross member.

PROPELLER SHAFTS F/R propeller shafts function universal joint to effectively move power in the event suspension system is upgrading and down.

FAST BATTERY HOLDER

• Battery held in low place for exceptional fat balance and security.
• Comfortable access owner allows operating battery to be exchanged without the removal of human anatomy.

4WS STEERING ROD

• 4 wheel steering is enabled with the addition of kit provided rear axle anxiety pole.
• 4-wheel steering enables also tighter switching radius, perfect when working with truck inside or in limited space.

WHEELS & TIRES

• Newly designed monster vehicle tires feature lug pattern fitted to driving on rough surfaces.
• Apply concrete to tires and tires when operating on rough terrain.
• Exhausted wheel hubs could possibly be changed with #53056 Pin kind Wheel Adapter.

3-SPEED TRANSMISSION

Newly created 3-speed transmission provides
smooth low price running, and permits gear
changing while running.

Includes slipper clutch as standard part to protect
gears during tough off road operating

DIFFERENTIAL GEAR Durable resin gear situation with built-in die-cast differential gear.

DIFFERENTIAL LOCK

• Differential lock, required for driving on rough roadways, can be simply enabled by simply eliminating F/R diff instance covers and getting reduce screw pins.
• Through differential lock, drive energy is transmitted even in the big event tires using one part are not grounded.

LEAF SPRING SUSPENSION F/R suspension with friction dampers enables tension modification by altering wide range of leaf springs.

FRICTION DAMPERS

• Features red anodized aluminum cylinder. Damping effect is modified by utilizing separately available Friction Damper Grease and adding o-rings. Select according to ground conditions and leaf springtime volume.
• Standard: normal operating Default settings.
• Soft: low-speed, high hold running usage 2 leaf springs and adjust stress utilizing damper oil (soft) #53174.
• Tricky: stable and high-speed running usage 5 leaf springs and use damper oil (medium) #53175 or (difficult) #53176.

BEARINGS

• Kit includes a complete of 42pcs of steel bearings(bushings) (35pcs x 1150, 4pcs x 1260, 2pcs x 850 size steel and 1pc of 1050 size ball bearings).
• Steel bearings need regular application of grease to keep performance. Separately available ball bearings cannot need this treatment, and therefore are suggested.

MOTOR

• This kit was made become utilized just with pre-supplied sort 540 motor and pinion gear.

NEEDED ITEMS (NOT INCLUDED) BROADCAST CONTROL DEVICE TRANSMITTER, RECEIVER, ELECTRONIC SPEED CONTROLLER (ESC), STEERING SERVO & SHIFT SERVO

• Needs 4-channel, 2-servo digital proportional R/C product with electronic speed controller with variable ahead and reverse function.
• Usage of Futaba Attack 4WD (4ch) or stick nice transmitter with slip trim is advised to execute gear modification while operating. The Airtronics VG400/600 model radios are capable because they function fall trim and self fundamental control sticks.
• 2ch R/C product may possibly not be used since it cannot shift gears.
• PCM kind receiver might not be utilized as it might cause radio disturbance when using with individually available Multi Function Device.

• Make usage of high power sort ESC with reverse function (optimum continuous current: forward 120A, reverse 60A, FET legislation).
• A high-spec ESC is specially suggested whenever operating on rough area.
• TEU-302BK Electronic Speed Controller (PRODUCT 45028) is recommended.
• Not for use with TEU-101BK Electronic Speed Controller.

• While standard type steering servo is sufficient, high torque servo is recommended whenever running on rough terrain.
• Using ITEM 50473 Tall Torque Servo Saver White or ITEM 51000 tall Torque Servo Saver Ebony will further enhance effectiveness.
• Avoid little, big or high-speed servo.

• Tamiya 7.2V running battery power (ITEM TA201)
• Eight R6/AA/UM3 batteries for transmitter.

Battery and broadcast information 1. Any Tamiya 7.2V battery pack allows you to power the car. Various milliampere-hour (mAh) values may impact the quantity of operating time enabled by the battery pack. Including, 7.2V 1400SP battery pack should ordinarily enable ten to fifteen mins of operating time. However, please be aware that actual operating time may decrease as a result of extended complete throttle and also other high energy running.

2. the next 4-channel R/C device (self-neutral stick type transmitter/receiver) is recommended for optimum procedure: FUTABA ATTACK 4WD (T4VWD/FP-R114H) The Airtronics VG400/600 model radios will also be capable as they work slip trim and self basic control sticks.

Remember that making use of an R/C unit without a self-neutral system may increase difficulty of procedure. Without self-neutraling sites (springtime loaded sticks) the operator is kept to target the throttle and steering minus the help of self-centering springs, which makes driving the car harder than it demands become.

4-channel wheel-type transmitters may be used with ITEM 58372, but won't be in a situation to be used with kit loaded with Multi-Function product (become released).

PPM receivers are recommended for use with this kit.
PCM receivers are not appropriate for kit designed with Multi-Function device.

Other manufacturers' radio control products of 4 or more channels can be used, but may well not realize the most functioning using this kit.
Suggested using comparable R/C unit as used with ITEM 56511 Tractor Truck Multi-Function Control

ELECTRICAL KITS NEED: (unless advertised in a different way above)

• Broadcast: 2-Channel with servo(s)
• Battery: 6-cell flat with standard Tamiya connector
• Charger: AC/DC timed or top for 6-cell battery
• Paint: PS for Polycarbonate/TS for ABS
• Misc. Products: Building and track gear
