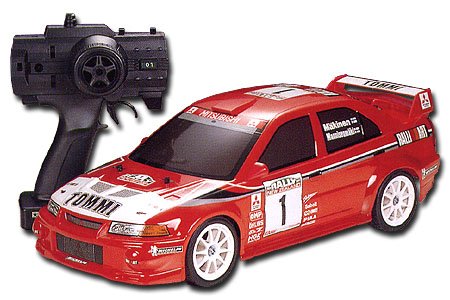

Tamiya 57706 - 1/10 XB Mitsubishi Lancer Evolution VI WR  [57706]

The Lancer Evolution VI is built on a properly designed TL-01 chassis that includes shaft-driven full-time 4WD system loaded with quality differential gears in front/rear sealed gearboxes. This system is fitted on a lightweight yet durable monocoque frame. Responsive double wishbone suspension system system with four friction dampers guarantees a smooth ride even over rough areas.

Basic Specifications

• Chassis Type: TL-01
• Scale: 1/10
• Length: 17.40 inches (442mm)
• Width: 7.24 ins (184mm)
• Wheelbase: 10.12 inches (257mm)
• Front Tread: 6.18 ins (257mm)
• back Tread: 6.18 ins (257mm)
• body weight: 2.31 pounds. (1048g)
• Chassis: ABS Monocoque
• Suspension: 4 Wheel Independent
• Damper Type: synthetic coil over friction
• Drive Train: 4WD shaft drive
• Gear Ratio: 7:96:1
• Differential Gear System F/R: 3-Bevel Diff
• Differential kind: Bevel Gear
• Engine: Electrical 540
• Transmission Type: Shaft drive mid-ship full-time 4WD
• Steering Tie Rod: 2 component
• Speed Controller: 3 Step F&R Mechanical
• Wheels & Tires: Chrome 5 spoke/radial
• Tire Diameter F/R: both 64mm
• Tire Width F/R: both 27mm
• physique: Polycarbonate Cut & Printed
• broadcast: 2-Channel Pistol (included)
• Power supply: 7.2V battery pack (perhaps not included)

Hop Up Alternatives

• 53467 TL-01 & FF02 longer suspension system supply set
• 53440 On-road tuned hard springtime set / 53418 -
• TL-01 Universal shaft (2pc.)
• 53347 3x3mm springtime set screws (10pc.)
• 53346 TL-01/M03 fast launch battery pack holder
• 53345 TL-01/M03 toe-in backside upright
• 53342 TL-01 speed-tuned gear set
• 53333 Touring vehicle tuned springtime set (short)
• 53324 TL-01 stabilizer set
• 53323 TL-01 carbon propeller shaft
• 53322 TL-01 hollow carbon gear shaft
• 53303 TL-01 adjustable upper arm set
• 53301 TL-01 metal suspension system shaft set
• 53300 TL-01 turnbuckle tie-rod set
• 53295 Tire inner foam
• 53292 TL-01 ball bearing set
• 53280 TA03 super low friction damper set (4pc.)
• 53267 TA03 ball differential
• 53163 On-road tuned spring set
• 53162 4mm anodized aluminum flanged lock nuts (black)
• 53161 4mm anodized aluminum flanged lock nuts (gold)
• 53160 4mm anodized aluminum flanged lock peanuts (red)
• 53159 4mm anodized aluminum flanged lock nuts (blue)
• 53144 Touring & rally car bushing & ball connector set
• 53141 4WD touring & rally car lightweight master pins
• 53095 3x10mm titanium tapping screw (10pc.)
• 53056 Pin kind wheel adapter / 50357 - 22T, 23T AV pinion gear set (just the 23T gear in this set works utilizing the TL-01)
• 50356 20T, 21T AV pinion gear set (just the 21T gear is compatible utilizing the TL-01)
