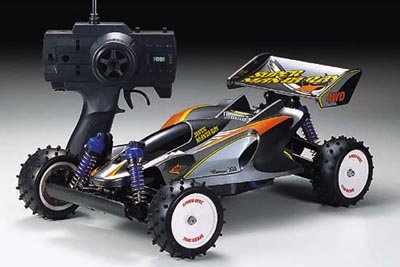

Tamiya presents this pre-assembled 1/10 Scale handheld remote control Buggy. The Super Manta Ray's dependable 4WD-shaft drive, 4-wheel double wishbone suspension, and spiked tires make for a machine effective at taking on the hardest of off-road courses. The handheld remote control system comes pre-installed and pre-adjusted with a wheel and trigger-type transmitter. Batteries and charger available separately. (Batteries and charger might included in some countries. Please contact your local Tamiya representative for details.) All you need to complete is open the container and grab the transmitter- now you are ready for a few severe R/C action!
The polycarbonate human body comes pre-paintedThe shock-resistant, lightweight polycarbonate human anatomy comes pre-painted in weapon metallic with stickers already attached. Lettering on white meal wheels is also pre-printed.
Monocoque Type brand new DF-01 ChassisNewly designed ABS monocoque frame is lightweight and shock-resistant. The Super Manta Ray employs a laterally installed motor that effortlessly transmits power via its 4WD mid-ship shaft drive.
automobile Body Design Maximizes Resistance to DebrisA polycarbonate upper-cover affixed toward monocoque type framework prevents small rocks from getting lodged inside interior components. Elimination of assessment address enables simple upkeep of crystal and speed controller.
Included PartsWheel and trigger-type Adspec GP transmitter especially designed for handheld remote control operation. Batteries and charger available individually. (Batteries and charger might be a part of some nations. Please contact your local Tamiya representative for details.) Transmitter requires eight R6/AA/UM3 batteries.
Optional components Available for Increased EfficiencyThe Expert Built Super Manta Ray is built in the same fashion as an R/C installation kit. Parts might be disassembled and re-assembled. The kit is equipped with a typical 3-step speed controller that can be changed because of the Tamiya CPR unit. High-power engine, ball bearings, and wheel dampers may be included with enhance performance. As much as 6 split devices can run at the same time provided that various transmitter crystals are used.
fundamental Specifications
- Chassis Type: DF-01
- Scale: 1/10
- Length: 15.35 ins (390mm)
- Width: 9.84 ins (250mm)
- Wheelbase: 10.63 inches (270mm)
- Front Tread: 8.15 ins (207mm)
- back Tread: 8.15 ins (207mm)
- Weight: 3.57 lbs. (1620g)
- Chassis: Monocoque
- Suspension: 4 wheel independent
- Damper Type: Plastic coil over friction
- Drive Train: 4WD shaft drive
- Gear Ratio: 9.49:1
- Differential Type: Bevel Gear
- motor: Electrical 540
- Speed Controller: 3 Step F&R Mechanical
- Wheels & Tires: Dish/Pin Spike
- physical stature: Polycarbonate Cut & Printed
- Diff. gear system F/R: 3-Bevel Diff
- Tire width F/R: both 40mm
- Tire diameter F/R: both 84mm
- Tread pattern F/R: Pin Spike
- Power supply: 7.2V battery pack (not included)
