Tamiya 58243 - 1/10 TA03R-S TRF Special Chassis [58243]

Price:

AUD$453.49

Brand:

Tamiya

Model:

58243

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category

Write a review

alt="Tamiya 58243 - 1/10 TA03R-S TRF Special Chassis" title="Tamiya 58243 - 1/10 TA03R-S TRF Special Chassis"

Description

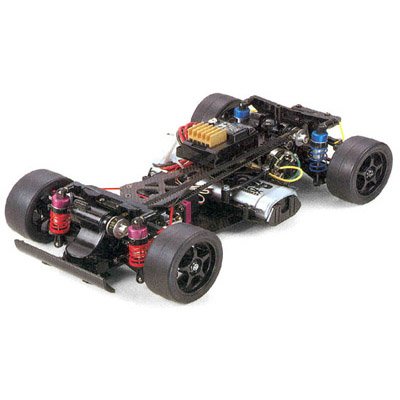

Concerning the Model A new TRF Chassis addition towards 1/10 electric touring automobile TA03 series, which is a favorite among R/C fans. The TA03R-S TRF Unique Chassis Kit features a midship mounted motor for fast maneuvering and 28 option components for enhanced performance. Lightweight, rigid dual deck framework kit composed of perforated 2.5mm dense carbon dietary fiber main chassis and 2mm dense carbon fiber upper deck. Efficient belt driven 4wd framework with four wheel separate double wishbone suspension system, full bearings and many other race-tested option components. Responsive framework satisfies the strict requirements of experienced drivers. Super Low Friction Dampers, Universal Shafts and a number of specially colored aluminum parts create the special kit image.

Fundamental Requirements

Overall Length= 354mm
General Width= 192mm
Clearance= 9mm
Weight Fully Equipped= 1400g (Measurement includesTP-S3003 servo, CPR device and 1700SP Battery. Body not included.
Wheelbase= 237mm
Tread F/R= 157mm/165mm
Chassis Material= 2.5mm thick Carbon Fiber+2.0mm dense Carbon Fiber
Chassis Shape= Double Deck
Steering Tie Rod= 3 part
Suspension= Front and Back Double Wishbone
Caster Angle-F/R=8/3
Camber Angle-F/R=1.5/1.5
Toe Angle-F/R=Variable/1.5
Damper= F/R Super Low Friction Dampers
Transmission Type=Belt Driven 4WD
Gear Ratio=7.34:1
Differential=F/R One Way/Ball Differential
Recommended Speed Controller: Electronic Speed Controller
Tire Width/Diameter=27/65mm
Tread Pattern=Front and rear Reinforced Racing Slicks Type A
Tire Material=Synthetic Rubber

Necessary Items (Available Individually)

Body: 1/10 Touring Car Body (50695 Taisan Starcard Porsche 911GT2 and 50747 Porsche 911GT1)
R/C Unit: Adspec GT-I or 2-channel R/C product with electronic speed control
Motor: RS540 course
Battery: Tamiya 7.2V Racing Pack

ELECTRIC KITS REQUIRE: (unless reported differently above)

Radio: 2-Channel with servo(s)
Battery: 6-cell flat with standard Tamiya connector
Charger: AC/DC timed or top for 6-cell battery pack
Paint: PS for Polycarbonate/TS for ABS
Misc. Products: Building and track equipment
