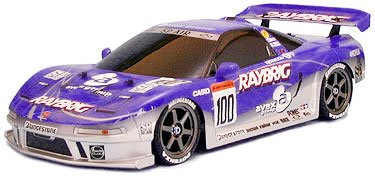

NSX racers are dominating the 2000 Japanese GT Championships (JGTC). In the group, the most popular Raybrig NSX machines are displaying a blue and gunmetal body. Kit replicates the appealing car with competitive electric TB-01 framework. This version of TB-01 is made for On path Racing and features lightweight elements including drive train.
Longitudinally mounted motor/Shaft drive 4WD Chassis Kit incorporates TB-01 Chassis which does extremely efficient energy transfer by longitudinally motor mounting and shaft drive 4WD. The rugged chassis is composed of bath tub type primary framework and top framework. Another feature is its low center of gravity by the flat mounting of RC system and battery pack. This structure plays a role in stable running.
4 Wheel Independent Suspension with Oil Dampers Double wishbone suspension adopts oil dampers for smooth impact moderation. Kit is sold with one piece, 6 spoke tires and pneumatic slick tires.
Lightweight Elements For better on-road performance, model incorporates newly developed aluminum propeller shaft and lightweight band gears. Owing to these improvements, the chassis car weighs 130g lighter compared to the original rally version, useful for the RC Mitsubishi Lancer Evolution VI WRC.
Aerodynamic and Realistic Body The sleek human body is replicated with polycarbonate. It really is aerodynamically sensible just like its original counterpart. In addition to sponsor markings, kit includes blue and gunmetal stickers to help relieve the painting of this human body.
Diversity of Hop-up Optional Parts It is crucial to tune your device to many different courses. A diversity of hop-up options and extra components are around for TB-01 framework.
Model Requirements
- General Length: 434mm
- Overall Width: 194mm
- General Height: 120mm
- Body weight Fully Equipped: 1,640g (including TP-S3003 Servo, CPR device and RC2400SP Battery)
- Wheelbase: 257mm
- Tread (front/rear): 155/164mm
- Chassis Material: ABS
- Chassis Type: Bathtub Frame
- Steering Tie Rods: three sections
- Suspension system: front side and rear double wishbone
- Caster Angle (front/rear):10�/0�
- Camber Angle (front/rear): variable
- Toe Angle (front/rear): variable/2�
- Dampers (front/rear): CVA oil dampers
- Drive Train: shaft drive 4WD with longitudinally mounted engine
- Gear Ratio: 7.94:1(9.91- 5.72)
- Diff. Gear System: front and back 3 bevel gear differentials
- Speed Controller: technical rate controller included
- Tire Width (front and rear): 27mm
- Tire Diameter (front/rear): 65mm
- Tread Pattern (front and rear): race slick
- 540 type engine included
Needed Items (Separately Available)
- RC System:Adspec GT-II (standard system for use with kit included mechanical speed controller),or Adspec GT-I (which comes with electronic speed controller), or equivalent 2-channel RC system.
- Battery: Tamiya 7.2V Racing Pack
