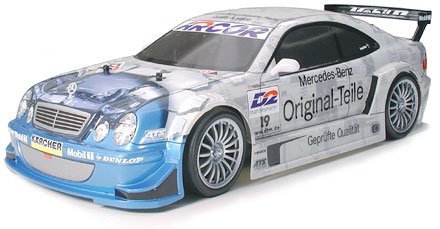

Tamiya 58279 - 1/10 TA04 Mercedes-Benz CLK DTM Original Teile  [58279]

Tamiya presents the superior, recreations form of the popular TA04 framework employed by R/C enthusiasts of ages and degrees of experience. Made to battle, this chassis includes the full ball-bearing set to reduce drive loss and employs adjustable turn buckle shafts. The high efficiency 2 gear 4WD system, the 4-wheel double wishbone suspension, as well as the hardened resin dual deck frame associated with the TA04 are left unchanged. Simply select the human body and motor of one's option and you'll took your first step in to the world of true R/C racing!

Complete Ball-BearingsThe chassis comes with ball bearings not only in the drive shaft, in the steering arms also. This enables for smoother driving and increased durability. Repair is manufactured easier as well.

Built with Turn-Buckle ShaftsThe front and rear upper arms, steering tie rods, and steering linkage all use turn buckle shafts. The size of the shafts is modified without elimination for effortless steering shaft adjustment.

2 Belt 4WDThe TA04-S framework employs a top efficiency 2 belt drive 4WD system with an 83T spur gear. *Motor perhaps not included.

Specifications

• Overall Length: 365mm
• General Width: 184mm
• Clearance: 8mm
• Body weight Fully Equipped: 1,517g (Measurement includes TP-S3003 servo, CPR device and RC2400SP Battery.)
• Wheelbase: 257mm
• Tread F/R: both 162mm
• Chassis Material: ABS/Polycarbonate
• Chassis Shape: Double Deck Frame
• Steering Tie Rod: 3 component
• Suspension: Front and Rear Double Wishbone
• Caster Angle-F/R: 10deg/2deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: adjustable/2deg
• Damper: F/R CVAMiniII
• Transmission Type: 2 Belt Mid-ship Full-time 4WD
• Gear Ratio: 7.08:1 (kit standard)
• Diff. gear system: F/R 3-Bevel Diff
• Recommended Speed Controller: Electronic Speed Controller
• Tire Width: F/R both 26mm
• Tire Diameter: F/R both 64mm
• Tread Pattern: F/R Slicks
