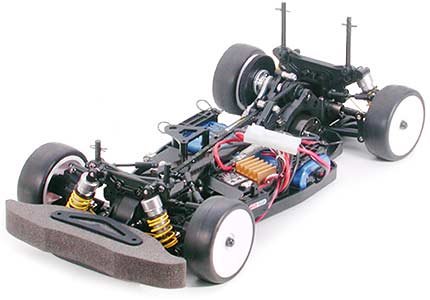

Tamiya 58282 - 1/10 TA04-R Chassis Kit  [58282]

Tamiya 58282 - 1/10 TA04-R Chassis Kit
Price:
AUD$659.54
Brand:
Tamiya
Model:
58282
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category
Write a review
alt="Tamiya 58282 - 1/10 TA04-R Chassis Kit" title="Tamiya 58282 - 1/10 TA04-R Chassis Kit"
alt="Tamiya 58282 - 1/10 TA04-R Chassis Kit" title="Tamiya 58282 - 1/10 TA04-R Chassis Kit"
alt="Tamiya 58282 - 1/10 TA04-R Chassis Kit" title="Tamiya 58282 - 1/10 TA04-R Chassis Kit"

Double-deck frame of framework features carbon reinforced resin reduced deck and full carbon top deck for increased durability. Chassis employs 2-belt 4WD with a complete set of ball bearings plus ball differential gears for maximum drive efficiency. With a full array of option parts and suspension that may be fine-tuned, this R/C framework stays real to pure racing. (motor, battery and speed control maybe not included)

Built for Speed, down to the tires Double wishbone suspension system includes clearance modification procedure and super-efficient wheel dampers. F/R upper hands, steering tie rods, and torque rods feature turnbuckle shafts capable of fine adjustment.
The 04 Module Spur Gear- the Icing regarding dessert 04 module spur gear employs carbon plating to hold gear in place. 45T Pinion gear comes with 128, 120, 112T spur gears. Chassis is sold with aluminum engine heat sink to facilitate effective temperature escape.

2 Belt Drive 4WD- a Recipe for Drive Efficiency
The TA04-R's 2 Belt Drive 4WD system affords minimized friction for optimum racing efficiency.

 Specs

  • Chassis Type: TA04-R
  • Scale: 1/10
  • Overall Length: 355mm
  • Overall Width: 186mm
  • Total Height: 135mm
  • Clearance: 8mm
  • Weight Completely Equipped: 1,425g (Dimension includes TP-S3003 servo, CPR Unit and RC2400SP Battery, without human anatomy.)
  • Wheelbase: 257mm
  • Tread F/R: both 162mm
  • Chassis Material: Carbon/Carbon fibre reinforced nylon
  • Chassis Shape: Double Deck Frame
  • Steering Tie Rod: 3 part
  • Suspension system: Front and Rear Double Wishbone
  • Caster Angle-F/R: 6deg/2deg
  • Camber Angle-F/R: adjustable
  • Toe Angle-F/R: 0 deg. adjustable/4deg
  • Damper: F/R TRF Damper
  • Transmission Type: Belt Mid-ship Full-time 4WD
  • Gear Ratio: 5.69:1 (kit standard)
  • Diff. Gear System: F/R Ball Diff
  • Suggested Speed Controller: Electronic Speed Controller
  • Tire Width: F/R both 24mm
  • Tread Pattern: F/R Slicks
  • Tire Diameter: F/R both 64mm
Optional Components Included
  • Carbon Reinforced Resin Lower Deck
  • TRF Dampers
  • Aluminum Back Bulkhead Beam
  • Aluminum Servo Stay
  • Urethane Bumper
  • Universal Shaft
  • 5mm Aluminum Ball Connector (10 pcs.)
  • Medium-Narrow Reinforced Tires Type A
  • Medium-Narrow Smooth Inner Foam (1 Set)
  • TA04 Ball Differential Device
  • TA04 Aluminum Motor Heat Sink
  • On-Road Tuned Complex Spring Set
  • TA04 Color Stabilizer Set (Front)
  • TA04 Colors Stabilizer Set (Backside)
  • 4mm Intense Lock-Nut & Spacer Set
  • TA04 Aluminum Hub Set For Spur Gear
  • TA04 Rushing Hub Carrier Set
  • TA04 Toe-In Back Uprights
  • TA04 Minimal Friction Belt (Front)
  • TA04 Minimal Friction Belt (Rear)
  • TA04 Carbon Upper Deck
  • Comprehensive Bearing Set
  • *F/R Upper Arm, Steering Rod, Steering Linkage, and Torque Rod all use Turnbuckle Shaft.
ELECTRIC KITS REQUIRE: (unless stated differently above)
  • Broadcast: 2-Channel with servo(s)
  • Battery: 6-cell flat with standard Tamiya connector
  • Charger: AC/DC timed or top for 6-cell battery
  • Paint: PS for Polycarbonate/TS for ABS
  • Misc. Things: Building and track equipment
